DROPW
15W 3500/4000/5000K
- 3 Selectable color temperatures - 3000/4000/5000K_
- Anti-corrosion, die-cast housing_
- Integrated selectable photocell_
- Available in AC-only & battery backup versions_ with integrated test switch
- UL924, DLC 5.1, IP65 Rated
Performance
| Watts | 15W |
| Color Temp | 3500/4000/5000K |
| Lumens | 1740-1814 lm |
| Efficacy | 130.3-138.5 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.11A |
| 208V | 0.07A |
| 240V | 0.06A |
| 277V | 0.06A |
| Input Watts | 13.1-13.4W |
Dimensions
Weight: 3.0 lbs
Technical Specifications
Performance
Product Type

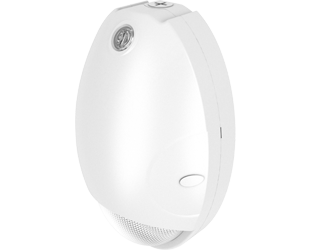

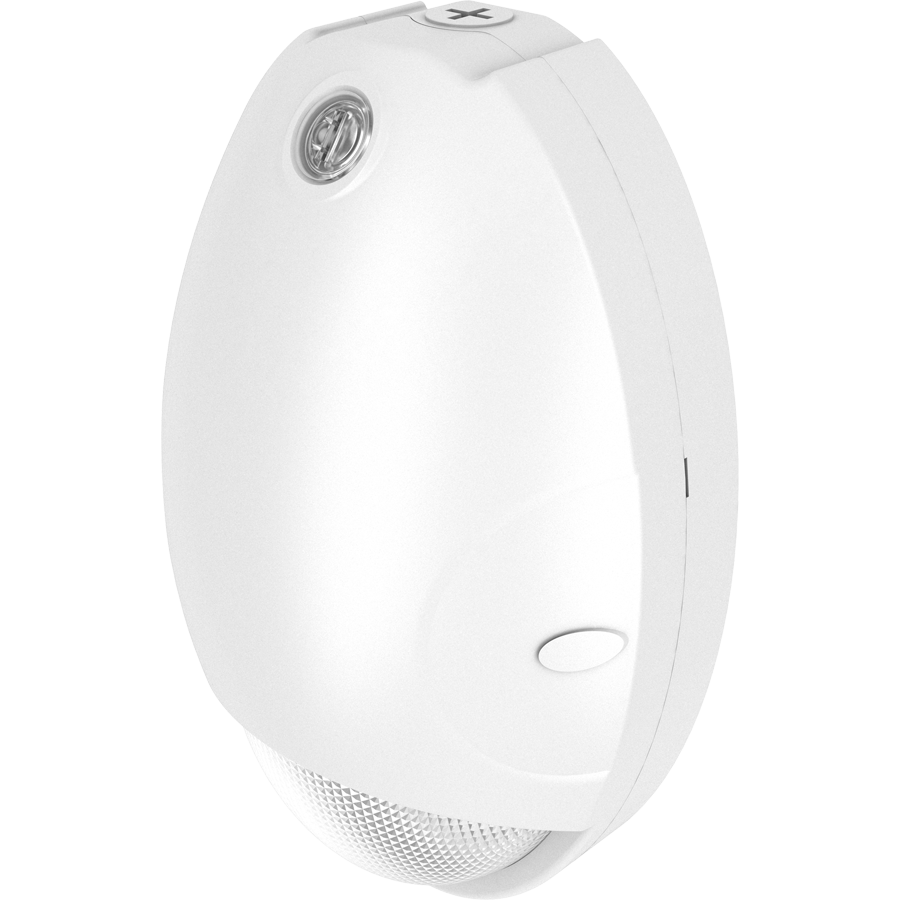

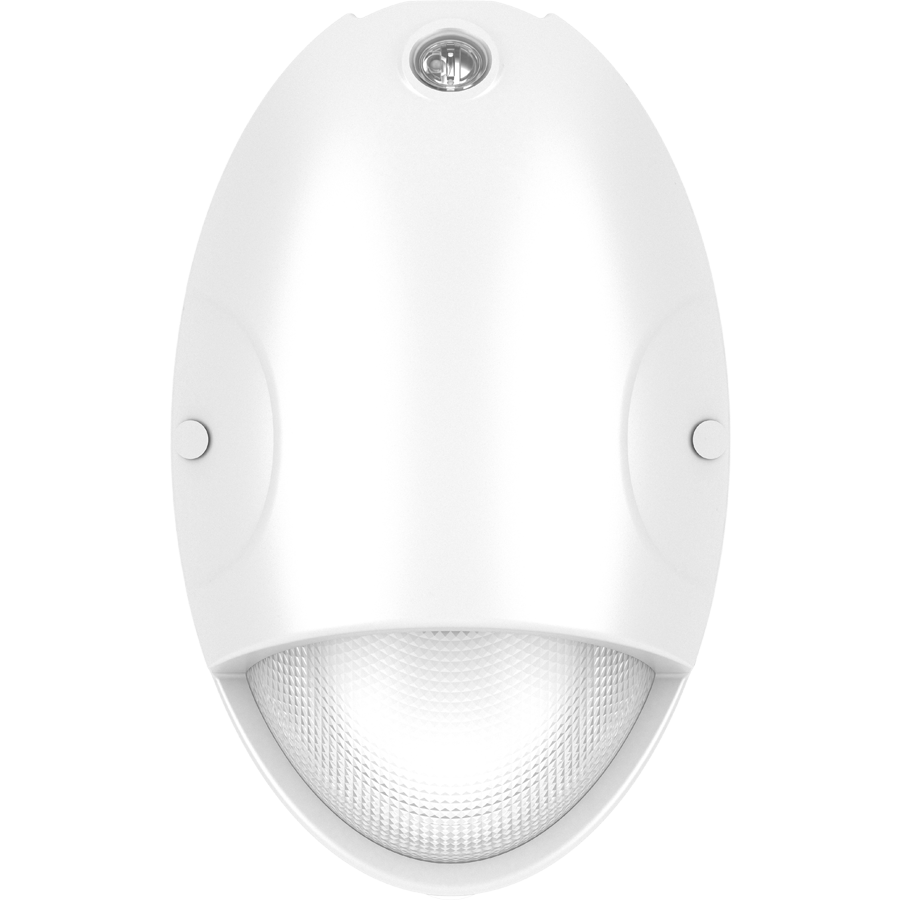

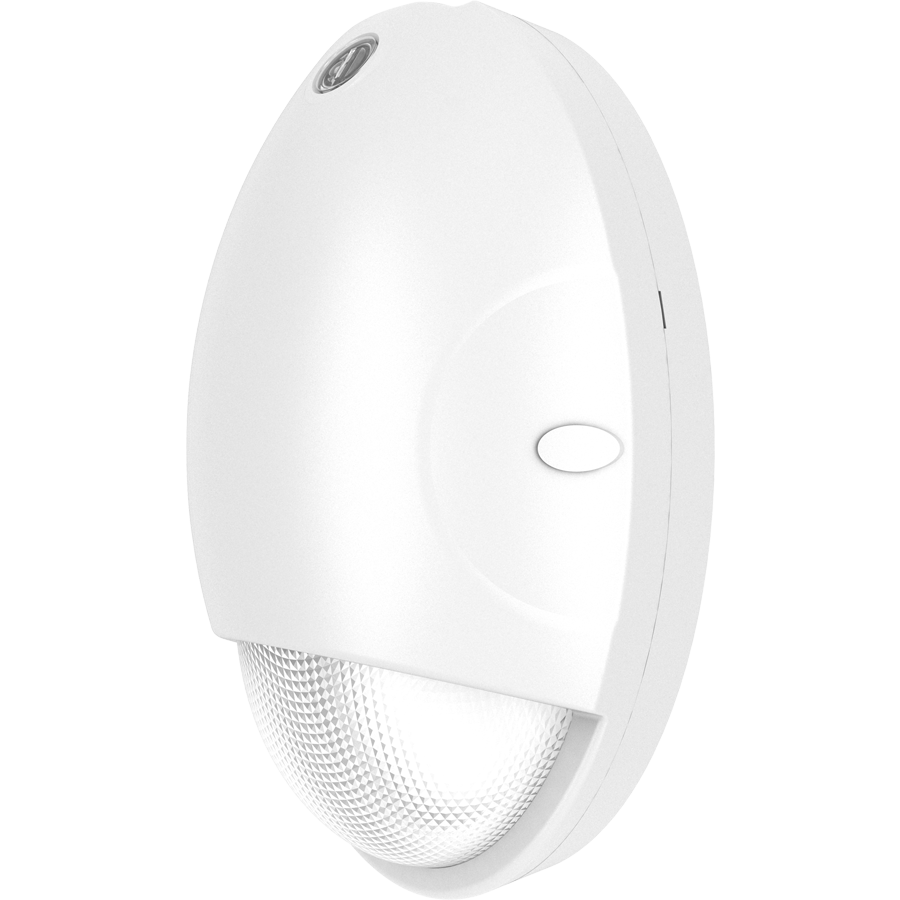

Teardrop Mini Wall Pack
Description
Teardrop style mini wall pack made of anti-corrosion, die-cast housing with selectable photocell. Available in AC-only & battery back up versions_ with integrated test switch.
Wattage Equivalency
50W CFL
Input Wattage
15W
Lumens (Nominal)
1,740/1,814/1,775lm
Lumens (Measured)
1,740lm @ 3500K
1,814lm @ 4000K
1,775lm @ 5000K
1,814lm @ 4000K
1,775lm @ 5000K
Efficacy
130/138/133lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Driver
Constant Current, Class 2 120-277 50/60 Hz; 120V: 130mA; 208V: 75mA; 240V: 65mA; 277V: 60mA
Electrical
THD
<20%
Power Factor
0.9
Dimmable
Yes, dimmable down to 10% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.
Operating Temperature
-40°F to 122°F (-40°C to 50°C)
Flicker
<70%
Surge Protection
2.5 kV
Sensor Settings
Photocell
Yes, selectable dipswitch
LED Characteristics
Beam Angle
100°
Color Temperature
Field adjustable via dip switch 3000/4000/5000K
Color Accuracy (CRI)
>80 CRI
R9 Value
4/6/-2
Color Consistency
<6-step (3500K/5000K) <7-step (4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shi ft no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Wall mounted
Construction
Shape
Round
Finish
White
Enclosure Material
Aluminum
Air Tight
Housing certified Air Tight as per ASTM-E283
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP65
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
