EB124T-3/4
EB124T-3/4 large main
  • Fixture comes complete with built-in junction box
  • Cast aluminum construction with gray polyester powder coat finish
  • Easy relamping with a single thumb screw
  • Factory sealed for easy installation
  • Heat and impact resistant prismatic glass globe
  • Die cast guard
  • Easy field installation
 View Technical Specs
View Price & Availability
Performance
Watts 300W
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan
Type
120V
208V
240V
277V
Input Watts
Dimensions

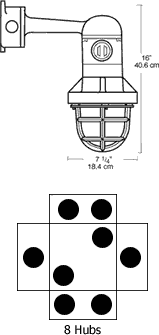

Link to Dimension Drawing

Weight: 15.4 lbs

Technical Specifications
Construction
Housings
Heavy-cast aluminum. Unit withstands 1490 lbs. per square inch hydrostatic pressure.
Globe
Impact and heat resistant clear prismatic design affords excellent light control
Finish
Formulated for high durability and long-lasting color
Reflectors
Heavy gauge aluminum with highly reflective white acrylic finish
Hub Size
3/4"
Hub Count
8
Guard supplied
Weight
15 lb / 6.8 kg.
Electrical
Wiring
Wiring is factory sealed. Inspection hole provides easy access to splice compartment.
Socket
Medium base glazed porcelain. Leads pass through sealing compound that separates lamp chamber from wiring compartment. Heavy gauge nickel plated copper components. Spring loaded center contact.
Other
Refer to the catalog for Class and Division specifications
