X34-150LT-840W/U
X34-150LT-840W/U
- Versatile, general-purpose floodlight
- 7H x 7V NEMA distribution
- 0-10V dimming
- IP65 rating protects against dust and water
- 50,000-Hour LED lifespan
Performance
| Watts | 130W |
| Color Temp | 4000K (Neutral) |
| Lumens | 17,979 lm |
| Efficacy | 133.1 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 1.12A |
| 208V | 0.63A |
| 240V | 0.55A |
| 277V | 0.51A |
| Input Watts | 135.1W |

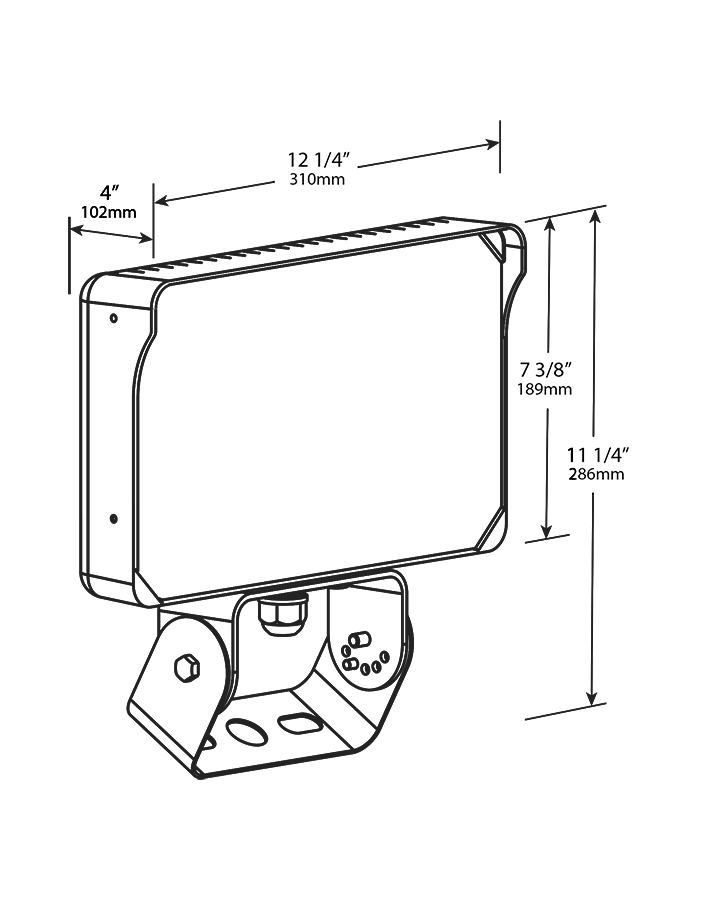

Dimensions
Weight: 10.1 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P0DP569V
DLC Product Code: P0DP569V
Electrical
Driver
Constant Current, 120-277V, 50/60 Hz, 120V: 1.12A, 208V: 0.63A, 240V: 0.55A, 277V: 0.51A
Dimming Driver
Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.
THD
4.36% at 120V, 8.77% at 277V
Power Factor
99.8% at 120V, 95% at 277V
Other
Note
All values are typical (tolerance +/- 10%)
5 Yr Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Optical
NEMA Type
NEMA Beam Spread of 7H x 7V
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
EPA
1.1
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Precision die-cast aluminum
Mounting
Trunnion with tilt angle in 30° increments
Lens
Tempered glass
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Performance
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
