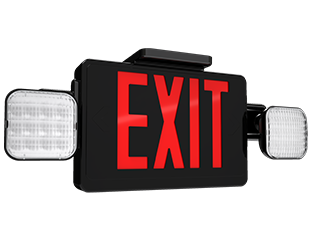

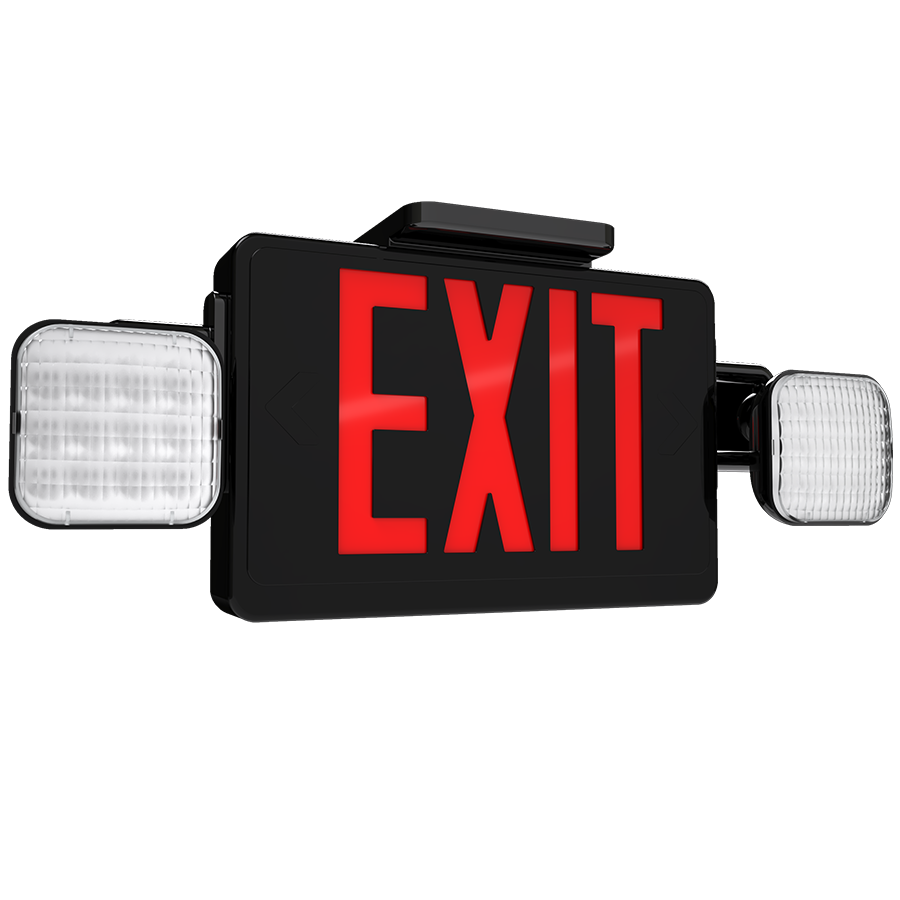

ECOMBO-BHR
ECOMBO-BHR
- Exit & Emergency (Indoor)
- Universal faces with color letters
- Durable thermoplastic design
Dimensions
Weight: 3.0 lbs
Technical Specifications
Performance
Product Type
Exit Combo
Description
Exit sign combo with 90-minute emergency battery backup unit.
Input Power
3.7W @120V; 3.8W @277V
Lumens
65lm
Lumens (per fixture)
130lm
Electrical
Power Factor
0.9
Input Voltage
Dual 120/277 Voltage
Operating Frequency
60Hz
Input Current @ 120V (mA)
40mA
Input Current @ 277V (mA)
20mA
Maximum Output Current (Amps)
0.31A
Maximum Output Wattage
3W
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 104°F (0°C to 40°C)
Emergency Illumination
90 minutes
Battery Backup
Yes
Battery Type
Nickel Cadmium
Battery Voltage
9.6V
Recharge Time Required
24-hours
Battery Operating Temperature
68°C to 104°C (20°F to 40°F)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Storage Shelf Life
3 years before the initial charge. 5 years after initial charge.
Self Diagnostics
Yes
Remote Test Switch
No
Installation
Mounting Method
Back/Top
Mounting Type
Wall/Ceiling Mount
Maximum Mounting Height (ft.)
8.5 ft
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Thermoplastic
Housing Color
Black
Panel Material
Thermoplastic
Panel Color
Black
Letter Color
Red
Number of Faces
Universal Single/Double Face
Arrow Direction
Field installable chevrons included
Sign Format
Stencil
Remote Capacity
Yes
No. of Heads
2-Lamp Heads
Head Shape
Square
Remote Head Power (W)
1.5W
Remote Head Lumens (lm)
65lm
Remote head Lumens (per fixture)
130lm
Remote Heads Replaceable
Yes
Remote Power (W) Capacity
3W
Compliance
Listings
UL924 Listed
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
LEDCXTEU2RBRC-HL
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
EREMOTE-1
Single remote head
EREMOTE-1H
Single remote head high-output
EREMOTE
Double remote head
EREMOTE-H
Double remote head high-output
EREMOTE-1HB
Single remote head high-output, black
EREMOTE-B
Single remote head, black
EREMOTEOUT-1
Single remote head, outdoor
EREMOTEOUT
Double remote head, outdoor
EREMOTEOUT-1H
Single remote head high-output, outdoor
EREMOTEOUT-H
Double remote head high-output, outdoor
EREMOTEOUT-1HB
Single remote head high-output, black, outdoor
EREMOTEOUT-HB
Double remote head high-output, outdoor
Single remote head
EREMOTE-1H
Single remote head high-output
EREMOTE
Double remote head
EREMOTE-H
Double remote head high-output
EREMOTE-1HB
Single remote head high-output, black
EREMOTE-B
Single remote head, black
EREMOTEOUT-1
Single remote head, outdoor
EREMOTEOUT
Double remote head, outdoor
EREMOTEOUT-1H
Single remote head high-output, outdoor
EREMOTEOUT-H
Double remote head high-output, outdoor
EREMOTEOUT-1HB
Single remote head high-output, black, outdoor
EREMOTEOUT-HB
Double remote head high-output, outdoor
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Note
All values are typical (tolerance +/- 10%)
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
