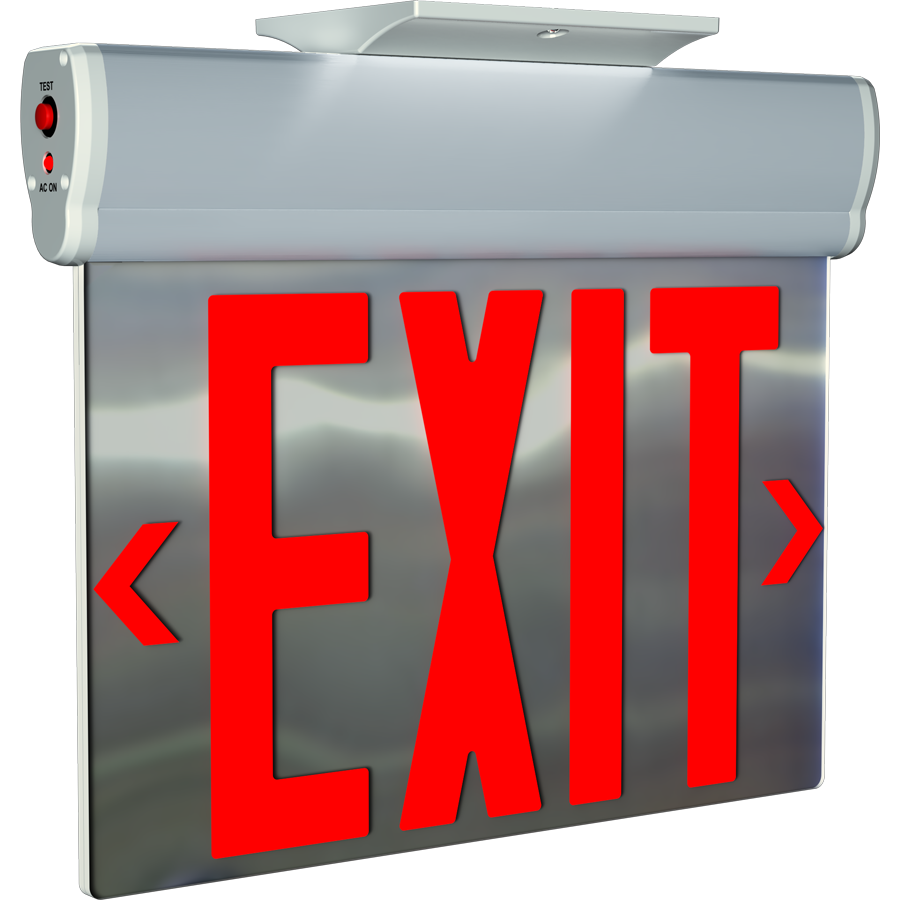

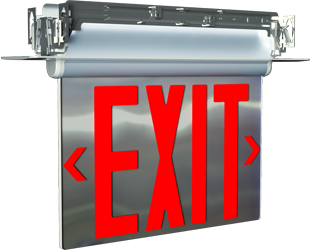

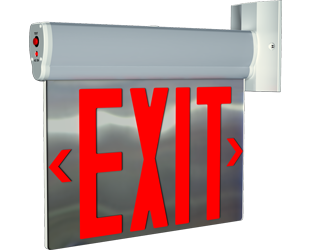

ELXNYC-MP

Double-face edge-lit exit sign with mirrored acrylic panel

NYC-compliant brushed aluminum housing

Red letters, 8" high with 1" stroke

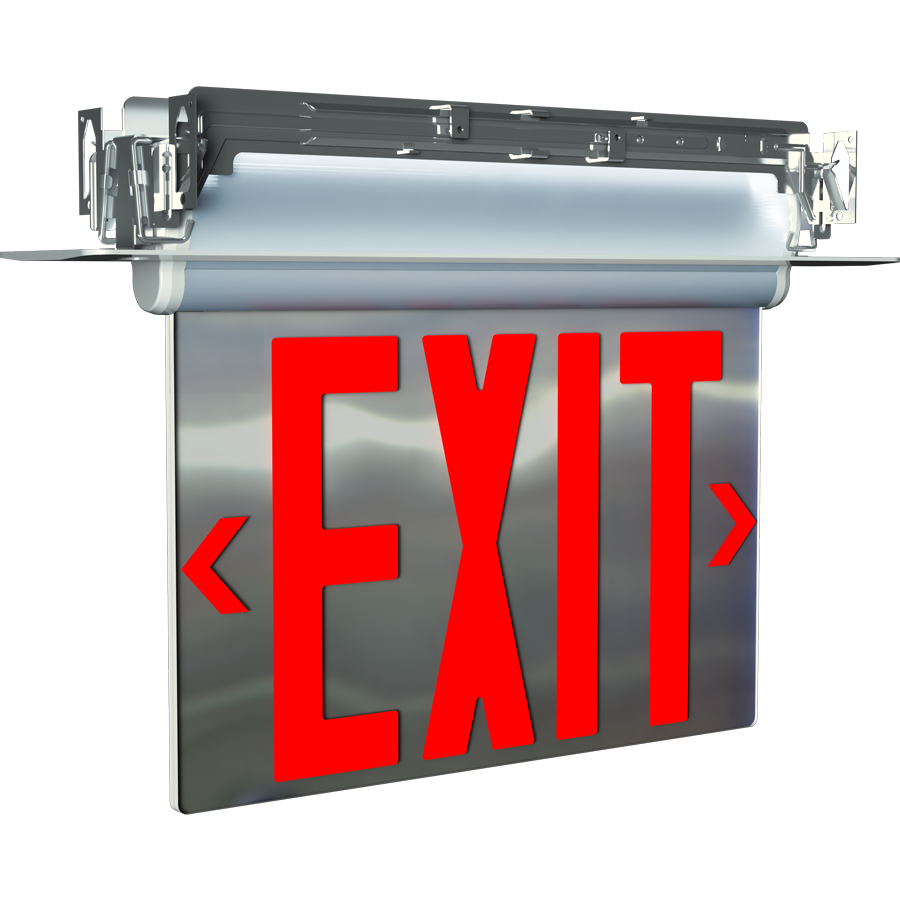

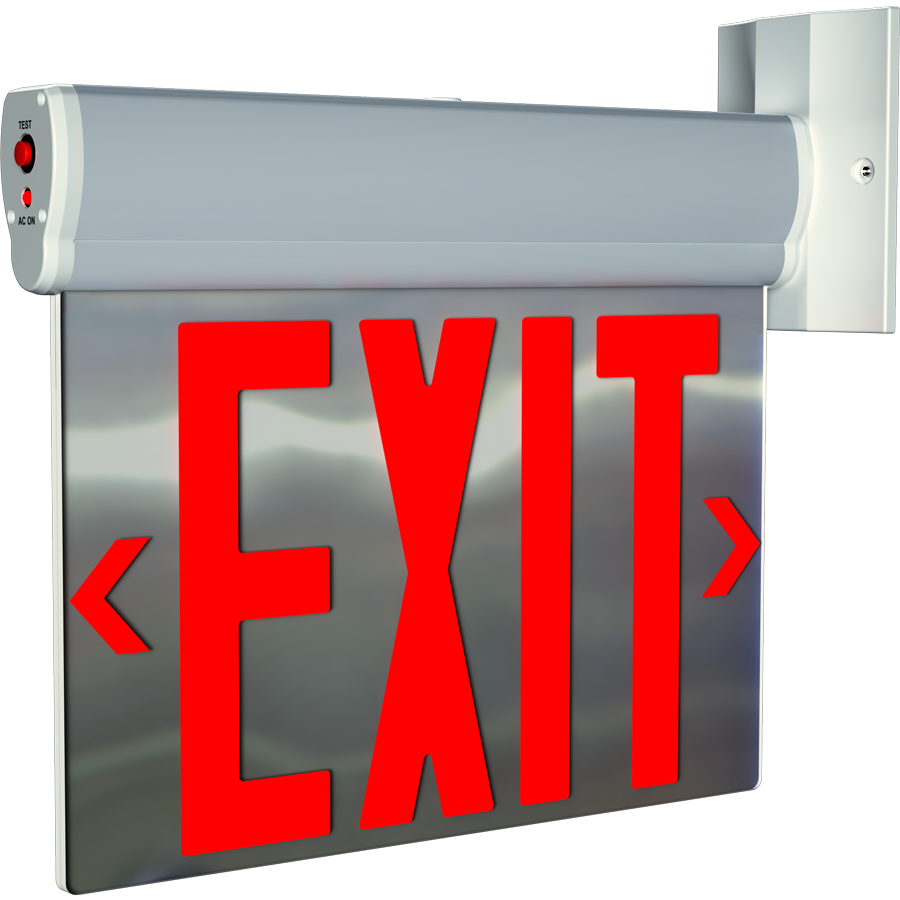

Hardware included for surface wall, ceiling, end and recessed mounting; panel swivels 0-180°

90-minute battery backup with integrated test switch and charge indicator

View Technical Specs

View Price & Availability

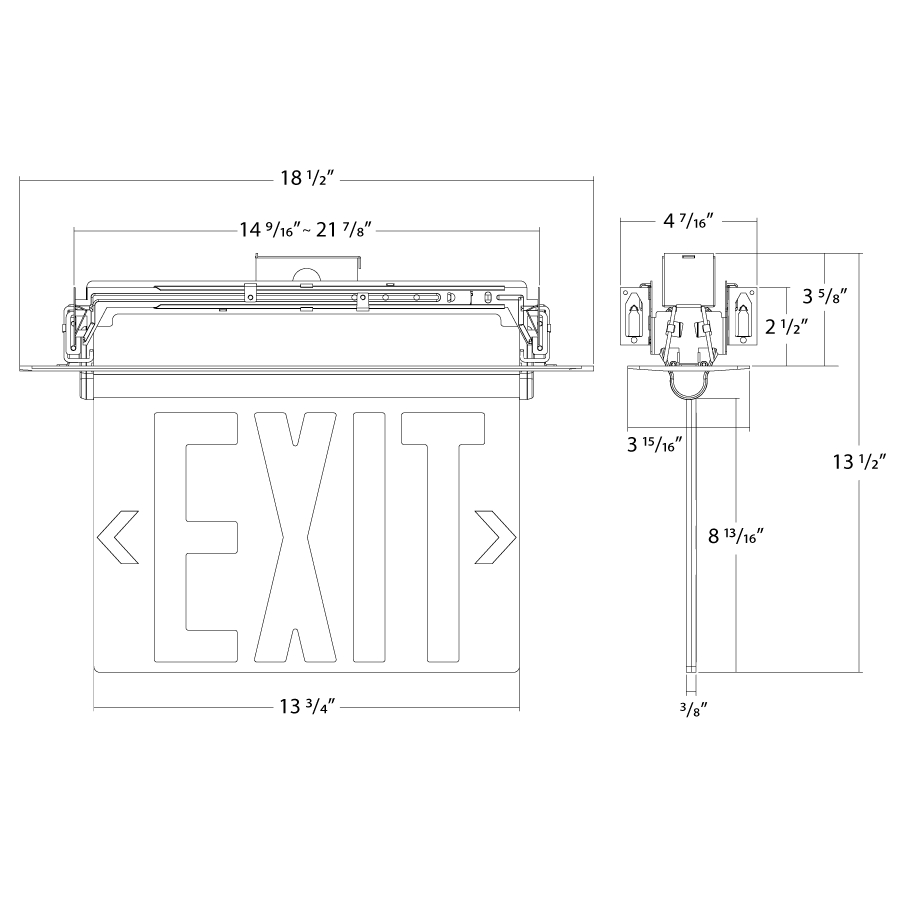

Dimensions

Weight: 6.2 lbs

Technical Specifications

Performance

Product Type

Chicago-Approved Edge-Lit Exit Sign

Description

Chicago-approved edge-lit exit sign with a single face and red letters.

Input Wattage

4.3W @120V; 4.7W @277V

Electrical

Power Factor

≥0.9

Input Voltage

Dual 120/277 Voltage

Operating Frequency (Hz)

60Hz

Input Current @ 120V (mA)

40mA

Input Current @ 277V (mA)

20mA

Dual Voltage Circuit Operation

Operating Temperature

32°F to 122°F (0°C to 50°C)

Storage Temperature

68°F to 86°F (20°C to 30°C)

Self Diagnostics

No, manual test only

Remote Test Switch

Emergency Characteristics

Battery Backup

No, AC only

Battery Operating Temperature

0°F to 50°F (32°C to 122°C)

Installation

Mounting Method

Back/Top/End

Mounting Type

Wall/Ceiling Mount

Cold Weather Rated

Construction

Shape

Rectangle

Housing Material

Aluminum

Panel Material

Acrylic

Panel Color

White

Letter Color

Red

Housing Color

Aluminum

Number of Faces

Single Face

Arrow Direction

No Arrow

Arrow Material

Screen Print

Sign Format

Edge-lit

Remote Capacity

Compliance

Listings

UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards

Environment

Suitable for indoor use in dry and damp environments

IP Rating

Indoor

Certification Model Number

CAELXTEU1RWA-NA

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

Not applicable

California Energy Commission (CEC) Status

Lawful for Sales in California

City Compliance

Chicago Approved

FCC

Complies with Part 15 of the FCC Rules

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
