EM-R-B

Spec Sheet Instructions Family Spec Sheet Spec Sheet

EM-R-B

IInjection-molded thermoplastic ABS housing, UL 94V-0 flame rating, high-impact resistant, thermoplastic in white housing finish

Adjustable LED lamp heads provide optimal center-to-center spacing. Suitable for Wall or Ceiling mounting

Integrated battery back up, 90 minutes of emergency power

Remote output power 2W at 3.6VDC. Supports up to two (2) single or one (1) double 3.6VDC remote heads

Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,Local and State Codes. Compliant with California Title 20

View Technical Specs

View Price & Availability

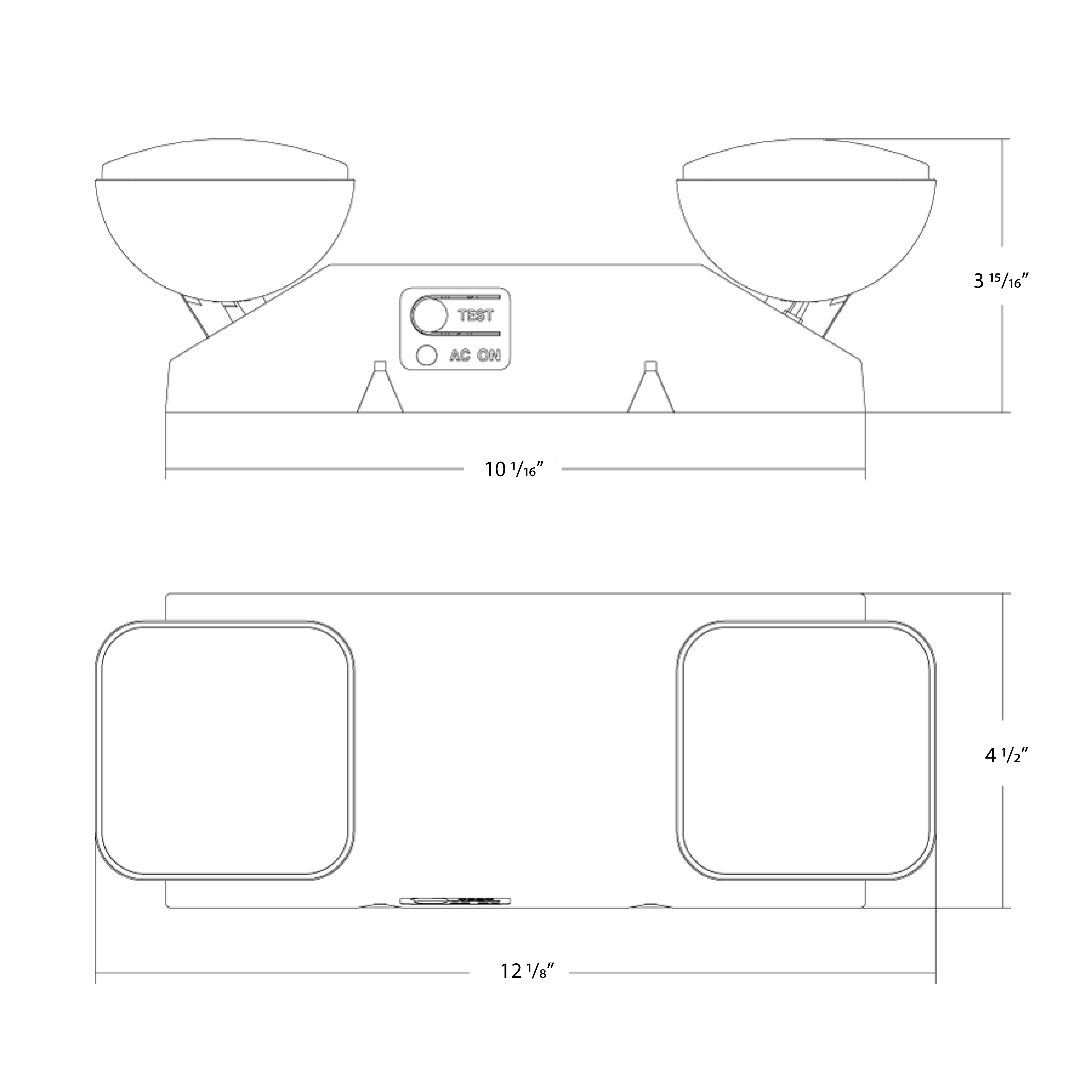

Dimensions

Weight: 3.2 lbs

Technical Specifications

Performance

Product Type

Thermoplastic Emergency Unit

Product Series

EM
Emergency Light
Square & Round

Description

Ultra-economy emergency unit low profile, thermoplastic dual lamp head emergency unit. Available in white or black finishes with round lamp heads.

Input Power (W)

Lumens (lm)

200lm

Maximum Output Wattage (W)

Construction

Housing Material

Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating

Housing Finish

Black Finish

Illumination Source

2 Lamp Heads

Optical System

Precision engineered Prismatic Lens

Head Orientation

Adjustable heads for aiming light where required 330° Rotation, 40° Tilt

Remote Capable

Yes - Remote version supports up to two (2) 3.6VDC Remote Heads

LED Characteristics

Color Temperature

6500K

Electrical

Power Factor

0.4

Input Voltage (V)

Universal 120-277 Voltage

Operating Frequency

50/60Hz

Input Current @ 120V (A)

0.025A

Input Current @ 277V (A)

0.018A

Operating Temperature

32°F to 104°F (0°C to 40°C)

Emergency Characteristics

Battery Backup

Yes

Emergency Illumination

90 minutes

Battery

Built-in 3.6V 1000mAh Nickel cadmium battery

Battery Voltage

Recharge Time

Maximum 24 hours for full recharge time

Battery Operating Temperature

32°F to 122°F (0°C to 50°C)

Testing Method

Integrated Test Switch & Charge Indicator

Installation

Mounting

Universal J-Box Mounting Pattern

Application

Wall Mount

Mounting Height

8 ft

Emergency Egress Coverage (ft) Mounting at height of 7.5 ft

14'X3'

Compliance

Listings

UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards

Environment

Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.

IP Rating

IP20

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

Standard Remote Heads
EREMOTE-1
EREMOTE
EREMOTE-1B
EREMOTE-B
Water Proof Remote Heads
EREMOTEOUT-1
EREMOTEOUT
EREMOTEOUT-1B
EREMOTEOUT-B
EREMOTEOUT-1W
EREMOTEOUT-W

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
