EM34-B
- Low-profile thermoplastic emergency light with two adjustable LED heads
- Housing in white or black finish (by model), UL 94V-0
- Integrated battery backup, 90 minutes of emergency power
- Wall or ceiling mount; back plate fits most standard junction boxes
- Meets UL924, NFPA 101 Life Safety Code, NEC and OSHA illumination standards; compliant with California Title 20

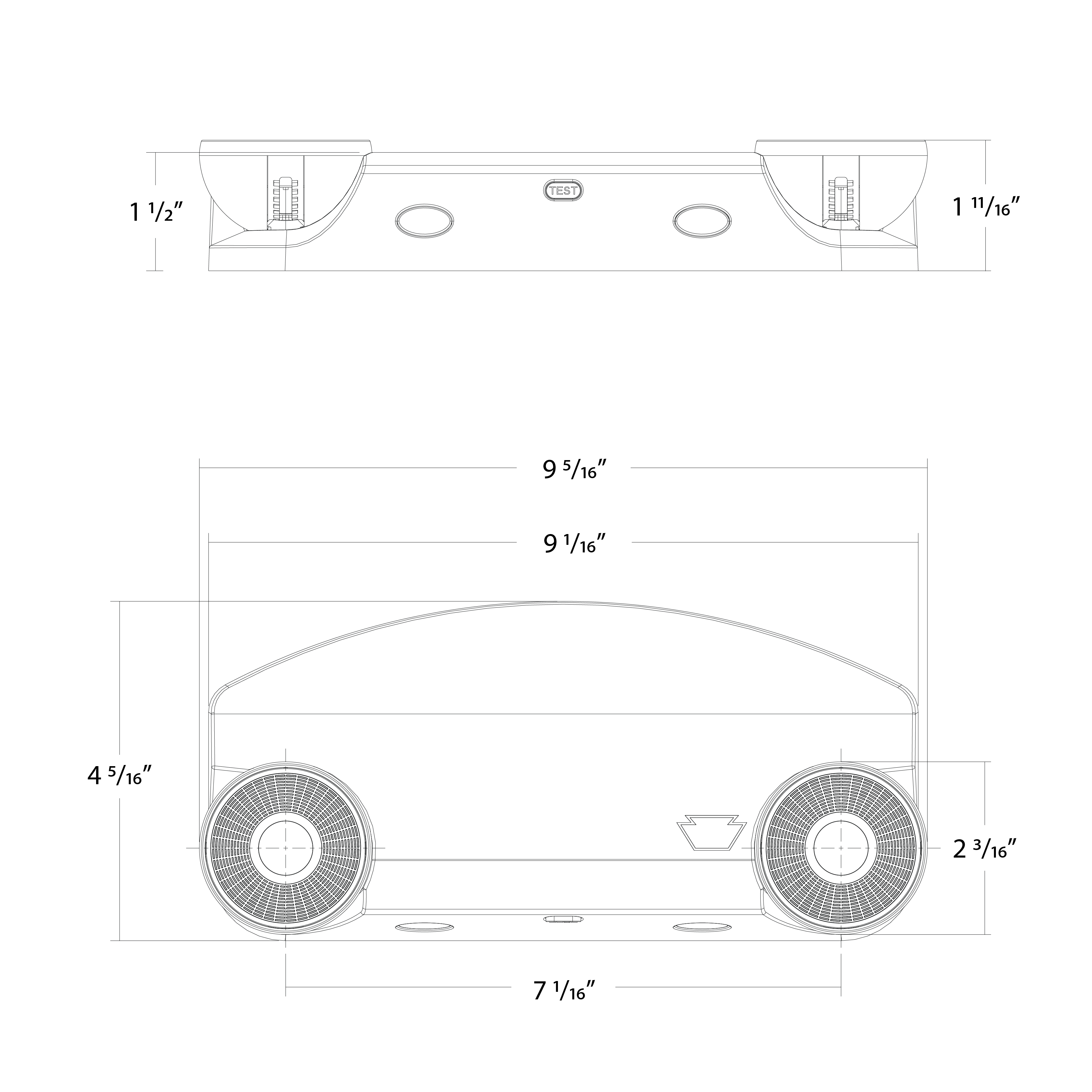

Dimensions
Weight: 3.8 lbs
Technical Specifications
Performance
Product Type
Low Profile Emergency Light
Product Series
EM34
Emergency Light
Emergency Light
Description
These edge-lit exit signs provide a high-end aesthetic while still being economical. The exit sign panel tilts 0-180°, fitting many moutnting orientations, and comes with surface and recessed mounting hardware in the box.
Input Power (W)
1.8W
Lumens
160lm
Construction
Housing Material
Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating
Housing Finish
Black Finish
Illumination Source
2 Lamp Heads
Optical System
High-performance chromeplated reflectors and polycarbonate lenses for optimal light distribution
Head Orientation
Adjustable heads for aiming light where required 330° Rotation, 40° Tilt
Remote Capable
No
LED Characteristics
Color Temperature
6500K
Electrical
Input Voltage (V)
Universal 120-277 Voltage
Operating Frequency
50/60Hz
Input Current @ 120V (A)
0.02A
Input Current @ 277V (A)
0.01A
Maximum Output Wattage
2W
Operating Temperature
32°F to 104°F (0°C to 40°C)
Emergency Characteristics
Battery Backup
Yes
Emergency Illumination
90 minutes
Battery Voltage
3.6V
Recharge Time
Maximum 24 hours for full recharge time
Battery Operating Temperature
32°F to 122°F (0°C to 50°C)
Testing Method
Integrated Test Switch & Charge Indicator
Other
Battery
Built-in 3.6V 1000mAh NI-MH battery
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Installation
Mounting
Universal J-Box Mounting Pattern
Application
Wall Mount
Mounting Height
7.5 ft
Emergency Egress Coverage(ft) Mounting at height of 7.5ft
14 ft x 3 ft
Compliance
Listing
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.
IP Rating
IP20
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
