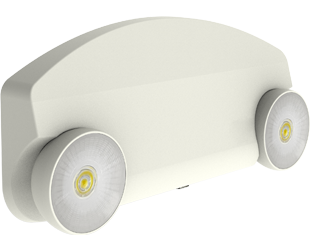

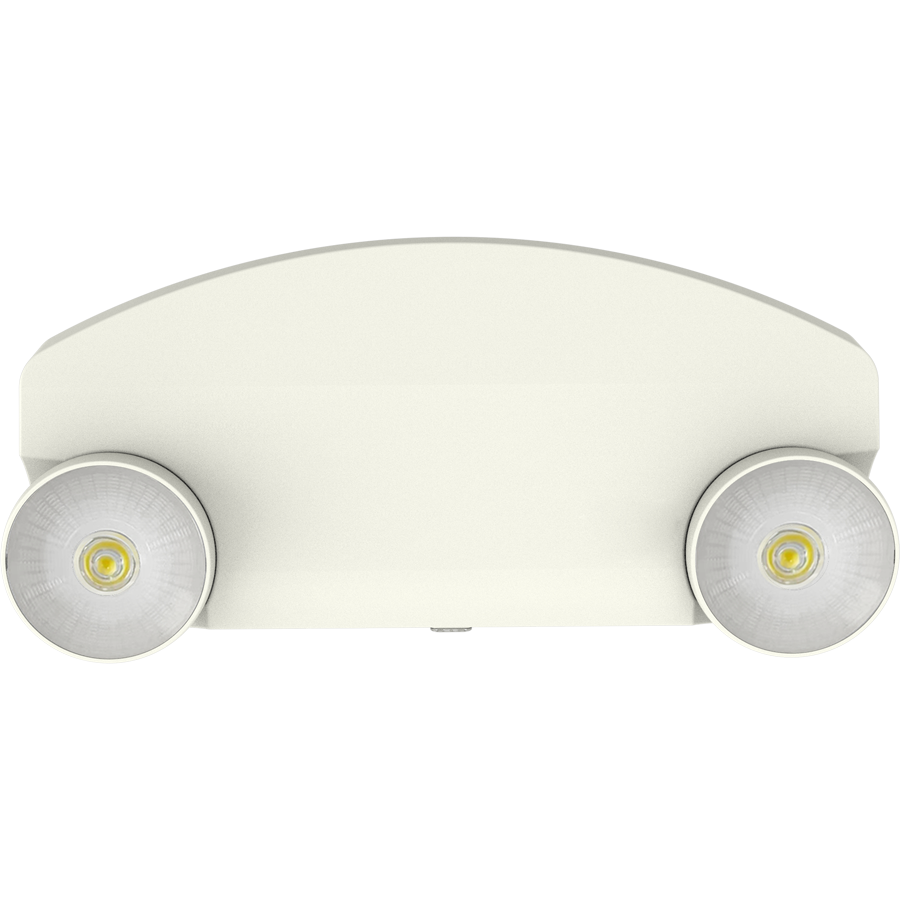

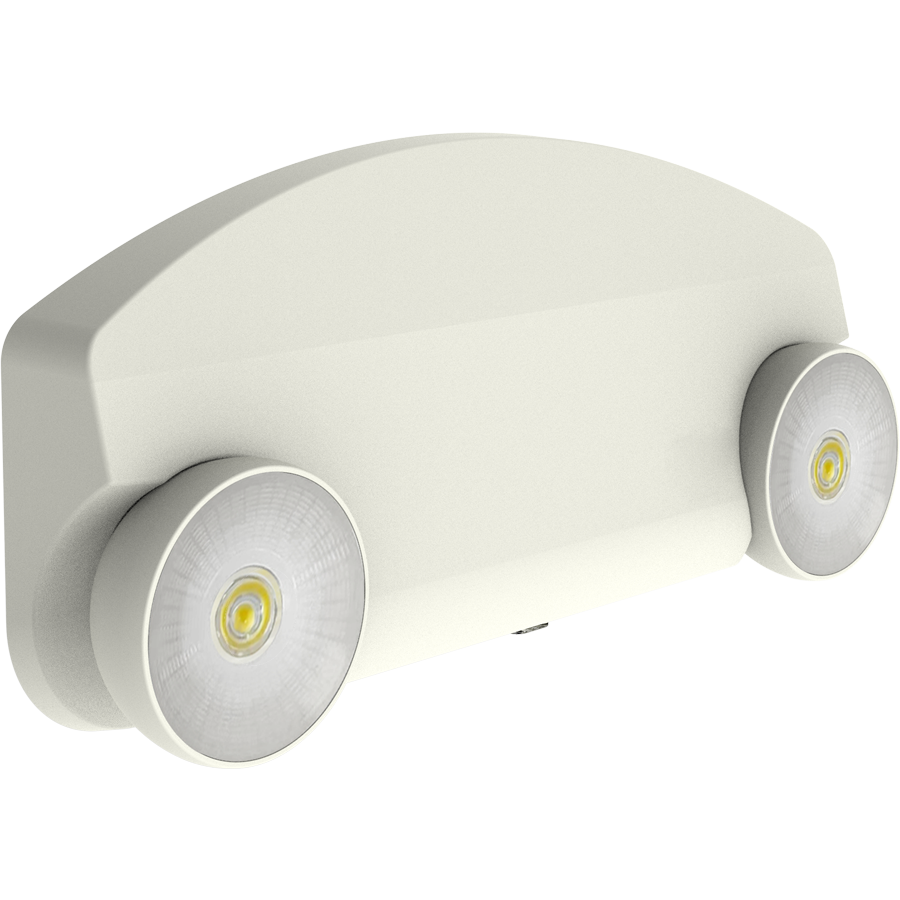

EM34-R
- Low profile Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating
- Integrated battery back up, 90 minutes of emergency power
- Remote head capable up to 2W of output
- Wall mount and ceiling mount. Surface mount back plate fits most industry standard size junction boxes
- Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA,Local and State Codes. Compliant with California Title 20
Dimensions
Weight: 1.7 lbs
Technical Specifications
Performance
Product Type
Low Profile Emergency Light
Product Series
EM34
Emergency Light
Emergency Light
Description
Ultra-economy emergency unit low profile, thermoplastic dual lamp head emergency unit. Available in white or black finishes with round lamp heads.
Input Power (W)
1.8W
Lumens (lm)
160lm
Maximum Output Wattage (W)
4W
Construction
Housing Material
Injection-molded thermoplastic ABS housing, UL 94V-0 flame rating
Housing Finish
White Finish
Illumination Source
2 Lamp Heads
Optical System
High-performance chromeplated reflectors and polycarbonate lenses for optimal light distribution
Head Orientation
Adjustable heads for aiming light where required 330° Rotation, 40° Tilt
Remote Capable
Yes - Remote version supports up to two (2) 3.6VDC Remote Heads
LED Characteristics
Color Temperature
6500K
Electrical
Power Factor
0.4
Input Voltage (V)
Universal 120-277 Voltage
Operating Frequency
50/60Hz
Input Current @ 120V (A)
0.025A
Input Current @ 277V (A)
0.015A
Operating Temperature
32°F to 104°F (0°C to 40°C)
Emergency Characteristics
Battery Backup
Yes
Emergency Illumination
90 minutes
Battery
Built-in 3.6V 2000mAh NI-MH battery
Battery Voltage
Battery Voltage
Recharge Time
Maximum 24 hours for full recharge time
Battery Operating Temperature
0°F to 40°F (32°C to 104°C)
Testing Method

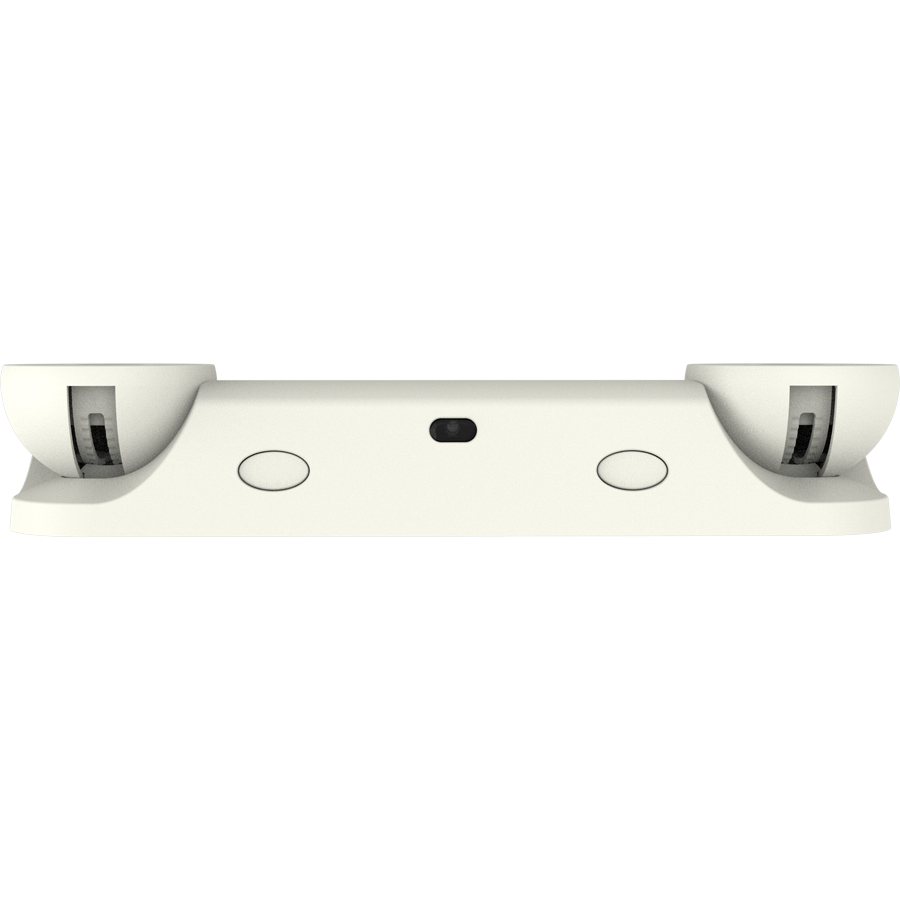

Integrated Test Switch & Charge Indicator
Installation
Mounting
Universal J-Box Mounting Pattern
Application
Wall Mount
Mounting Height
7.5 ft
Emergency Egress Coverage (ft) Mounting at height of 7.5 ft
14'X3'
Compliance
Listings
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.
IP Rating
IP20
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
Compatible Products
Standard Remote Heads
EREMOTE-1
EREMOTE
EREMOTE-1B
EREMOTE-B
Water Proof Remote Heads
EREMOTEOUT-1
EREMOTEOUT
EREMOTEOUT-1B
EREMOTEOUT-B
EREMOTEOUT-1W
EREMOTEOUT-W
EREMOTE-1
EREMOTE
EREMOTE-1B
EREMOTE-B
Water Proof Remote Heads
EREMOTEOUT-1
EREMOTEOUT
EREMOTEOUT-1B
EREMOTEOUT-B
EREMOTEOUT-1W
EREMOTEOUT-W
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
