EREMOTE-1B

Spec Sheet IES File Instructions Family Spec Sheet Spec Sheet EZ Layout

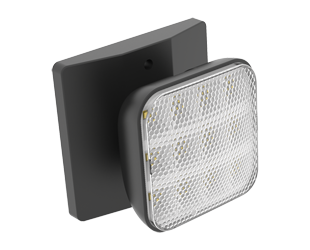

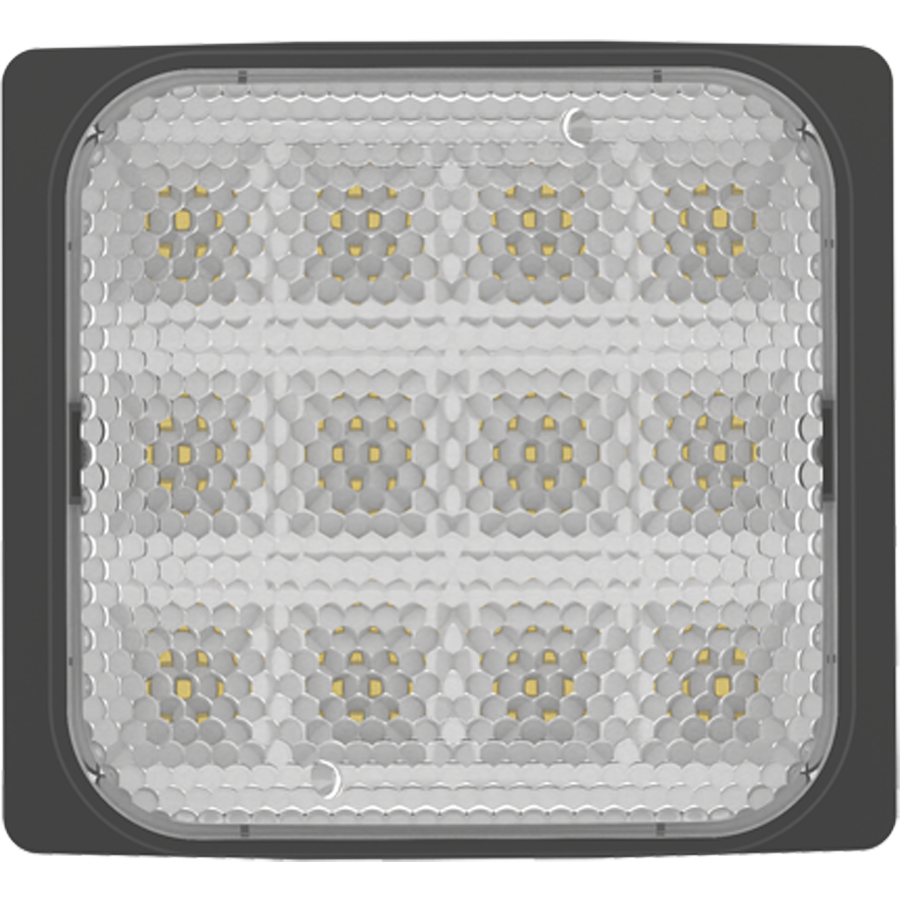

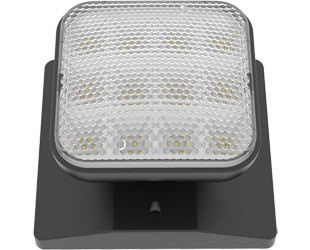

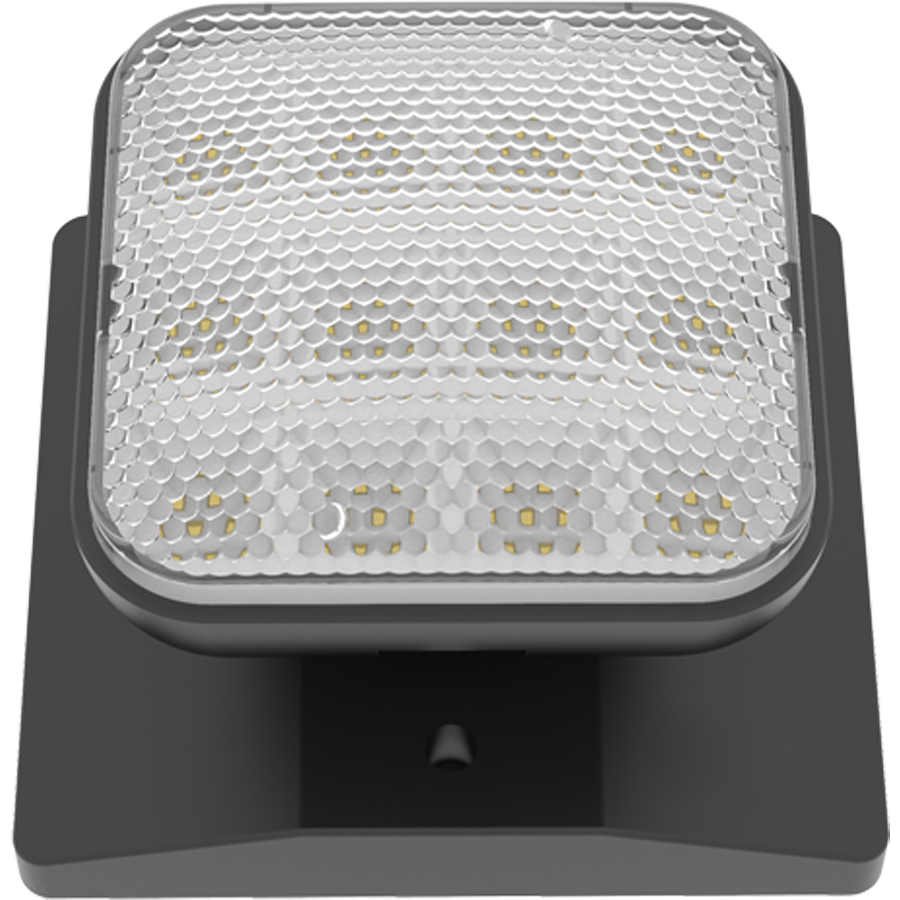

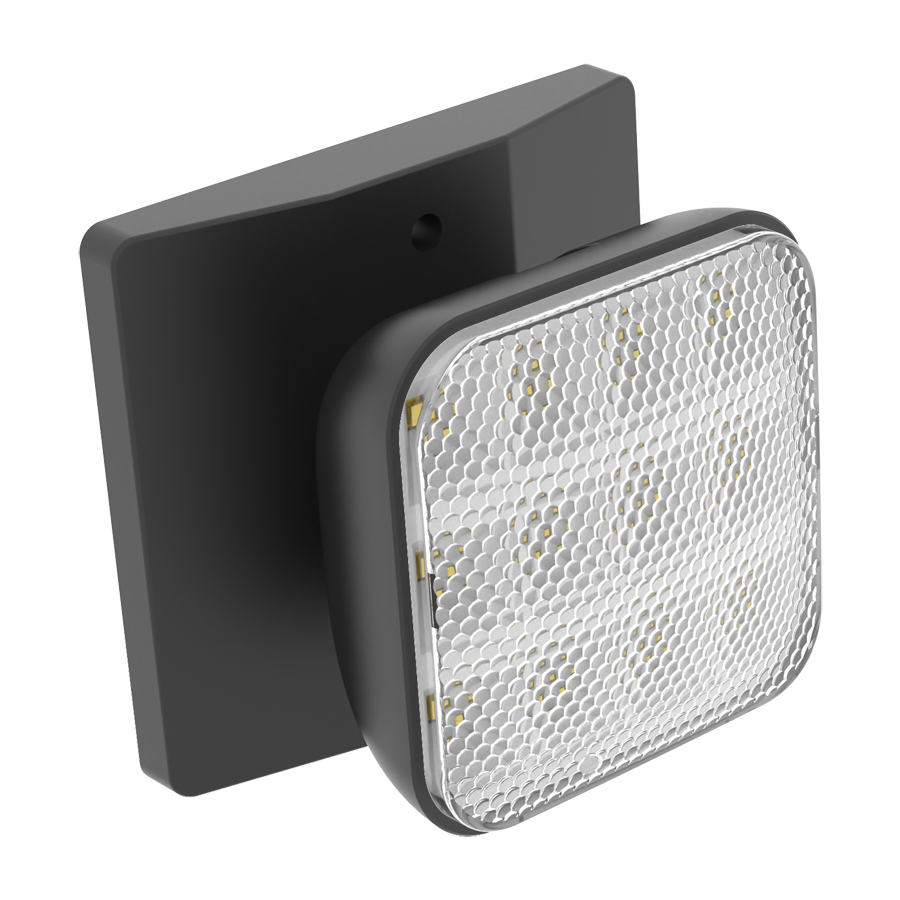

EREMOTE-1B

Indoor thermoplastic remote heads, single- or double-head models

White or black housing (by model), 5VA flame rating

1.2W per head; works with 3.6V-15V remote-capable emergency units

Adjustable heads; wall mount

Meets UL924, NFPA 101 Life Safety Code, NEC and OSHA illumination standards

View Technical Specs

View Price & Availability

EZ-Layout

Create Custom Lighting Layout

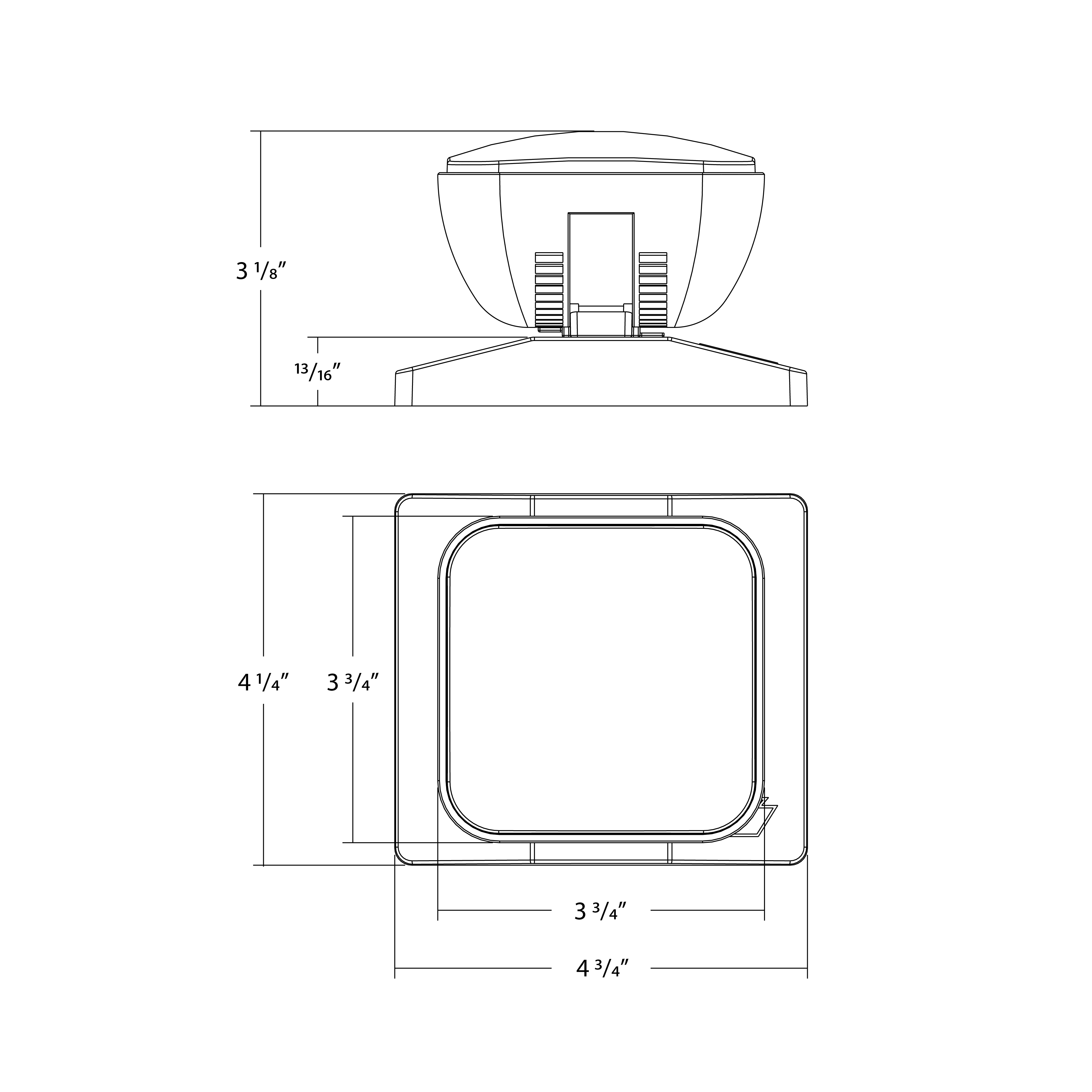

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

Thermoplastic Remote Heads

Product Series

Emergency Remote Heads

Description

Remote lamps are designed to work with Emergency Lights and Exit Comobo. Contemporary design offers fully adjustable heads that are available in single or double head options.

Input Power (W)

1.2W max.

Lumens (per fixture)

90lm

Construction

Housing Material

Thermoplastic Housing 5VA Flame Rating

Housing Finish

Black Housing

Illumination Source

Remote Single Head

Optical System

Precision engineered Prismatic Lens

Head Orientation

Adjustable heads for aiming light where required

LED Characteristics

Color Temperature

6500K

Electrical

Input Voltage

3.6-15V

Input Current @ 120V (A)

300mA max

Operating Temperature

32°F to 104°F (0°C to 40°C)

Installation

Mounting

Wall mount

Application

Indoor use

Mounting Height

7.5 ft

Compliance

Listing

UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards

Environment

Suitable for use in dry and damp environments. Not suitable for applications with direct sunlight.

IP Rating

IP20

T20 Compliant

Can be used to conform with the requirements of California Title 20

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

FCC

Complies with Part 15 of the FCC Rules

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
