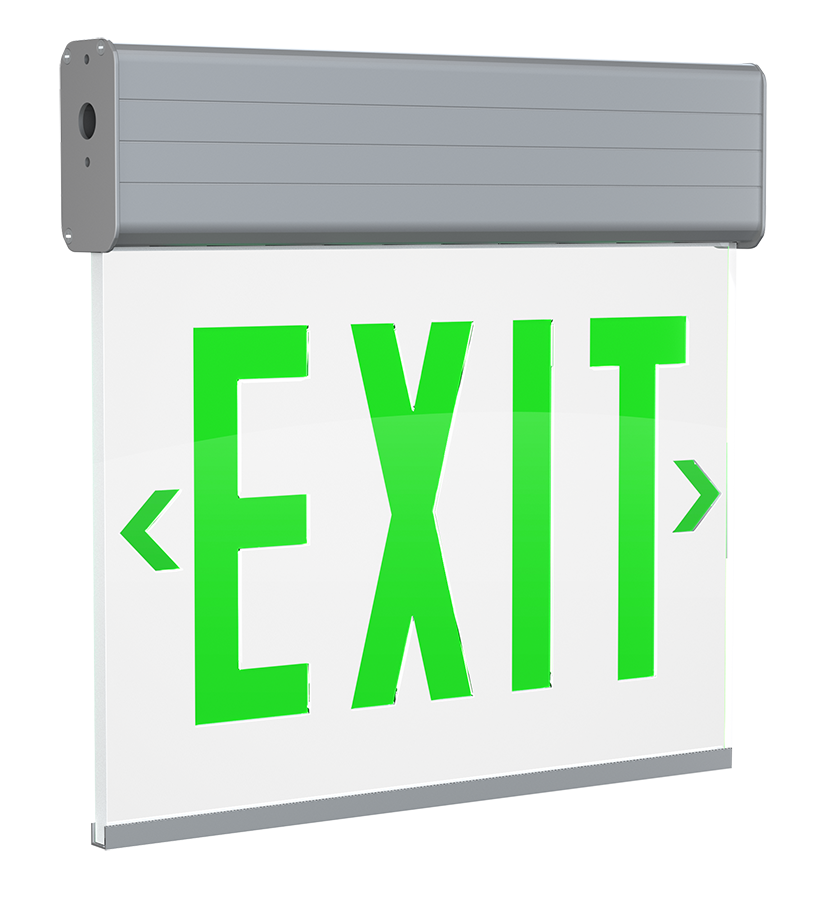

EXITEDGE-1G
EXITEDGE-1G
- Single-face panel
- Modern edge-lit design
- Compliant with California Title 20
Dimensions
Weight: 3.2 lbs
Technical Specifications
Performance
Product Type
Edge-lit Exit Sign
Description
Edge-lit exit sign with a single face and green letters.
Input Wattage
3.3W @120V and 277V
Electrical
Power Factor
≥0.9
Input Voltage
Dual 120/277 Voltage
Operating Frequency (Hz)
60Hz
Input Current @ 120V (mA)
31mA
Input Current @ 277V (mA)
15mA
Dual Voltage Circuit Operation
No
Operating Temperature
32°F to 122°F (0°C to 50°C)
Battery Backup
AC Only
Battery Operating Temperature
32°C to 122°C (0°F to 50°F)
Storage Temperature
68°F to 86°F (20°C to 30°C)
Self Diagnostics
No, manual test only
Remote Test Switch
No
Installation
Mounting Method
Back/Top/End
Mounting Type
Wall/Ceiling Mount
Cold Weather Rated
No
Construction
Shape
Rectangle
Housing Material
Aluminum
Panel Material
Acrylic
Panel Color
Clear
Letter Color
Green
Housing Color
Aluminum
Number of Faces
Single Face
Arrow Direction
No Arrow
Arrow Material
Adhesive (included)
Sign Format
Edge-lit
Remote Capacity
No
Compliance
Listings
UL924 Listed, NFPA 101 (current Life Safety Code), NEC and OSHA illumination standards
Environment
Suitable for indoor use in dry and damp environments
IP Rating
Indoor
Certification Model Number
ELXTEU1GCA
T20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
FCC
Complies with Part 15 of the FCC Rules
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Note
All values are typical (tolerance +/- 10%)
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
