EZPANFAHE2X4/D10/LCBS
EZPANFAHE2X4/D10/LCBS
- Direct Connect to the Lightcloud Blue mobile app via Bluetooth, no Gateway or Hub required
- Use mobile device to configure features for On/Off Control, Dim Level, Schedules, Scenes, and more.
- Field-adjustable light output and color temperature
- Innovative use of edge lit technology for glare-free lighting
- Best in class efficacy
Performance
| Watts | 50/40/30W |
| Color Temp | 3500/4000/5000K |
| Lumens | 4,000-6,500 lm |
| Efficacy | 146 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current, Class 2 |
| 120V | 0.39A |
| 208V | 0.24A |
| 240V | 0.21A |
| 277V | 0.17A |
| Input Watts | 50/40/30W |
Dimensions
Weight: 14.8 lbs
Technical Specifications
Performance
Product Type
Edge-lit Flat Panel
Description

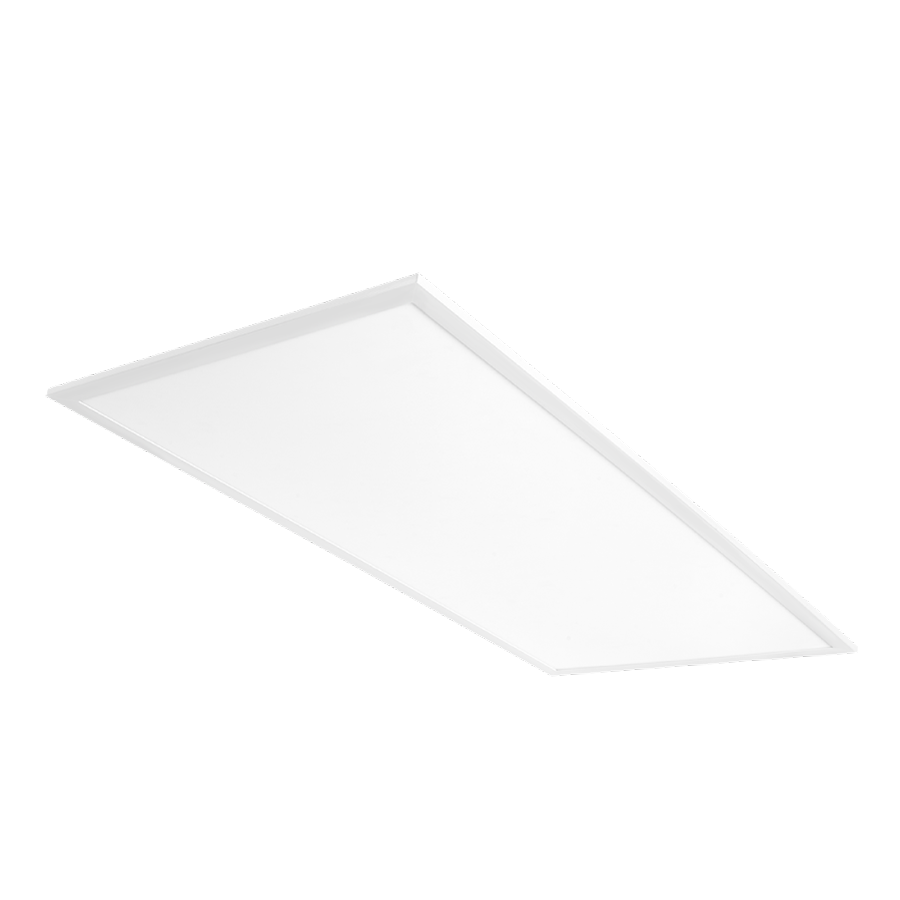

These edge-lit LED panel lights provide smooth and uniform light edge-to-edge for a clean, modern look.These panels are field adjustable wattage and color temperature with a high efficacy.
Wattage Equivalency
(4)F32T8 or (4)F28T5
Efficacy
30W
3500K @ 136lm/W; 4000K @ 146lm/W; 5000K @ 141lm/W
40W
3500K @ 133lm/W; 4000K @ 145lm/W; 5000K @ 138lm/W
50W
3500K @ 137lm/W; 4000K @ 146lm/W; 5000K @ 142lm/W
3500K @ 136lm/W; 4000K @ 146lm/W; 5000K @ 141lm/W
40W
3500K @ 133lm/W; 4000K @ 145lm/W; 5000K @ 138lm/W
50W
3500K @ 137lm/W; 4000K @ 146lm/W; 5000K @ 142lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
\
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.lightcloud.com.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.lightcloud.com.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners.
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure tha the device is online and select 'Delete'.
Method 2: Manual
Press and hold down the button located at the top of the Controller for 10 seconds or until the fixture flashes on/off 3x. The Controller will flash red to confirm it has been reset and is ready to pair to the App
Open the app and access the device settings for the paired device. Be sure tha the device is online and select 'Delete'.
Method 2: Manual
Press and hold down the button located at the top of the Controller for 10 seconds or until the fixture flashes on/off 3x. The Controller will flash red to confirm it has been reset and is ready to pair to the App
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, via the Lightcloud Blue mobile app and devices.
This fixture will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
This fixture will not operate properly when connected to a standard (incandescent) dimmer or dimming control.
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 240V (mA)
0.21A
Input Current @ 277V (mA)
0.17A
Operating Temperature
-22°F to 104°F (-30°C to 40°C)
Flicker
<20%
Detection Range
20 ft diameter at 9 ft mounting height
Sensor Settings
Sensor Connection Type
RJ09
Sensor Technology
Passive Infrared (PIR)
Default Setting
Uncommissioned State:
Motion Sensitivity: High
Brightness when triggered: 100%
Hold time: 1 minute
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Commissioned State:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
When vacant: Off
Motion Sensitivity: High
Brightness when triggered: 100%
Hold time: 1 minute
Standby to dim: 20%
Standby time: 1 minute
When vacant: Off
Commissioned State:
Motion Sensitivity: High
Brightness when triggered: Last on status
Hold time: 20 minutes
When vacant: Off
Sensing Type
Occupancy or Vacancy
Sensor Sensitivity
Low/Medium/High
Occupied Actions
On or On at a Dim Level
Vacant Options
Off or On at a Dim Level
Occupancy Timeout
1 minute to 240 minutes
Daylight Sensing
The sensor will determine to trigger the light(s) on or not based on the daylight threshold level set in the Lightcloud Blue mobile app.
Daylight Threshold
150 lux to 1500 lux
LED Characteristics
LEDs
Edge-lit long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color.
Color Temperature
3500/4000/5000K
Default Settings: 4000K
Default Settings: 4000K
Color Accuracy (CRI)
83 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Surface Mount, Recessed
Standard integral T-bar clips secure the fixture to Tbars and prevent T-system separation.
Standard integral T-bar clips secure the fixture to Tbars and prevent T-system separation.
Construction
Size
2'x4'
Shape
Rectangle
Finish
White
Housing
Lightweight aluminum housing, steel pan and junction box.
Enclosure Material
Plastic
Lens
Frosted polystyrene
IC Rated
Suitable for direct contact with insulation
Certification Model Number
EZPANFAHE2X4/D10/LCBS
Compliance
Listings
UL Listed
Environment
Suitable for indoor use in dry and damp environments
Air Tight
Not compliant
DLC Listed
This product is on the Design Lights Consortium
(DLC) Qualified Products List and is eligible for
rebates from DLC Member Utilities.
DLC Product Code: S-JF2MQR
DLC Product Code: S-JF2MQR
DLC ID
S-JF2MQR
T20 Compliant
Not applicable
California Title 24 JA8 Compliant
Not applicable
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS Compliant
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
