EZPANHE1X4-12N/D10/LC
Performance
| Watts | 12W |
| Color Temp | 4000K (Neutral) |
| Lumens | 1,708 lm |
| Efficacy | 136.6 lm/W |
| Color Accuracy | 82 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.1A |
| 208V | 0.06A |
| 240V | 0.05A |
| 277V | 0.04A |
| Input Watts | 12.5W |
Dimensions
Weight: 11.6 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud
Lightcloud Controller Installed
LCLC/W
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to (4)F32T8 or (4)F28T5
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Construction
Maximum Ambient Temperature
Suitable for use in up to -30°C (-22°F) to 50°C(122°F)
IC Rated
Suitable for insulated ceilings
Lens
Frosted polystyrene
Housing
Lightweight aluminum housing, steel pan and junction box
Installation
Standard integral T-bar clips secure the fixture to T-bars and prevent T-system separation
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Recessed ceiling
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 0.1A, 208V: 0.06A, 240V: 0.05A, 277V: 0.04A
THD
10.4% at 120V, 9.4% at 277V
Power Factor
99.3% at 120V, 93.7% at 277V
Recently Viewed Products
EZPANHE1X4-12N/D10/LC
Panels & Troffers 1708 Lumens Ezpan 1X4 12W 4000K 0-10V Dimming 120V-277V Lightcloud Controller
HALV18L935-GL-A/LC
Architectural 402 Lumens Halv Forward Light 25W 90Cri 3500K Green Leaves Lens Antique Bronze Finish Lightcloud Controller

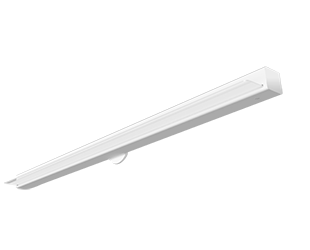

TOMO-4WM/PIR/E
