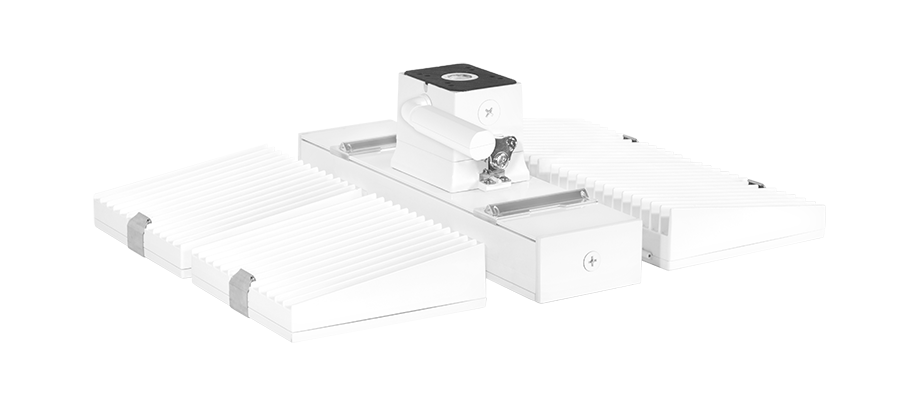

FALCOR230NW/D10/LC
FALCOR230NW/D10/LC
- High-output, high performance industrial high bay
- High ambient temperature rating of 55°C
- Diffusion lens reduces glare
- Multiple mounting options: pendant, surface or chain
- 100,000-Hour LED lifespan
- 5-Year, No-Compromise Fixture Warranty and 10-Year, No-Compromise Lightcloud Warranty
- Built in support Lightcloud™
- Easy setup - simply power on, confirm device connectivity and call 844-LIGHTCLOUD
Performance
| Watts | 230W |
| Color Temp | 4000K (Neutral) |
| Lumens | 20,777 lm |
| Efficacy | 86.1 lm/W |
| Color Accuracy | 74 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.99A |
| 208V | 1.21A |
| 240V | 1.05A |
| 277V | 0.88A |
| Input Watts | 241.2W |
Dimensions
Weight: 42.1 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations
Optical
Optics
120° downlight
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Drivers
Constant Current, Class 2, 100-277V, 50/60 Hz, 120V: 1.99A, 208V: 1.2A, 240V: 1.04A, 277V: 0.88A, 4kV surge protection
THD
3.9% at 120V, 8.8% at 277V
Power Factor
99.5% at 120V, 95.3% at 277V
