FFLED230T/D10

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

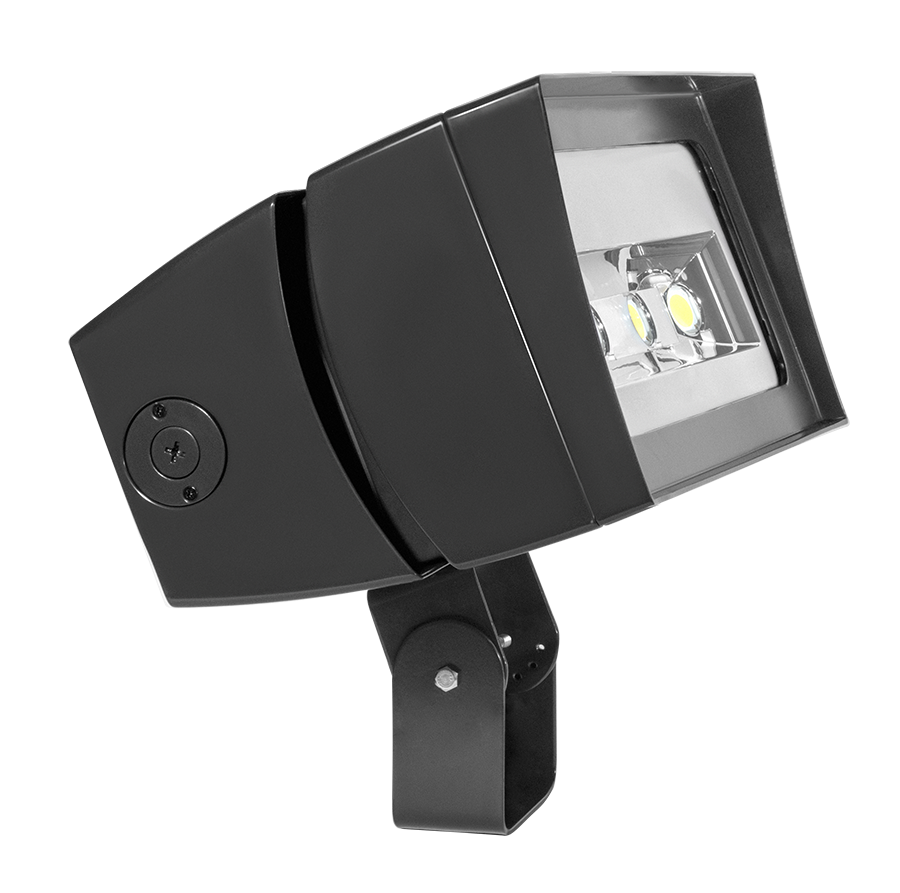

FFLED230T/D10

Ultra-efficient LED and optical design

100,000-hour life based on LM-80 results and TM-21 calculations

"Air-Flow" technology heatsink

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	230W
Color Temp	5000K (Cool)
Lumens	33,506 lm
Efficacy	140.8 lm/W
Color Accuracy	76 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	1.99A
208V	1.18A
240V	1.03A
277V	0.86A
Input Watts	238W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 41.6 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.

IP Rating

Ingress protection rating of IP66 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

LEDs

Multi-chip, high-output, long-life LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 1,000W Metal Halide

Optical

NEMA Type

NEMA Beam Spread 7H x 6V

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Ambient Temperature

Suitable for use in up to 104°F (40°C)

Thermal Management Housing

Superior heat sinking with external Air-Flow fins

Housing

Die-cast aluminum housing, lens frame and mounting arm

Lens

Clear glass lens

Reflector

Specular vacuum-metalized polycarbonate

Effective Projected Area

EPA = 2.1

Gaskets

High-temperature silicone gaskets

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Electrical

Driver

Constant Current, Class 1, 120-277V, 50/60 Hz, 120V: 1.99A, 208V: 1.18A, 240V: 1.03A, 277V: 0.86A

THD

6.3% at 120V, 6.6% at 277V

Power Factor

99.7% at 120V, 96.8% at 277V

Surge Protection

6 kV

Installation

Mounting

Heavy-duty Trunnion mount with stainless steel hardware

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Patents

The FFLED design is protected by U.S. Pat. D643,147, Canada Pat. 140798, China Pat. ZL201130171304.1, Mexico Pat. 36757 and pending patent in Taiwan.
