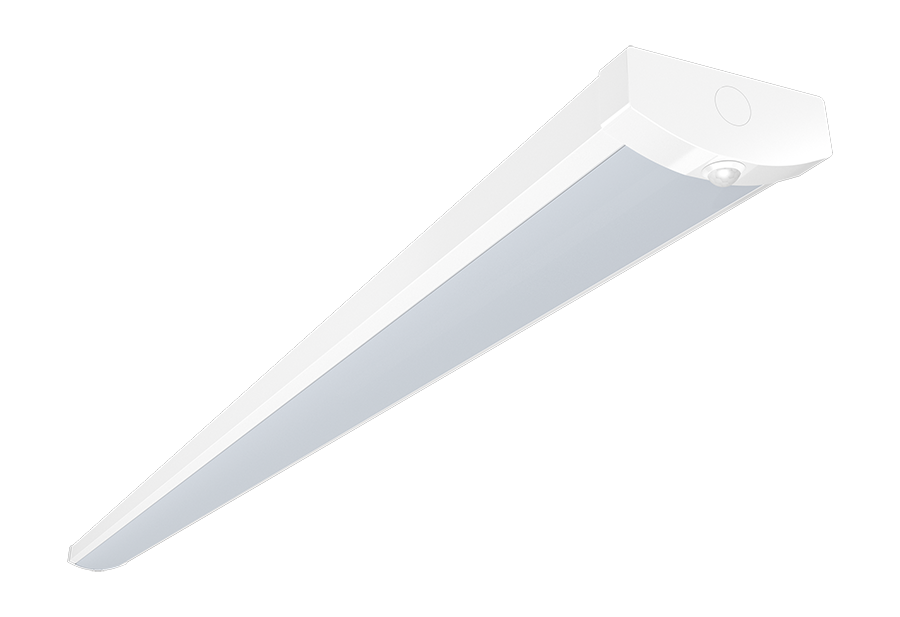

GUS17-8/LCBS
GUS17-8/LCBS
- 50,000-Hour LED lifespan
- 0-10V dimming standard
- DLC Listed
- 5-Year, limited warranty
Performance
| Watts | 90/80/70W |
| Color Temp | 3500/4000/5000K |
| Lumens | 9,177-12721 lm |
| Efficacy | 130.5-141.3 lm/W |
| Color Accuracy | 84-86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.83A/0.73A/0.64A |
| 208V | 0.47A/0.42A/0.37A |
| 240V | 0.41A/0.36A/0.32A |
| 277V | 0.35A/0.31A/0.27A |
| Input Watts | 70-90W |
Dimensions
Weight: 6.2 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
90W/80W/70W (factory default 90W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
90W/80W/70W (factory default 90W)
Color temperature selectable by 3500K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-RGTLLJ (High-Bay Luminaires)
DLC Product Code: S-LS9WP7 (Stairwell and Passageway Luminaires)
DLC Product Code: S-FM9QRH (Direct Linear Ambient Luminaires)
DLC Product Code: S-RGTLLJ (High-Bay Luminaires)
DLC Product Code: S-LS9WP7 (Stairwell and Passageway Luminaires)
DLC Product Code: S-FM9QRH (Direct Linear Ambient Luminaires)
Electrical
Driver
Constant Current, Class 2, Class P, 120-277V, 50/60 Hz
90W: 120V: 0.83A, 208V: 0.47A, 240V: 0.41A, 277V: 0.35A
80W: 120V: 0.73A, 208V: 0.42A, 240V: 0.36A, 277V: 0.31A
70W: 120V: 0.64A, 208V: 0.37A, 240V: 0.32A, 277V: 0.27A
90W: 120V: 0.83A, 208V: 0.47A, 240V: 0.41A, 277V: 0.35A
80W: 120V: 0.73A, 208V: 0.42A, 240V: 0.36A, 277V: 0.31A
70W: 120V: 0.64A, 208V: 0.37A, 240V: 0.32A, 277V: 0.27A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
3.9% at 120V, 11.3% at 277V
Power Factor
99.4% at 120V, 92.0% at 277V
Surge Protection
L-N: 1 kV
L/N-PG: 2 kV
L/N-PG: 2 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Max Power Temp Rating: 113°F (45°C)
Middle Power Temp Rating: 48°C (119°F)
Low Power Temp Rating: 53°C (127°F)
Middle Power Temp Rating: 48°C (119°F)
Low Power Temp Rating: 53°C (127°F)
Housing
Color coated steel sheets
Lens
Polycarbonate lens
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Surface mount. Can be mounted with v-hooks (ordered separately).
Lightcloud
Lightcloud Blue Sensor Installed
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.lightcloud.com.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at www.lightcloud.com.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
