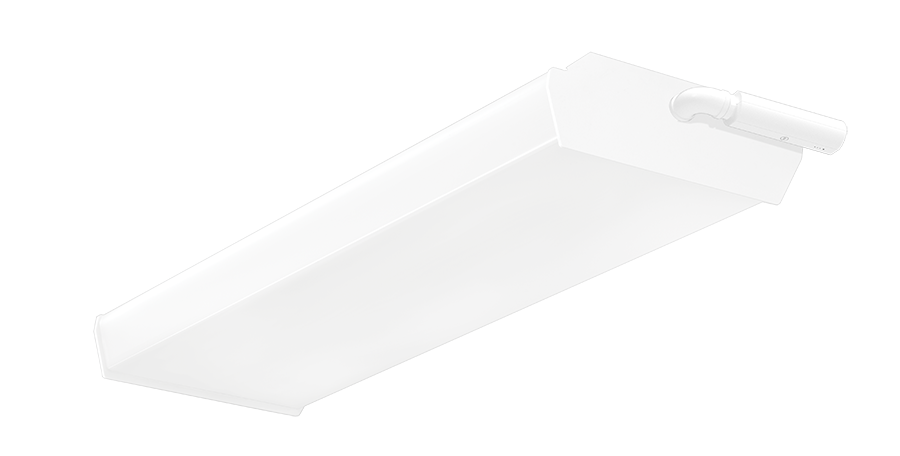

• Energy-efficient, maintenance-free LED wrap fixture
  • Multiple mounting options: surface, pendant or chain
  • High-reflectance white finish for optimal output
  • Diffusion wrap-around lens for smooth light distribution
  • 0-10V dimming, standard
  • 100,000-Hour LED lifespan
View Technical Specs
Performance
Watts 18W
Color Temp 5000K (Cool)
Lumens 2,761 lm
Efficacy 134.8
Color Accuracy 84 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.16A
208V 0.09A
240V 0.08A
277V 0.07A
Input Watts 20.5W

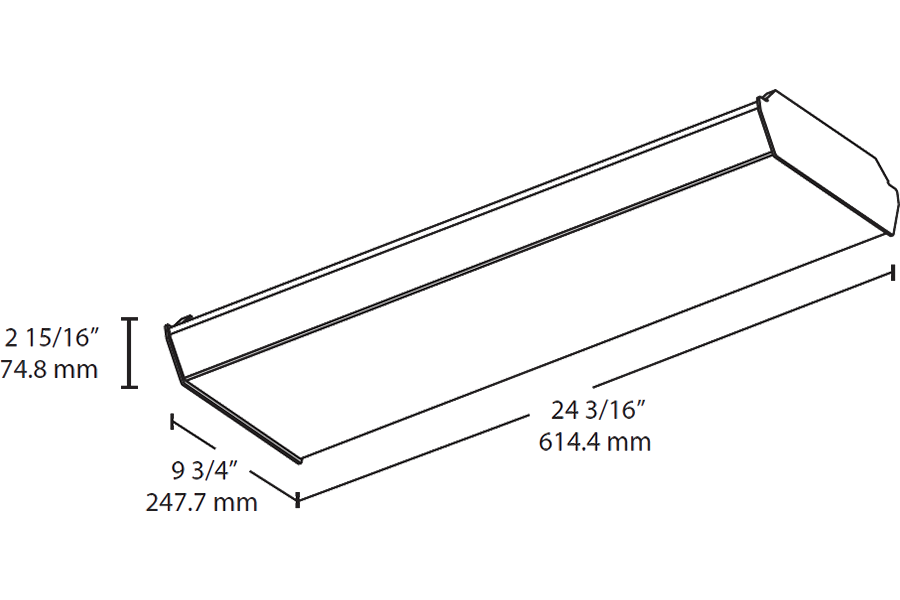

Dimensions
Link to Dimension Drawing

Weight: 8.3 lbs

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More
Compliance
UL Listed
Suitable for damp locations
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P3XNNF50
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to (2) F32T8
LED Characteristics
Color Stability
LED Color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Maximum Ambient Temperature
Suitable for use in up to 40°C (104°F)
Housing
Die-formed 22 gauge, cold-rolled, post-painted steel. Post painting improves durability of the finish and eliminates the sharp edges making handling and installation safer.
Lens
Acrylic lens with diffusion for enhanced optical performance
Reflector
Aluminum with high-reflectance (91%) powder coat applied post production for a more durable finish
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Surface mount. Can be mounted with chains or v-hooks by others.
Lightcloud
Lightcloud Controller Installed
Integrated/embedded networked lighting control, luminaire-level lighting control. Fixture, Zone, and plug-load control from one powerful device. LLLC - capable of switching, 0-10Vdimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud mesh network communication protocols. Offers the capability to set the maximum light output to a less-than-maximum state of an individual luminaire at the time of installation or commissioning. The High-End trim functionality is field reconfigurable via the Lightcloud mesh network communication protocols. The Lightcloud controller can be attached to the fixture, junction box, or electrical panel.
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
Electrical
Driver
Class P, Constant Current, 120-277V, 50-60Hz, 4kV, 120V: 0.16A, 208V: 0.09A, 240V: 0.08A, 277V: 0.07A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.48% at 120V, 11.46% at 277V
Power Factor
98.7% at 120V, 96.9% at 277V
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
