Performance
Watts
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan 50,000 Hours
Type
120V
208V
240V
277V
Input Watts
Dimensions

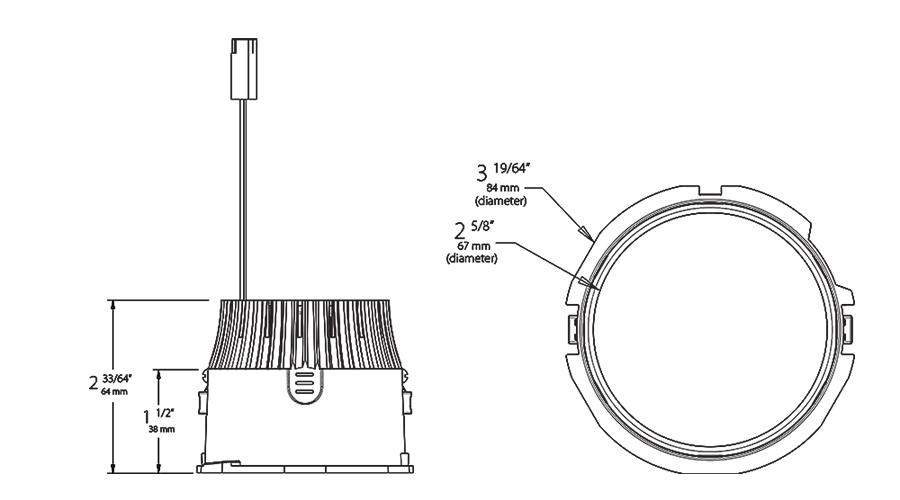

Link to Dimension Drawing

Weight: 0.8 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations in a covered ceiling
Performance
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Electrical
Driver
Class 2, 120-277V, 50/60 Hz, 120V: 0.18A, 208V: 0.07A, 240V: 0.06A, 277V: 0.05A
Dimming Driver
Compatible with TRIAC dimming at 120V.

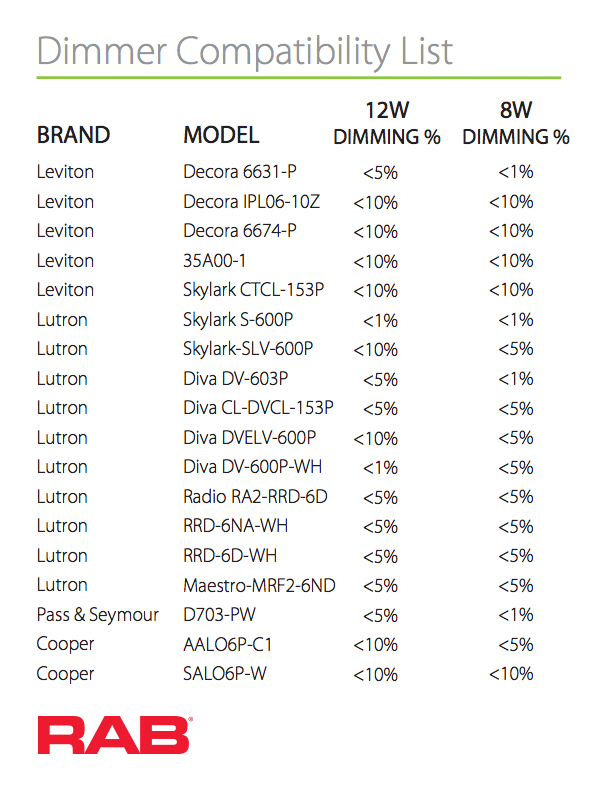

See dimmer compatibility guide here.
Surge Protection
4kV
Optical
Optic

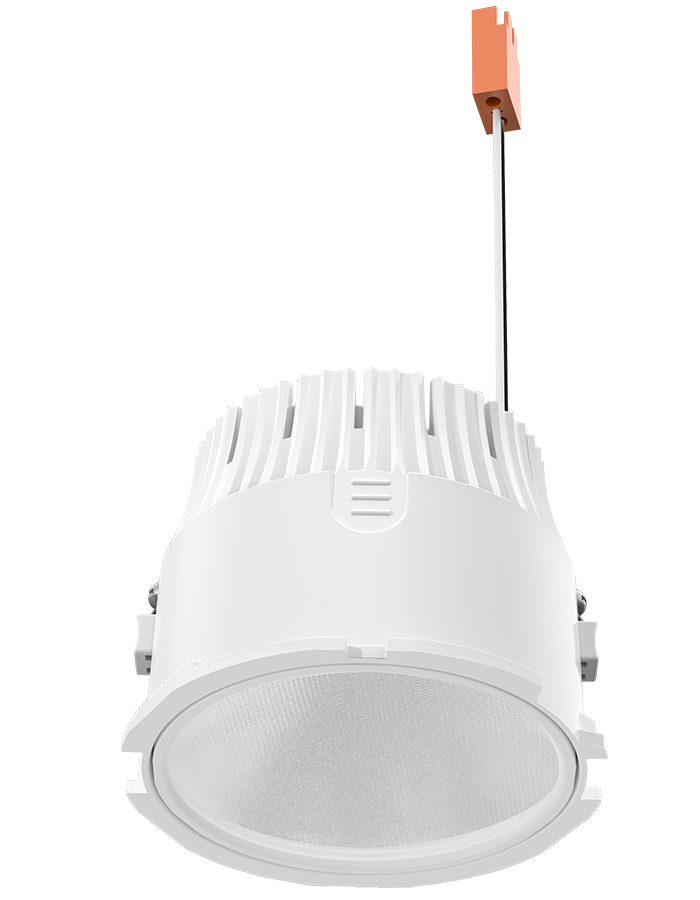

The HALED Light Engine comes standard with an 80° optic with frosted lens installed
Construction
IC Rated
Suitable for direct contact with insulation
Housing
Precision die-cast aluminum
Trim
Spun aluminum, Alzak anodized, and luxurious electroplated finishes available
Lens
Standard, forsted lens eliminates "hot spots", and helps provide smooth, uniform light
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Formulated for high durability and long-lasting color
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
