HALV10L927-MS-CU

View Technical Specs

Performance

Watts	14W
Color Temp	2700K (Residential Warm)
Lumens	211 lm
Efficacy	15.1 lm/W
Color Accuracy	96 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.12A
208V	0.07A
240V	0.06A
277V	0.06A
Input Watts	14W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 4.2 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations. Recommended for indoor use only.

ADA Compliant

Meets ADA Requirements for wall-mounted luminaires.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Performance

Lifespan

50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 60W Incandescent

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs; binned and mixed for uniform light output and color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

Constant Current, Class 2, 120-277VAC, 50/60Hz, 350mA or 640mA

Dimming Driver

0 - 10V (at 120-277V), TRIAC and ELV (at 120V only)

THD

19.9% at 120V, 21.7% at 277V

Power Factor

96.4% at 120V, 85.6% at 277V

Construction

Housing

Die-cast and extruded aluminum

Lens

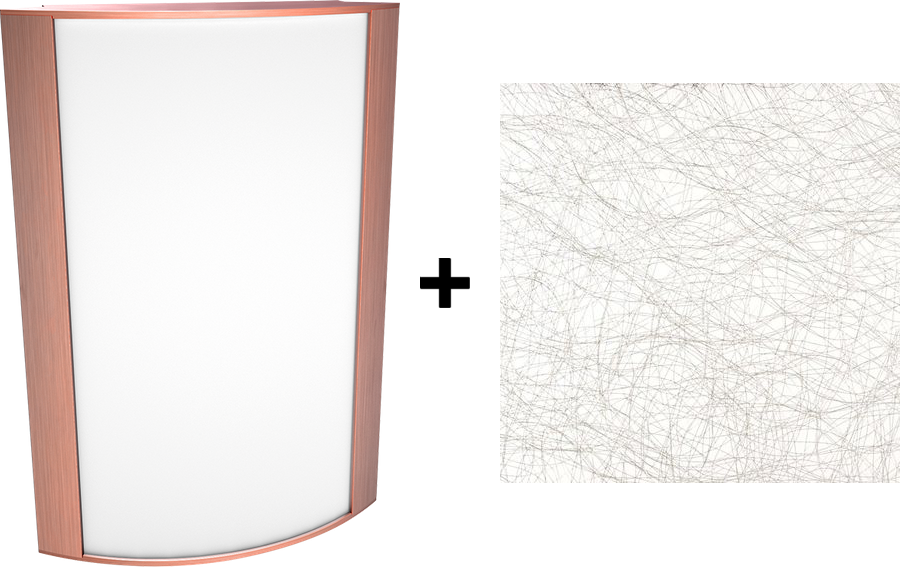

Acrylic lens with metallic spun silver print. See installation sheet for cleaning instructions.

Operating Temperature

-4°F(-20°C) to 104°F (40°C )

Green Technology

Mercury and UV free. RoHS-compliant components.

Finish

Luxuriously Electroplated Copper

Installation

Mounting

Wall mount with junction box included

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
