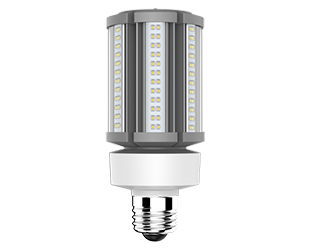

HID-36-E26-850-BYP/3SP

Replaces traditional metal halide or high pressure sodium HID lamp

Lamp includes on board low-voltage AUX port for lamp level sensor accessories

Rated for use in enclosed and open fixtures in dry or damp locations

4kV surge protection built in

50,000-Hour lifespan

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	36W
Color Temp	5000K
Lumens	5,400 lm
Efficacy	150
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	100-277V
Power Factor	>0.9
Flicker	<30%
THDi	<20%

Dimensions

Weight: 1.6 lbs

Technical Specifications

Performance

Product Type

HID Replacement

Input Wattage

36W

Lumens

5,400lm

Efficacy

150lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

150W Metal Halide or High Pressure Sodium

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

5000K

Color Accuracy (CRI)

>80 CRI

Beam Angle

360°

Electrical

THD

<20%

Power Factor

>0.9

Dimmable

Yes

Flicker

<30%

Operating Temperature

-30°C to 60°C

Input Voltage

100-277V

Operating Frequency

50/60Hz

Construction

Bulb Shape

Post top (sensor)

Endcap Material

Metal

Enclosure Material

Polycarbonate

Installation

Base Type

E26 Edison

Installation Orientation

Vertical and Horizontal

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
