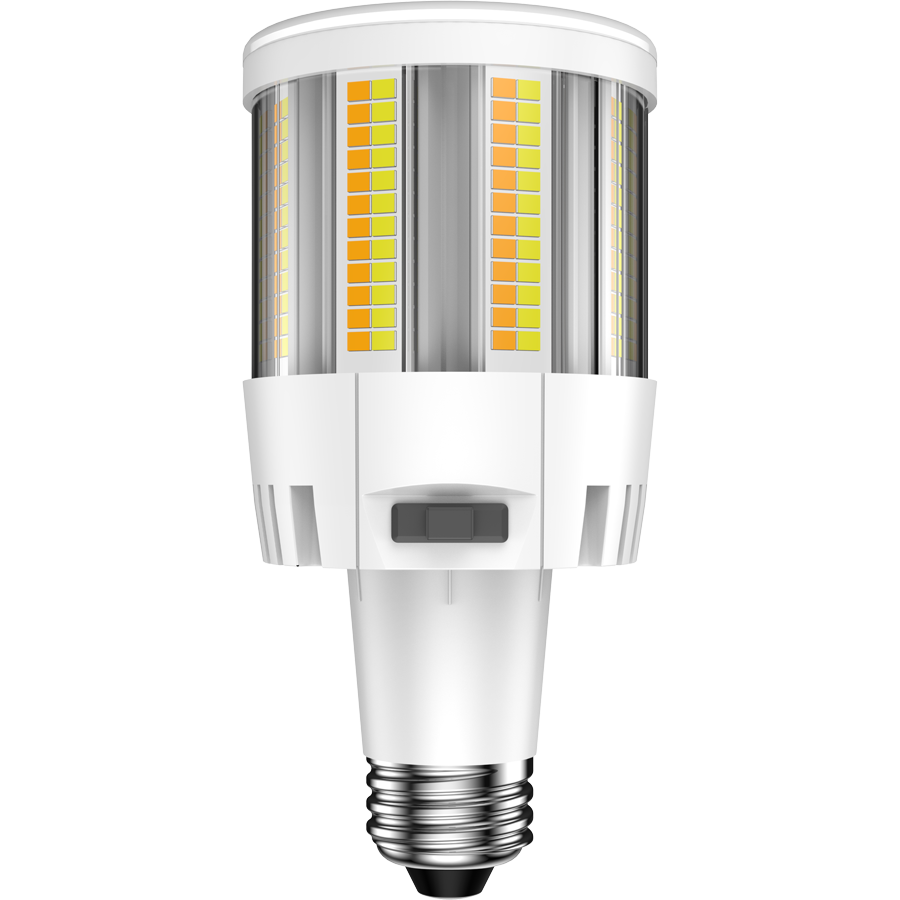

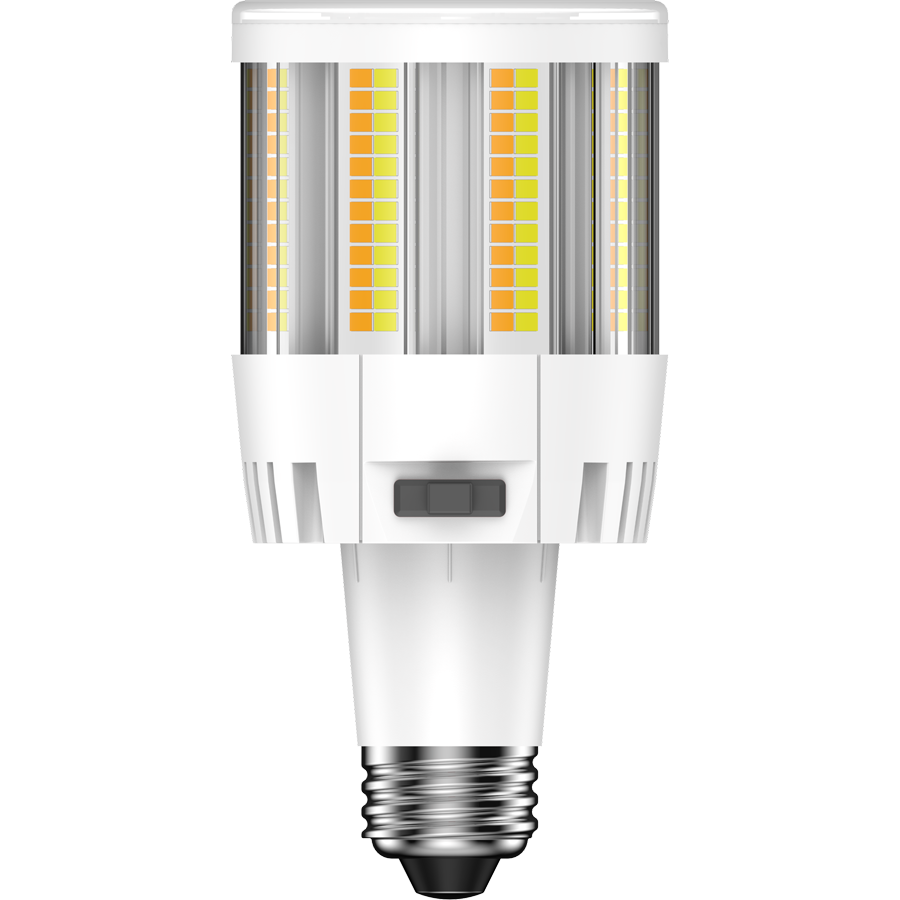

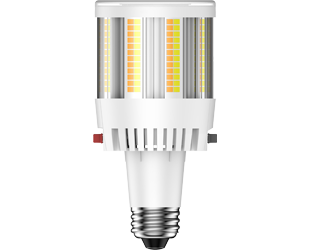

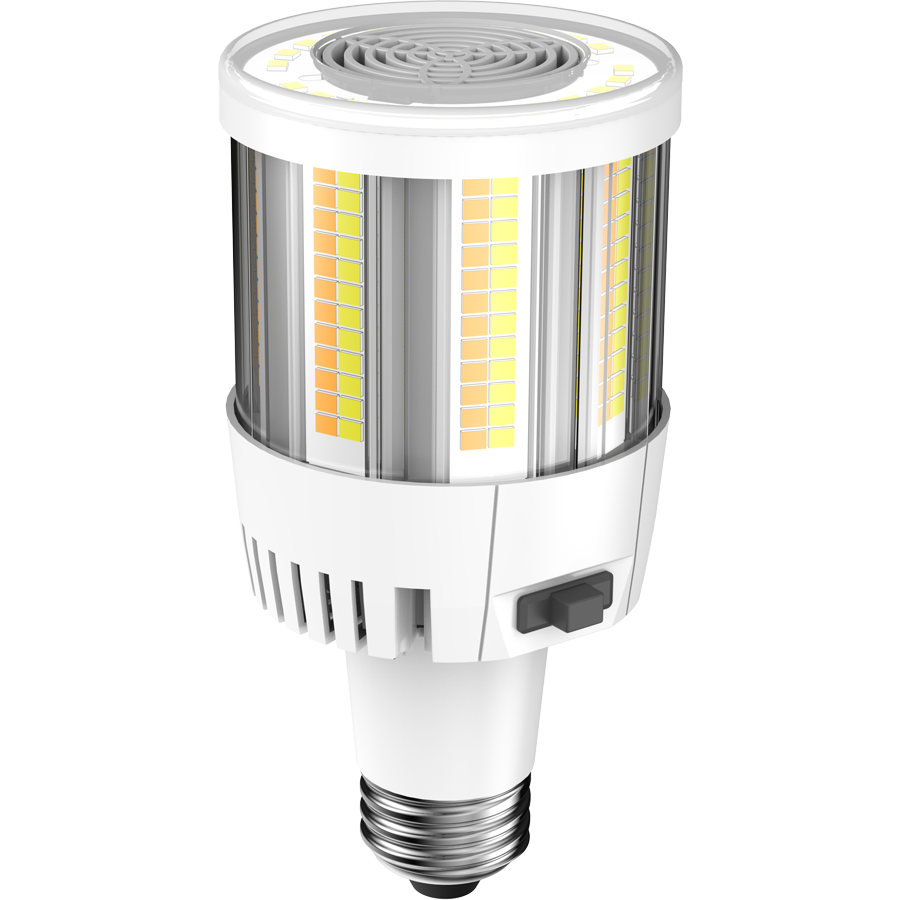

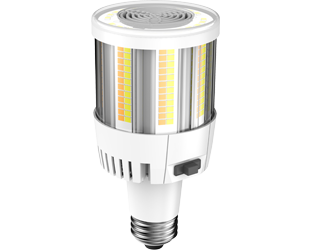

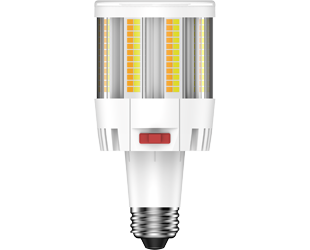

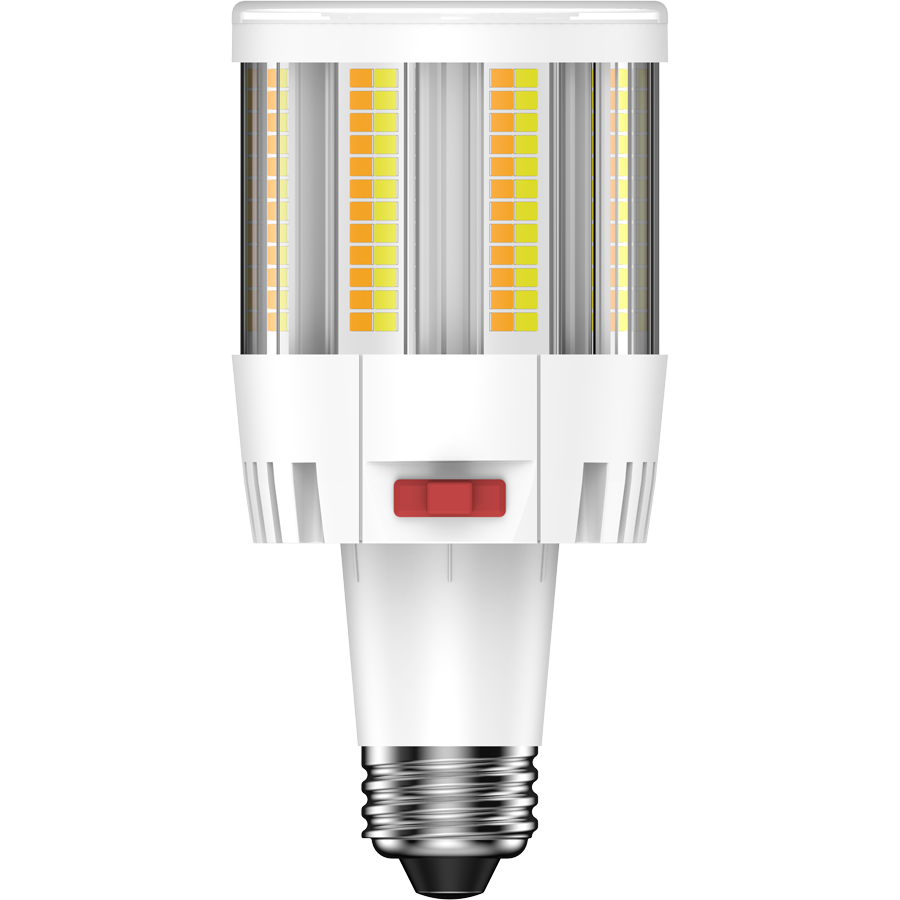

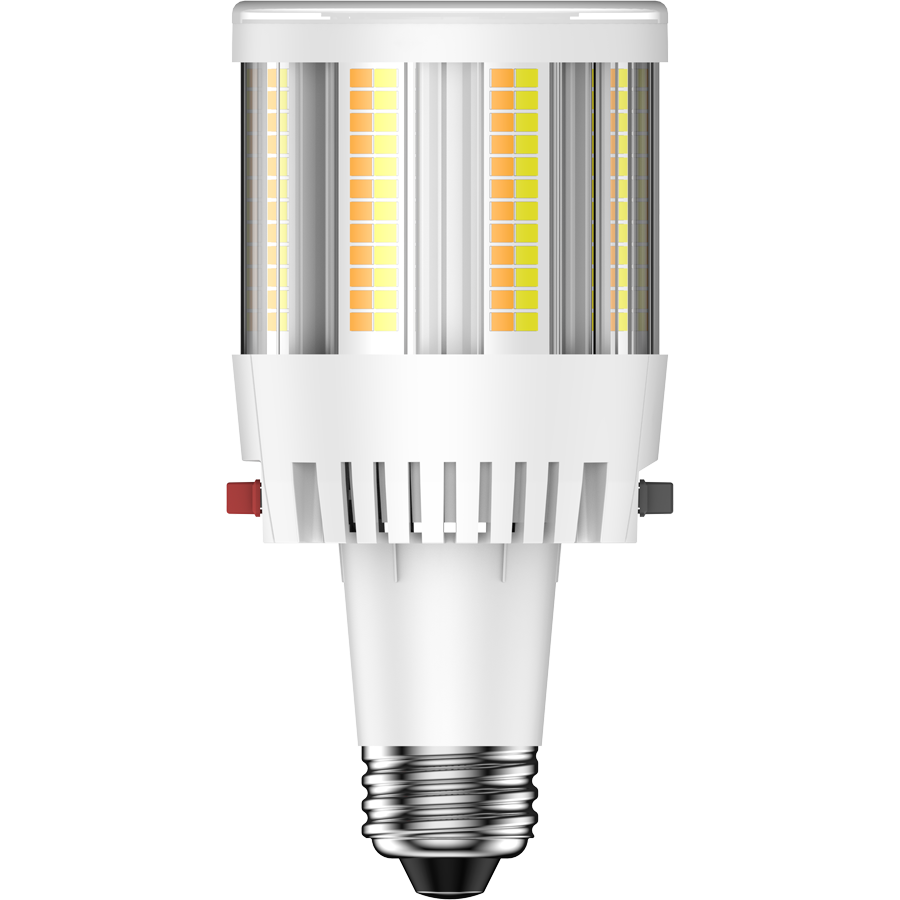

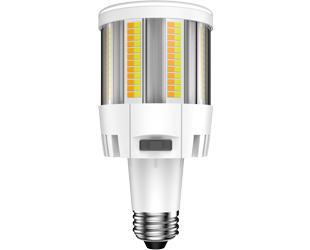

HIDFA-20S-E26-8CCT-BYP

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

HIDFA-20S-E26-8CCT-BYP

Active cooling allows for lamp sizes that are up to 30% smaller, allowing them to fit into tight spaces while more accurately mirroring the traditional ANSI footprint.

Lumen and CCT selectable via physical controls located on the lamp

Rated for open and enclosed fixtures with an IP64 listing and polycarbonate lens

Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

3000/4000/5000K Selectable color temperature

View Technical Specs

View Price & Availability

Performance

Watts	20/15/10W
Color Temp
Lumens	1,380-3,040 lm
Efficacy	135-155 lm/W
Color Accuracy	82 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277V
Power Factor	0.9
Flicker	<50%
THDi	N/A

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.5 lbs

Technical Specifications

Performance

Product Type

Post Top

Description

These active cooling post top lamps include field-adjustable wattage and CCT, and are available in 120-277V and 277-480V versions. With SKUs from 10W to 450W, this comprehensive family offers a true LED retrofit for existing 1500W HID lamps. Additionally, the active cooling feature allows these lamps to more accurately mirror the ANSI retrofit footprint that they're intended to retrofit, allowing for the reduction in overall length.

Wattage Equivalency

42W CFL,70W MH/HPS/HID

Input Wattage

20/15/10W

Lumens

2700/2040/1380@3000K
3040/2295/1550@4000K
2800/2115/1430@5000K

Efficacy

135/136/138@3000K
152/153/155@4000K
140/141/143@5000K

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

20%

Power Factor

≥0.9

Dimmable

Step dimming with physical switch on lamp body

Input Voltage

120-277V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

200mA

Input Current @ 208V (mA)

120mA

Input Current @ 240V (mA)

100mA

Input Current @ 277V (mA)

86mA

Operating Temperature

-40°F to 122°F (-40°C to 50°C)

Flicker

<50%

Surge Protection

4 kV

LED Characteristics

Beam Angle

280°

Color Temperature

Default: 5000K
Field adjustable via dip switch 3000/4000/5000K

Color Accuracy (CRI)

82 CRI

R9 Value

High color performance with R9 greater than 6

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Installation Orientation

Universal Installation

Base Type

E26 Edison

Construction

ANSI Size

ED17

Endcap Material

Metal

Enclosure Material

UV Resistant Polycarbonate housing

Lens Finish

Clear

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

IP Rating

IP54

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Certification Model Number

H20046(HIDFA-80S-EX39-8CCT-BYP)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Accessories

None

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
