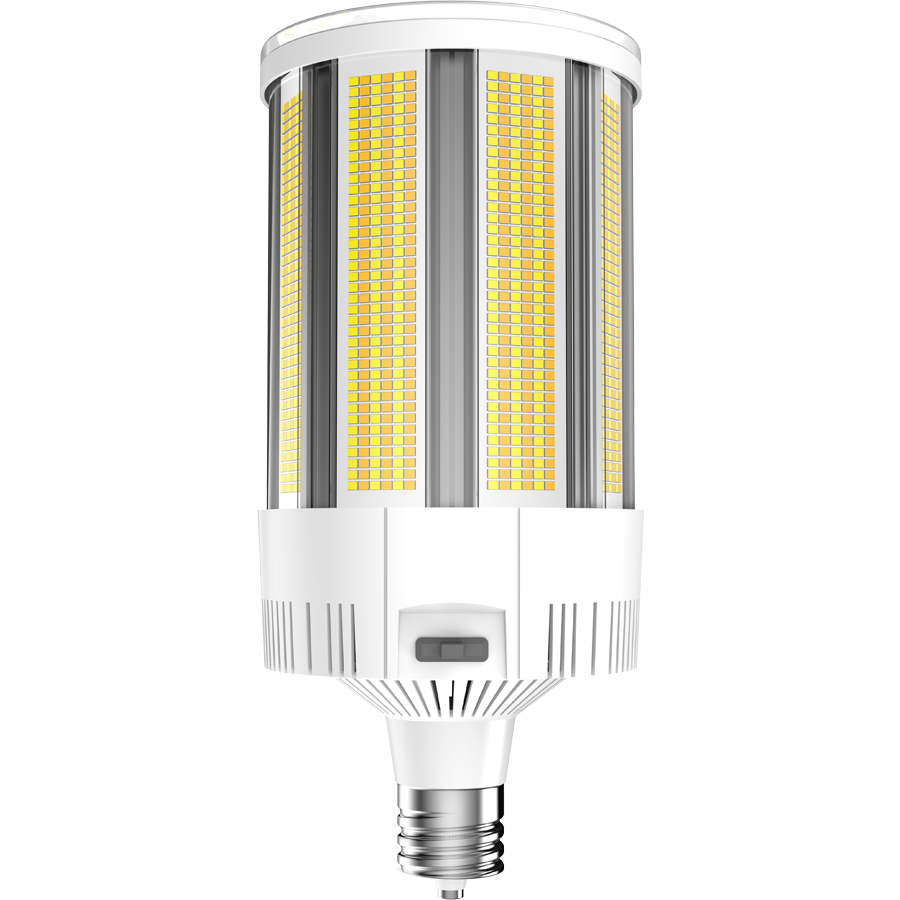

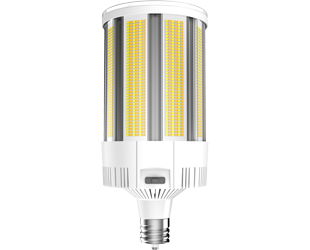

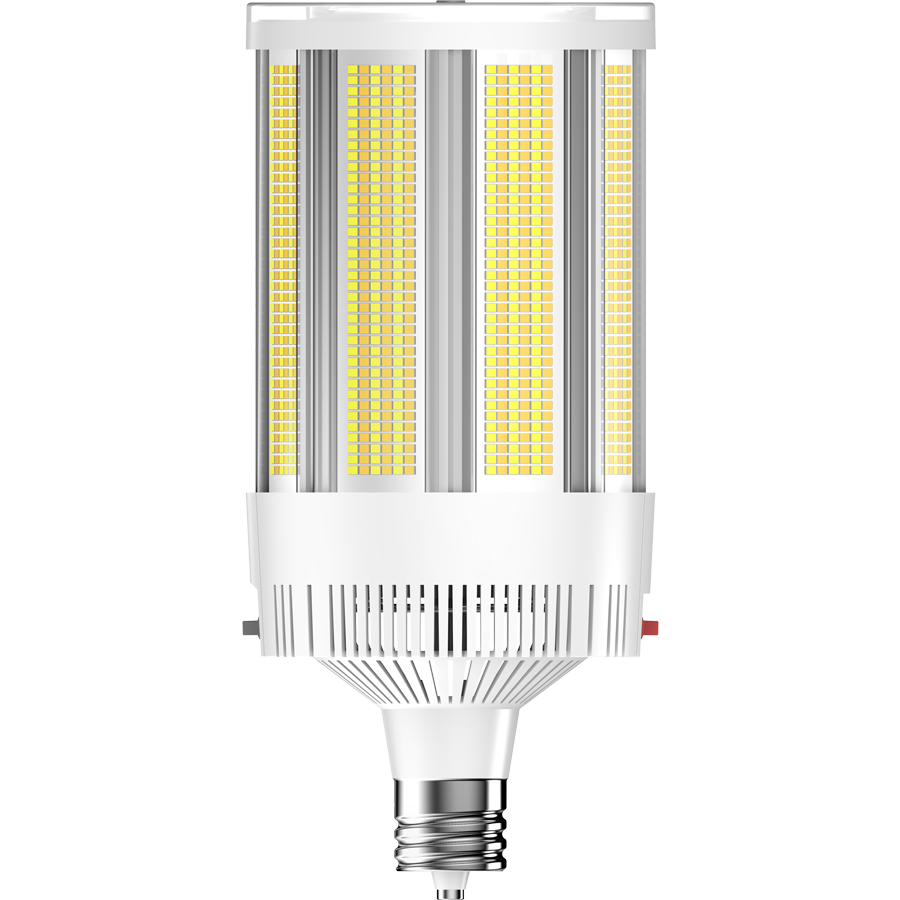

HIDFA-270S-EX39-8CCT-BYP

Spec Sheet IES File LM79 Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

HIDFA-270S-EX39-8CCT-BYP

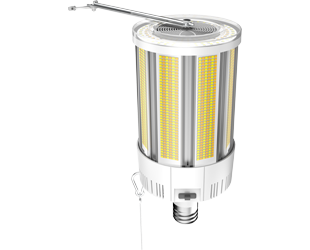

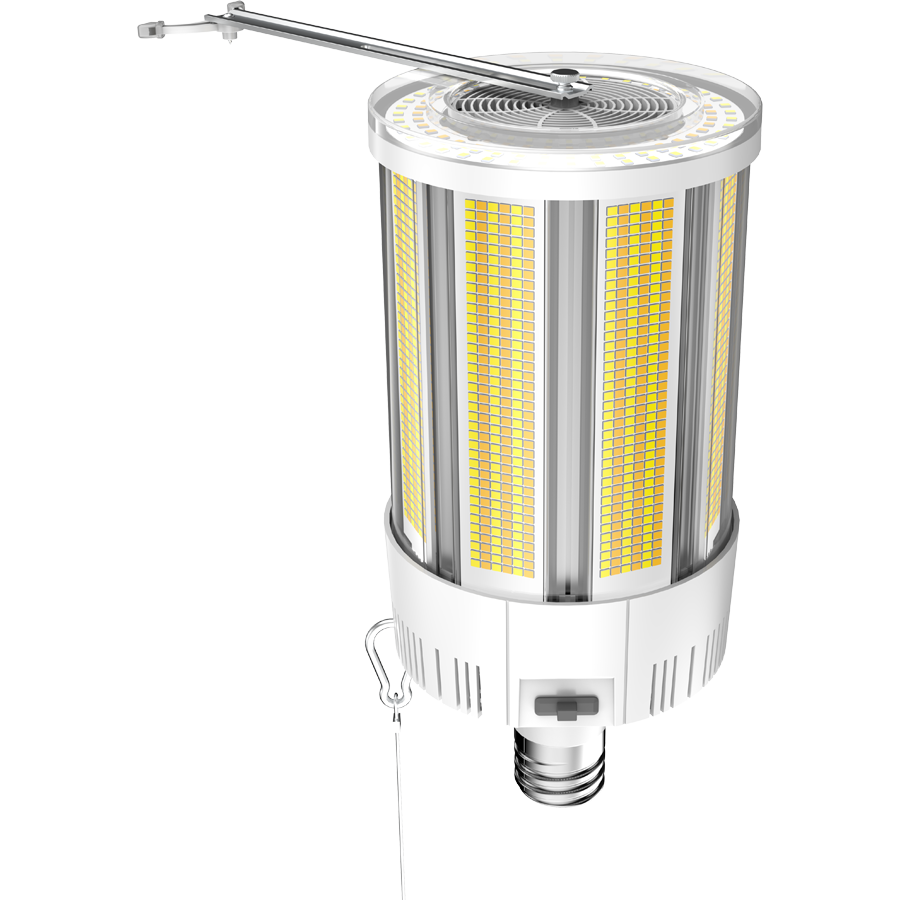

Active cooling allows for lamp sizes that are up to 30% smaller, allowing them to fit into tight spaces while more accurately mirroring the traditional ANSI footprint.

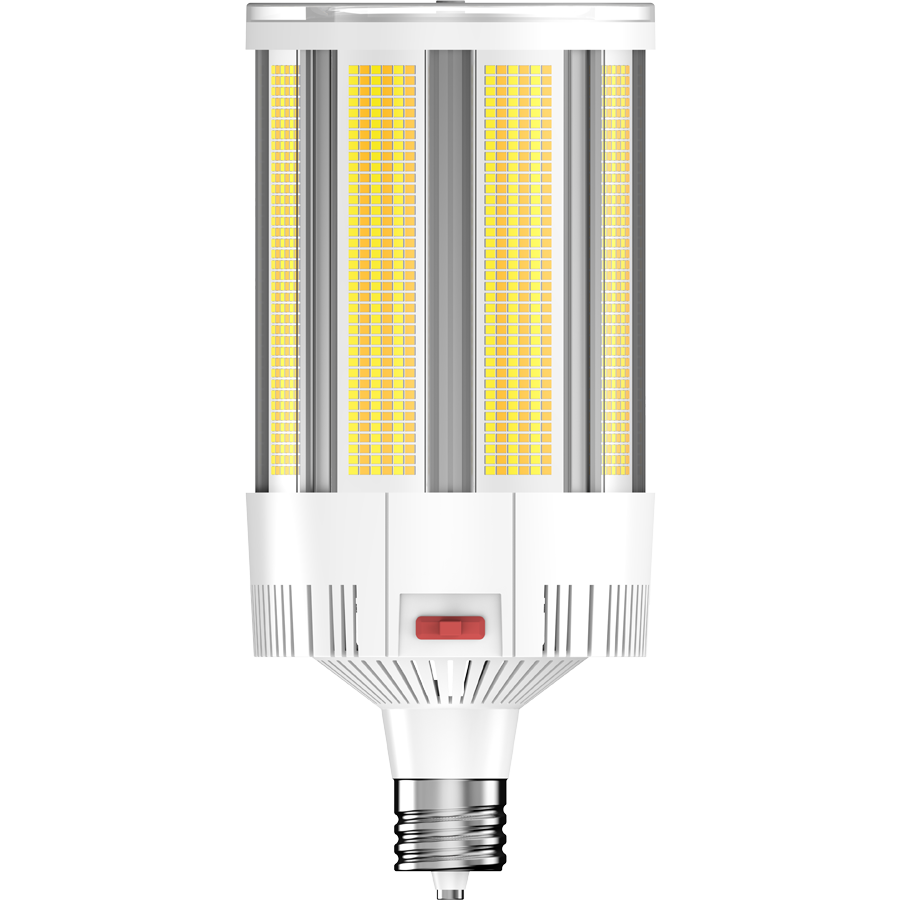

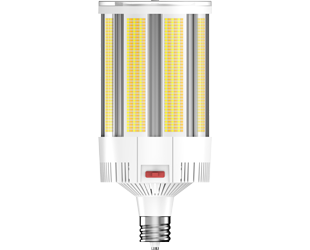

Lumen and CCT selectable via physical controls located on the lamp

Rated for open and enclosed fixtures with an IP64 listing and polycarbonate lens

Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast

3000/4000/5000K Selectable color temperature

View Technical Specs

View Price & Availability

Performance

Watts	270/200/135WW
Color Temp
Lumens	41,911-24,725 lm
Efficacy	160
Color Accuracy	83 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120-277V
Power Factor	0.9
Flicker	<50%
THDi	N/A

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 3.6 lbs

Technical Specifications

Performance

Product Type

Post Top

Description

These active cooling post top lamps include field-adjustable wattage and CCT, and are available in 120-277V and 277-480V versions. With SKUs from 10W to 450W, this comprehensive family offers a true LED retrofit for existing 1500W HID lamps. Additionally, the active cooling feature allows these lamps to more accurately mirror the ANSI retrofit footprint that they're intended to retrofit, allowing for the reduction in overall length.

Wattage Equivalency

700W Metal Halide

Input Wattage

270/200/135W

Lumens

135W
23,412lm @ 3000K; 24,450lm @ 4000K; 24,725lm @ 5000K;

200W
32,499lm @ 3000K; 34,581lm @ 4000K; 34,542lm @ 5000K;

270W
41,911lm @ 3000K; 45,330lm @ 4000K; 44,903lm @ 5000K

Efficacy

160lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

THD

20%

Power Factor

≥0.9

Dimmable

Step Dimming

Input Voltage

120-277V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

2,700mA

Input Current @ 208V (mA)

1,430mA

Input Current @ 240V (mA)

1,237mA

Input Current @ 277V (mA)

1,072mA

Operating Temperature

-40°F to 122°F (-40°C to 50°C)

Flicker

<50%

Surge Protection

4kV

LED Characteristics

Beam Angle

280°

Color Temperature

Field adjustable via dip switch 3000/4000/5000K

Color Accuracy (CRI)

83 CRI

R9 Value

High color performance with R9 greater than 12

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

UL Type B, Ballast Bypass

Installation Orientation

Universal Installation

Base Type

EX39 Exlusionary Mogul

Construction

ANSI Size

ED37

Endcap Material

Metal

Enclosure Material

UV Resistant Polycarbonate housing

Lens Finish

Clear

Compliance

Listings

UL Listed, UL Classified

Environment

Suitable for use indoors in dry and damp environments.

Fixture Rating

Suitable for use in enclosed fixtures

IP Rating

IP54

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.

Certification Model Number

H20050(HIDFA-270S-EX39-8CCT-BYP)

California Title 20 Compliant

California Title 24 JA8 Compliant

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
