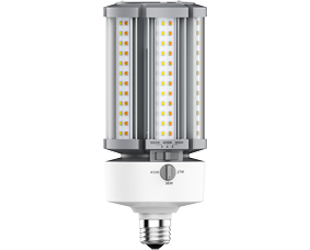

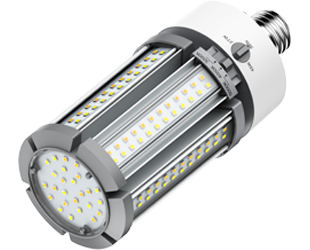

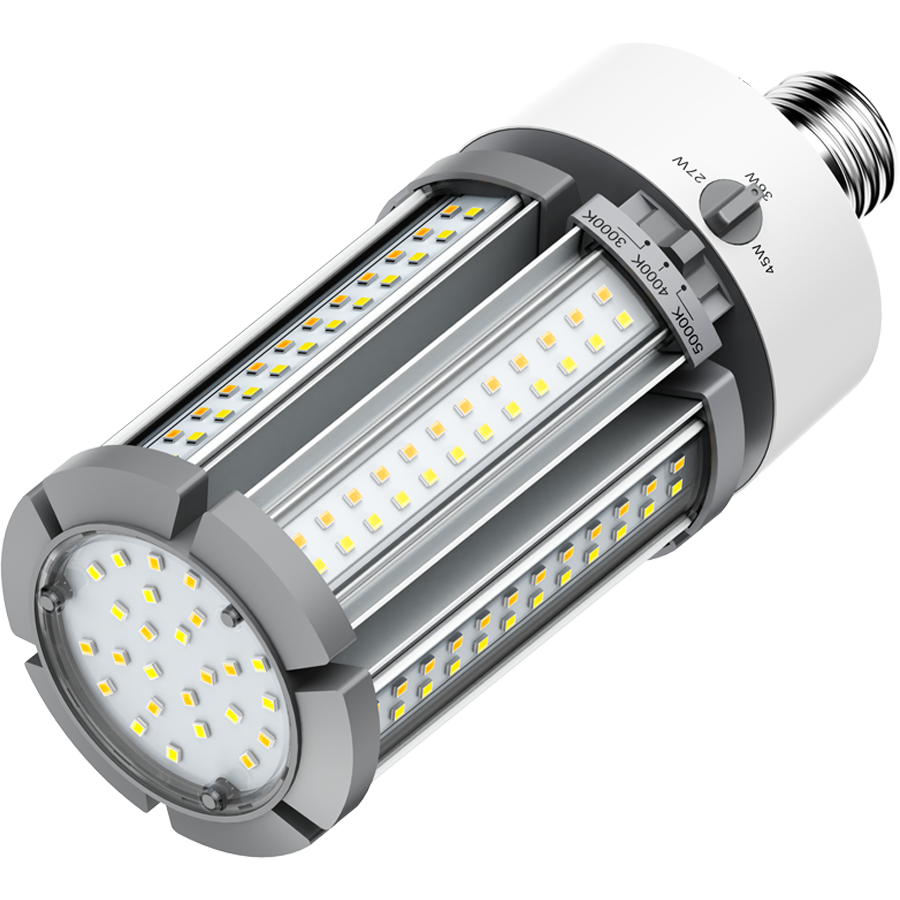

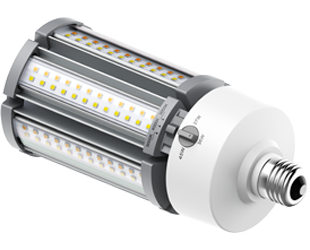

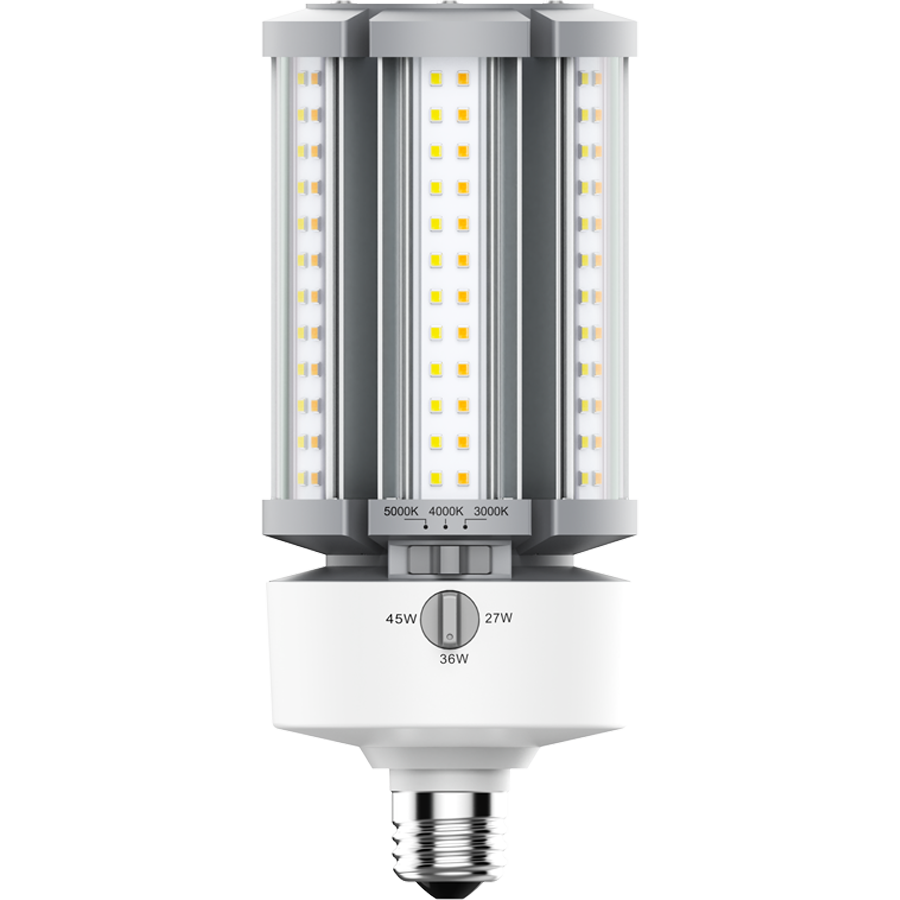

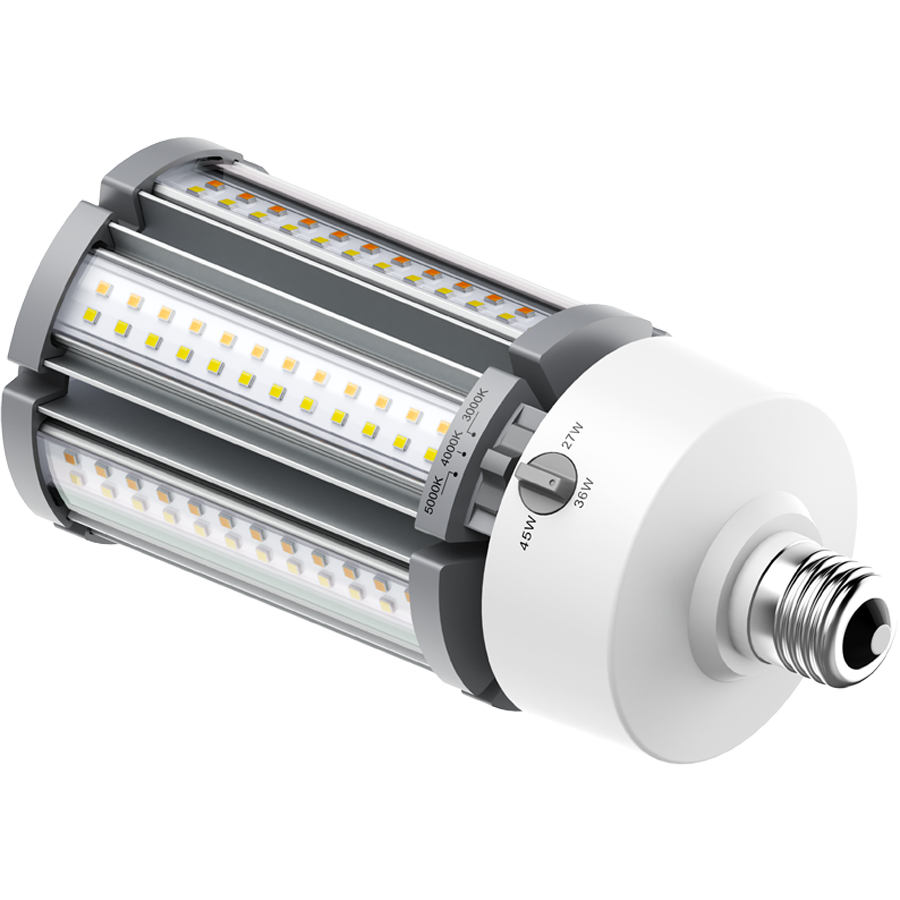

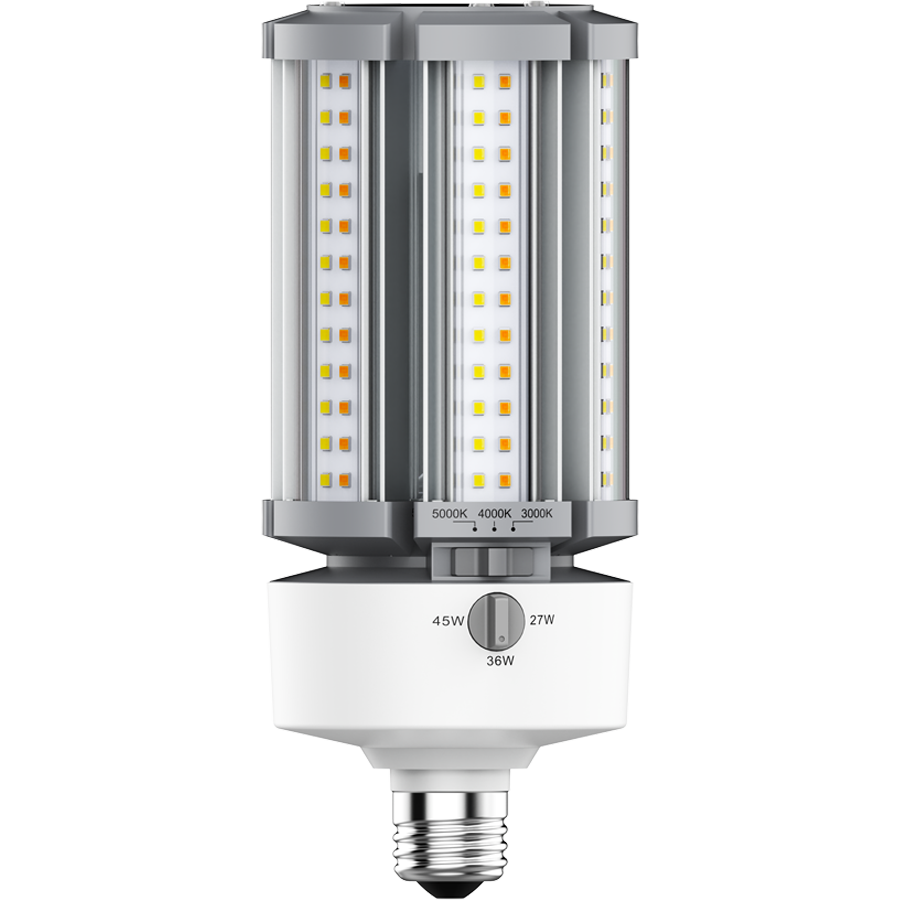

HIDFA-45S-E26
HIDFA-45S-E26
- Replaces traditional metal halide or high pressure sodium HID lamp
- Adjustable wattage and CCT allows for in-field customization
- Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Rated for use in enclosed fixtures in dry or damp locations
- Universal 100-277V voltage for flexible installation
Performance
| Watts | 45/36/27W |
| Color Temp | 3000/4000/5000K |
| Lumens | 6,970/5,580/4,185 lm |
| Efficacy | 155 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Input Voltage | N/A |
| Power Factor | N/A |
| Flicker | N/A |
| THDi | N/A |
Dimensions
Weight: 1.4 lbs
Technical Specifications
Performance
Product Type
Field-Adjustable Post Top
Description
Field adjustable lumen output and CCT provide installation flexibility when replacing traditional HID. Integrated AUX port to add lamp-level sensor control.
Wattage Equivalency
175W MH
Input Wattage
45/36/27W
Lumens (Nominal)
6,970/5,580/4,185lm
Efficacy
155lm/W
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Non-isolated power 100-277V 50/60 Hz; 120V: 386.6mA; 208V: 230.16mA; 240V: 206.04mA; 277V: 180.51mA
THD
<20%
Power Factor
>0.9
Dimmable
Yes, by adjusting the wattage (light output) dipswitch located on the lamp.
Input Voltage
100-277V
Operating Temperature
-22°F to 140°F (-30°C to 60°C)
Flicker
50%
Surge Protection
4 kV
Emergency Operation
Not for emergency use.
Sensor Settings
Sensor Port?
No
LED Characteristics
Beam Angle
360°
Color Temperature
Default: 5000K
Field adjustable via dip switch 3000/4000/5000K
Field adjustable via dip switch 3000/4000/5000K
Color Accuracy (CRI)
80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<6-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Installation Orientation
Universal mounting, horizontal or vertical
Base Type
E26 Edison
Construction
Shape
Post Top
Finish
White + Gray
Endcap Material
Metal
Enclosure Material
Polycarbonate
Compliance
Listings
UL Listed, UL Classified
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
