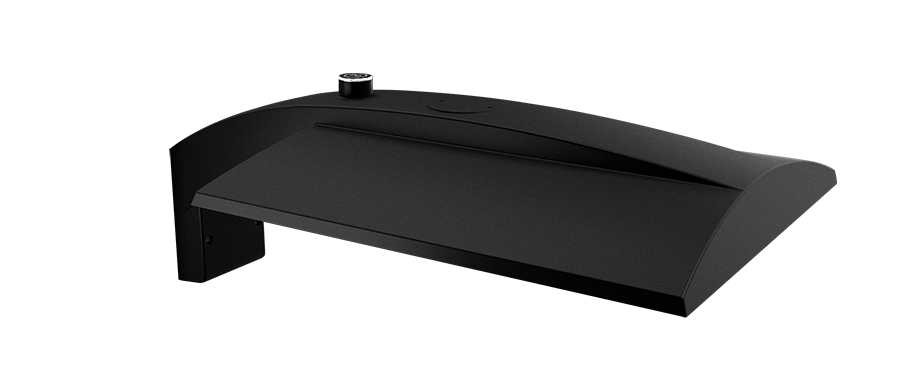

IVAT5S-100LPA730KU/LC

Spec Sheet IES File LM79 Instructions Master Specification Features Spec Sheet EZ Layout

0-10V Dimming, standard

100,000-Hour LED lifespan

View Technical Specs

View Price & Availability

Performance

Watts	94W
Color Temp	3000K (Warm)
Lumens	10,032 lm
Efficacy	106.2 lm/W
Color Accuracy	83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.83A
208V	0.48A
240V	0.42A
277V	0.36A
Input Watts	94.5W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 15.0 lbs

Technical Specifications

Installed with Lightcloud

Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.

Learn More

Lightcloud

Lightcloud Controller Installed

Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80

Title 24 Compliant

An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-H62Q30

Electrical

Driver

Class 2, 50/60Hz, 120-277V, 4kV standard, 10kV optional

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

5.1% at 120V, 29.3% at 277V

Power Factor

99.8% at 120V, 96.4% at 277V
