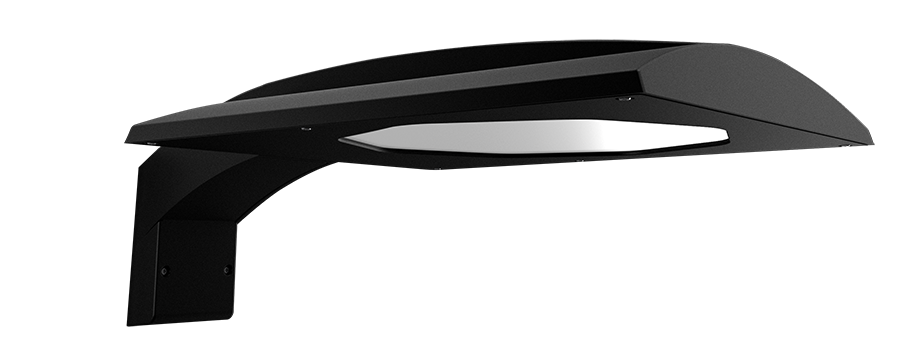

IVAT5S-100LPA750KH
Performance
| Watts | 94W |
| Color Temp | 5000K (Cool) |
| Lumens | 11,259 lm |
| Efficacy | 115.7 lm/W |
| Color Accuracy | 75 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 97.3W |
Dimensions
Weight: 15.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-HBALFX
DLC Product Code: S-HBALFX
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
12.3% at 480V
Power Factor
97.2% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
