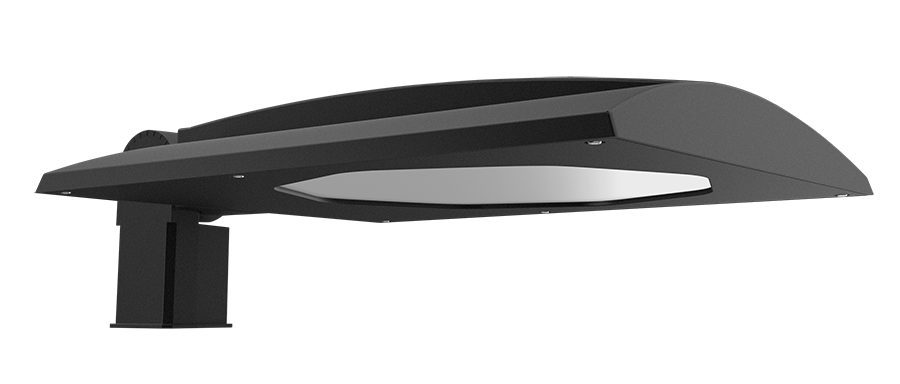

IVAT5S-100LSF740ZH
Performance
| Watts | 94W |
| Color Temp | 4000K (Neutral) |
| Lumens | 10,961 lm |
| Efficacy | 115 lm/W |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 95.3W |
Dimensions
Weight: 13.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Title 24 Compliant
An IVELOT edge-lit area light can be used with a motion sensor or photocell control option to comply with 2016 Title 24 Part 6 Section 130.2 (a,b,v)
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Electrical
Driver
Class 2, 50/60Hz, 480V 4kV standard, 10kV optional
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
11.5% at 480V
Power Factor
97.1% at 480V
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations at 25°C
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
