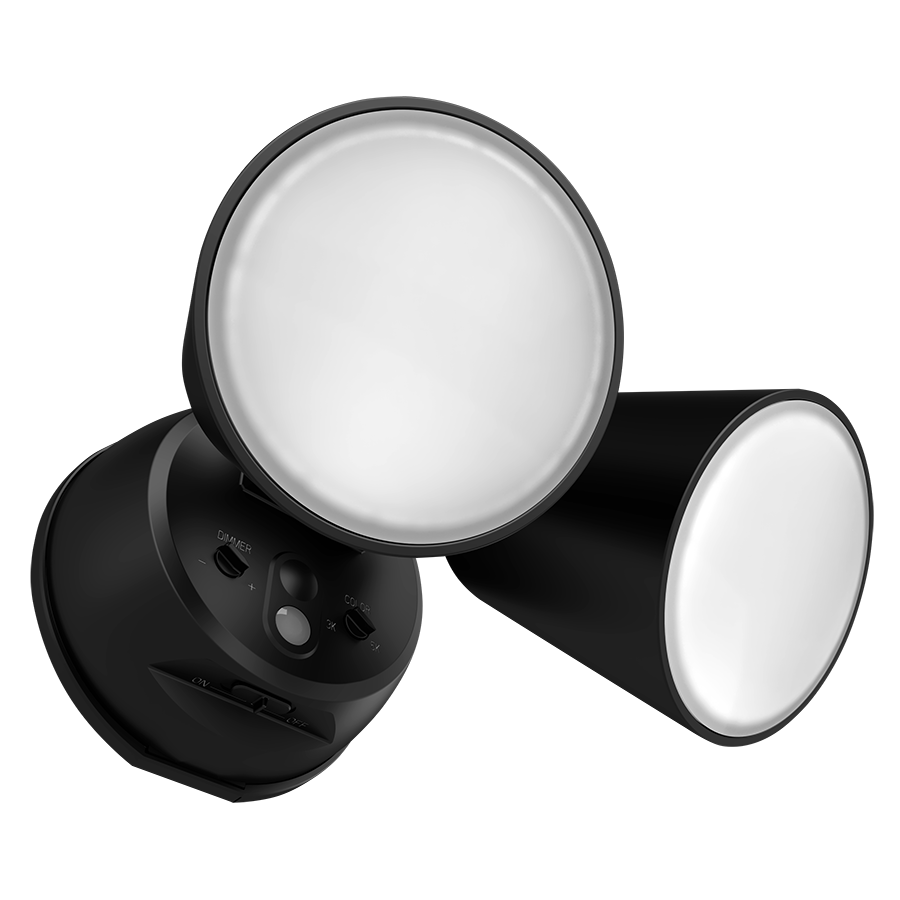

L2XB - RAB Lighting

L2XB

Spec Sheet IES File LM79 Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet EZ Layout

L2XB

100,000-Hour LED lifespan

DLC Listed

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	20W
Color Temp	3000K-5000K
Lumens	2,000/2,072/2,094 lm
Efficacy	102/105.2/105.8 lm/W
Color Accuracy	81/84/84 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.20A
208V
240V
277V
Input Watts	19.6/19.7/19.8W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.4 lbs

Technical Specifications

Field Adjustability

Color Tunable

3 discrete color temperatures

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP65 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

LED Characteristics

LEDs

Long-life, high-efficacy, discrete, surface-mount LEDs

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

20W: Constant Current, Class 1, 120V, 60 Hz,120V: 0.20A

THD

13.37% at 120V

Power Factor

97.9% at 120V

Dim to Off

Aux Power Supply

Photocell

Integrated photocell included with on/off switch (factory default: off)

Sensor Settings

Surge Protection

1 kV

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 122°F (50°C)

Housing

Polycarbonate

Reflector

Polycarbonate

Effective Projected Area (EPA)

2000 square foot

Lens

Polycarbonate lens

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

Wall mount

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
