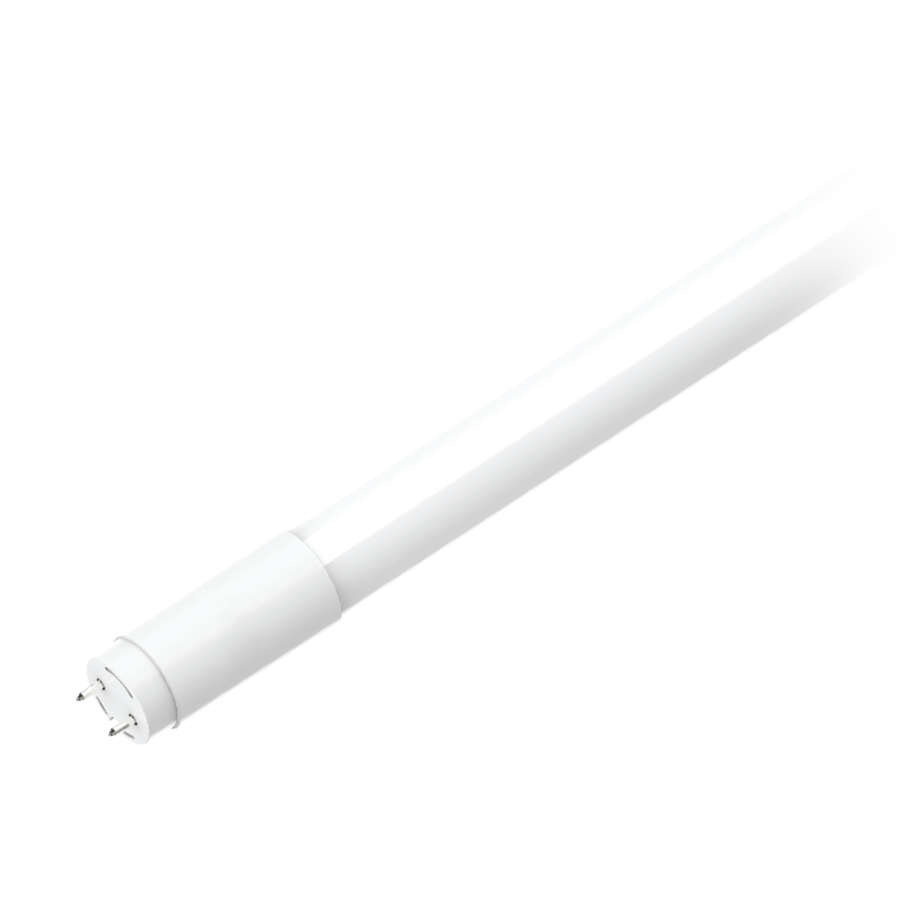

LCBT8-18-48P-8TW-SD-BYP-SS
LCBT8-18-48P-8TW-SD-BYP-SS
- Direct Connect to the Lightcloud Blue mobile app via Bluetooth, no Gateway or Hub required
- Use mobile device to configure features for On/Off Control, Dim Level, Color Temperature, Schedules, Scenes, SmartShift and more
- Integral driver enables lamp to be wired directly to line voltage without need for an external driver or ballast
- Single ended and double ended wiring method
- Tunable White 2700 - 6500K with smooth transition between color temperatures
- Circadian SmartShift Capable to sync with local sunrise/sunset
- Optional integrated microwave sensor for motion detection
Performance
| Watts | 18W |
| Color Temp | 2700K-6500K |
| Lumens | 2,200 lm |
| Efficacy | 122 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.18A |
| 208V | 0.10A |
| 240V | 0.09A |
| 277V | 0.08A |
| Input Watts | 18W |
Dimensions
Weight: 0.5 lbs
Technical Specifications
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patent-pending Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
DLC system - N1XMLOEATBA
Learn more at www.lightcloud.com
Gateway Required
No
Communication Protocol
Bluetooth Mesh
SmartShift
SmartShift is the most advanced - yet easiest to use - circadian lighting system, which syncs white color tuning with the local sunrise and sunset.
Range
Lightcloud: Lightcloud: Up to 100 feet between standard building materials; Up to 1,000 feet clear line of sight.
Lightcloud Blue: Lightcloud Blue: Up to 60 feet between standard building materials; Up to 200 feet clear line of sight.
Lightcloud Blue: Lightcloud Blue: Up to 60 feet between standard building materials; Up to 200 feet clear line of sight.
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 5 times and return to full brightness.
Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.
Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT.
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'. The device will flash on/off 5 times and return to full brightness.
Method 2: Manual
Power the device off and on 5x consecutively. Do not allow less than 4s to elapse from switching off to on. Do not allow more than 2s to elapse from switching on to off. The device will flash 3x, then reset to 100% brightness at default CCT.
Method 3: Rapid Reset Tool
The Rapid Reset process must be done by a professional electrician qualified by RAB. Reach out to your RAB sales manager to request a Rapid Reset Tool. The tool simply needs to be placed directly on the small Lightcloud Blue logo on the device for 2s or until the lamp/luminaire flashes 3x, then resets to 100% brightness at the default CCT.
Performance
Product Type
Linear Tube
Lumens
2,200lm
Electrical
THD
≤25%
Power Factor
>0.9
Dimmable
Yes, via the Lightcloud Blue mobile app
Input Voltage
120-277V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
180mA
Input Current @ 208V (mA)
100mA
Input Current @ 240V (mA)
90mA
Input Current @ 277V (mA)
77mA
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
Flicker
<50%
LED Characteristics
Beam Angle
160°
Color Temperature
Tunable White 2700K - 6500K
Color Accuracy (CRI)
>80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<5-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Installation Method
UL Type B, Ballast Bypass
Construction
Base Type
G13
Nominal Length
4 ft
Bulb Shape
T8
Enclosure Material
Plastic
Lens Finish
Frosted
Compliance
Listings
UL Recognized, UL Classified
Environment
Suitable for use in dry and damp environments
Fixture Rating
Suitable for use in enclosed fixtures
T20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PFVCSQFP
DLC Product Code: PFVCSQFP
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Note
All values are typical (tolerance +/- 10%)
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
