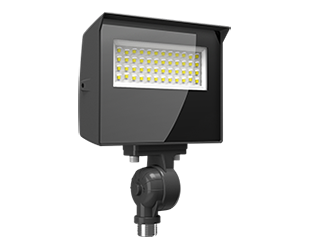

LFLED8YW
LFLED8YW
- Microprismatic diffuser produces a smooth distribution and low glare
- 4H x 4V NEMA beam spread
- Optional spot and narrow spot hood reflectors available
- Runs cool; prevents burning foliage or fingers
- 5-Year, No-Compromise Warranty
Performance
| Watts | 8W |
| Color Temp | 3000K (Warm) |
| Lumens | 511 lm |
| Efficacy | 71 lm/W |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.14A |
| 208V | 0.09A |
| 240V | 0.08A |
| 277V | |
| Input Watts | 7.2W |
Dimensions
Weight: 1.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
LED Characteristics
LED
High-output, long-life LED
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2017.
Optical
Spot Lens
Optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. Great for accent lighting or grazing buildings for an artistic touch. Spot reflector kit available here.
Narrow Spot Lens
Optional narrow spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. Great for accent lighting or grazing buildings for an artistic touch. Narrow spot reflector kit available here.
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Thermal Management
Optimized using computational fluid dynamics software to ensure long LED and driver lifespan
Housing
Precision die-cast aluminum, lens frame and mounting arm
Lens
Microprismatic diffuser produces a smooth distribution and low glare
Gaskets
High-temperature silicone
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The design of the LFLED is protected by Taiwan Patent 01510966 and pending patents in US, Canada, China, and Mexico
Electrical
Driver
Constant Current, Class 2, 50/60 Hz, 100-240VAC: 0.20Amps
