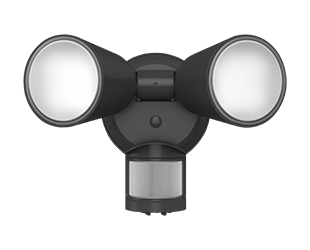

LU160
Performance
| Watts | 20W |
| Color Temp | 3000K-5000K |
| Lumens | 2,023-2,096 lm |
| Efficacy | 104.3-108.6 lm/W |
| Color Accuracy | 81-83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.17A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 19.3-19.4W |
Dimensions
Weight: 1.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Sensor Settings
Operating Voltage
120 Vac @ 60Hz
Operating Current
0.17A
Light Output
10% to 100% stepless dimmer
Detection Area/Sensor Sensitivity
30% ~100%
Detection Area
Maximum diameter 50 ft 160°
Hold Time
5s~10min
Threshold Daylight Sensor
5~2000 Lux
Color Temperature
Min 3000K to Max 5000K field-adjustable
Detection Angle
160°
Mounting Height
Max 10 ft (Wall or Eaves mounted/Ceiling mounted)
Detection Range
Max radius 50 ft (wall mounted)
Operating Temperature
-4°F to 122°F(-20°C to 50°C)
IP Rating
IP65
Surge Protection
1 kV
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
IC
ASCHIP
Dimming
0-10V
Total Lumen
2200lm
Construction
Effective Projected Area (EPA)
2000 square foot
Housing
Polycarbonate
Lens
Polycarbonate lens
Reflector
Polycarbonate
Tunable Switch Settings
Dimmer
Minimum Setting (from): 0% brightness
Maximum Setting (up to): 100% light output
Maximum Setting (up to): 100% light output
Color
Minimum Setting (from): 3000K
Maximum Setting (up to): 5000K
Maximum Setting (up to): 5000K
Photocell
Minimum Setting (from): The light turns on only when it is dark enough
Maximum Setting (up to):The light will turn on in the daylight, sunset or in the darkness
Maximum Setting (up to):The light will turn on in the daylight, sunset or in the darkness
Time
Minimum Setting (from): The light turns OFF after 5 sec. when no motion is detected.
Maximum Setting (up to): The light turns OFF after 10 min. when no motion is detected.
Maximum Setting (up to): The light turns OFF after 10 min. when no motion is detected.
Sens
Minimum Setting (from): 30% for short detection range (min 10 ft.)
Maximum Setting (up to): 100% for long detection range (max 50 ft.)
Maximum Setting (up to): 100% for long detection range (max 50 ft.)
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Electrical
THD
11.36% at 120V
Power Factor
98.2% at 120V
