• Adjustable clamps for quick, secure installation
  • Accommodates ceilings 1/2" - 2 1/2" thick
  • Butterfly bracket allows mounting with bar stock, "C" channel, 1/2" conduit or nailer bars
View Technical Specs

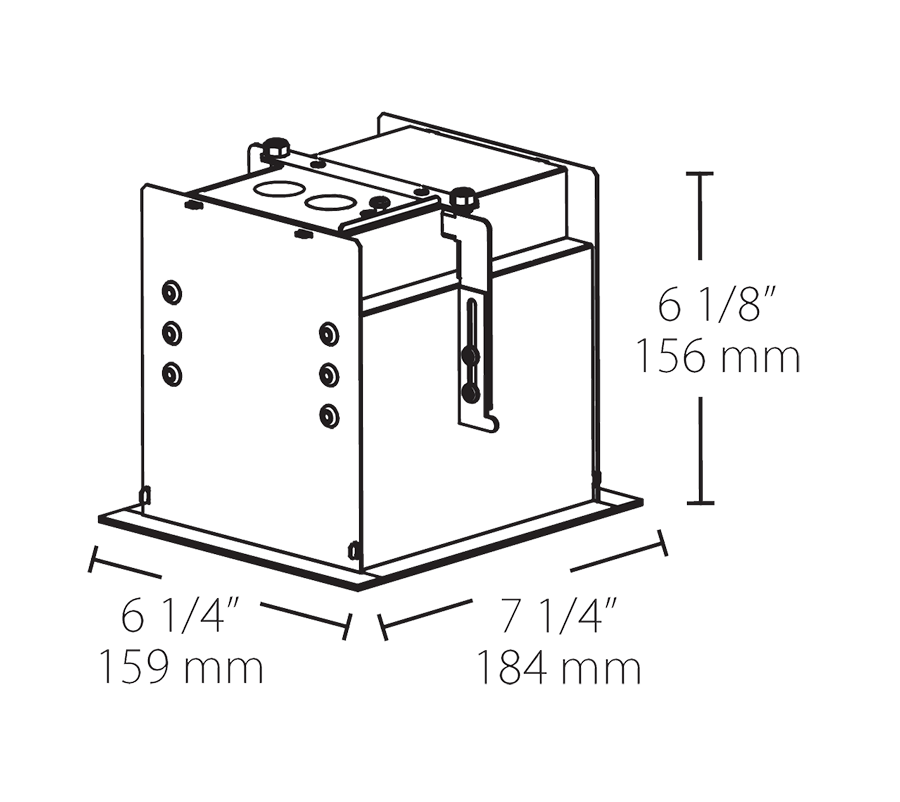

Dimensions
Link to Dimension Drawing

Weight: 3.8 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations
Construction
Housing Component
This component must be ordered with the Multi-Head gear tray in order to make a complete fixture. See here for Multi-Head gear tray.
Housing
Professional-grade, heavy-gauge steel construction with 1/2" trim and three adjustment heights for gear trays
Easy Installation
Ceiling clamps install quickly and hold housing securely. Clamp ceilings from 1/2" to 2 1/2" thick with course and fine adjustments.
Trim
1/2" Trim
Installation
Mounting
Housing includes nailer bars and butterfly brackets. Brackets also accommodate mounting with 1/4" to 1/2" bar stock, C channel or 1/2" conduit.
