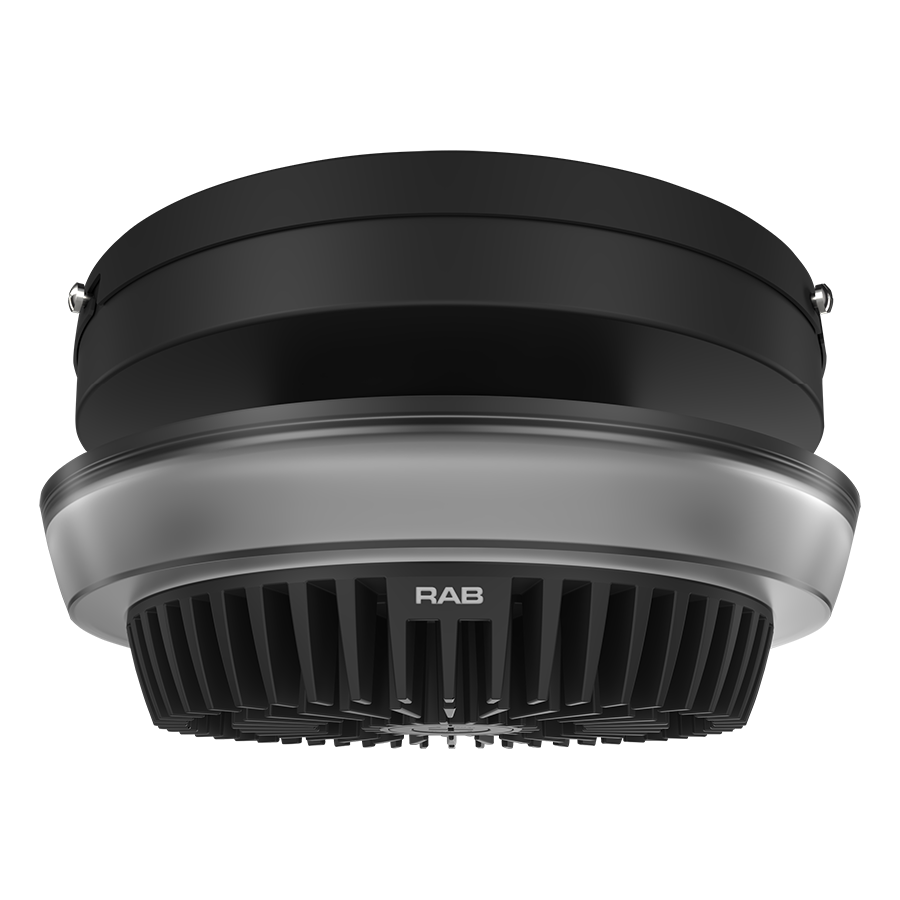

PARK34-40/E

Spec Sheet IES File LM79 Instructions Sell Sheet Family Spec Sheet Spec Sheet EZ Layout

PARK34-40/E

40W 3000/4000/5000K

0-10V Dimming, standard

100,000-hour LED lifespan

IP65 rating protects against dust and water

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	40/30/20W
Color Temp	3000/4000/5000K
Lumens	3,160-5,899 lm
Efficacy	130.9-156.1 lm/W
Color Accuracy	82-86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.34A/0.25A/0.17A
208V
240V
277V	0.15A/0.11A/0.09A
Input Watts	21.5-40.5W

EZ-Layout

Create Custom Lighting Layout

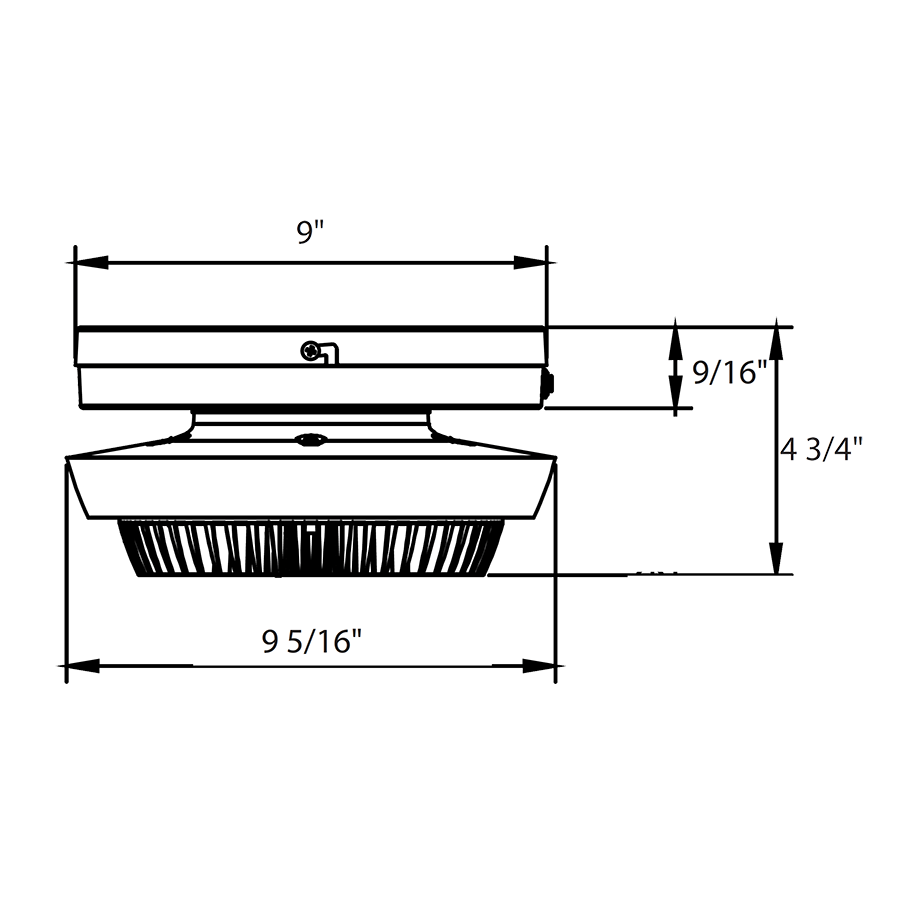

Dimensions

Weight: 2.9 lbs

Technical Specifications

Compliance

UL Listed

Suitable for wet locations

IP Rating

Ingress protection rating of IP65 for dust and water

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-80BGPZ

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Consistency

7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Electrical

Driver

40W: Constant Current, Class 1, 120V or 277V, 50/60Hz, 120V: 0.34A or 277V: 0.15A
30W: Constant Current, Class 1, 120V or 277V, 50/60Hz, 120V: 0.25A or 277V: 0.11A
20W: Constant Current, Class 1, 120V or 277V, 50/60Hz, 120V: 0.17A or 277V: 0.09A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

Power Factor

99.3% at 120V, 97.5% at 277V

Voltage

120 or 277V

Dim to Off

Yes

Surge Protection

4 kV

Aux Power Supply

Yes

Battery Backup

Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120V or 277V.

Battery Backup Light Loss Factor

40W: 10%
30W: 13%
20W: 20%

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

40W: Replaces up to 175W Metal Halide (MH)

30W: Replaces up to 150W Metal Halide (MH)

20W: Replaces up to 100W Metal Halide (MH)

Construction

Cold Weather Starting

The minimum starting temperature is 0°C/32°F Ambient Temperature

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Die-cast aluminum

Lens

Polycarbonate lens

Reflector

Polycarbonate

Gaskets

Silcone rubber

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

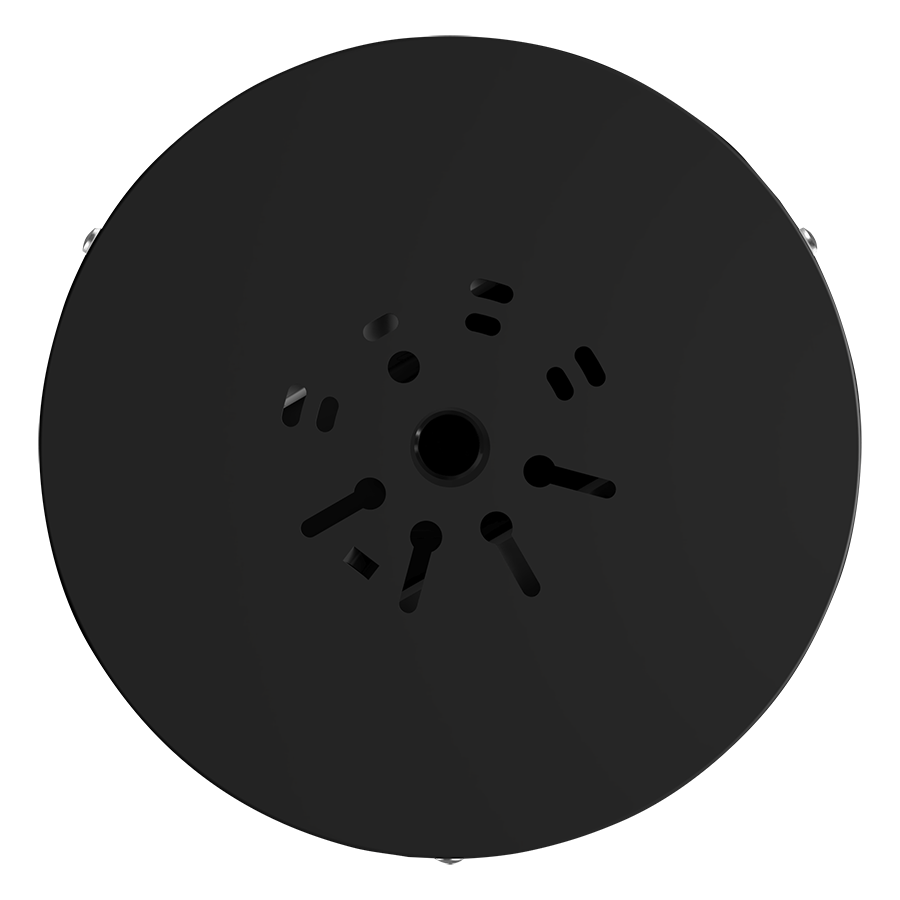

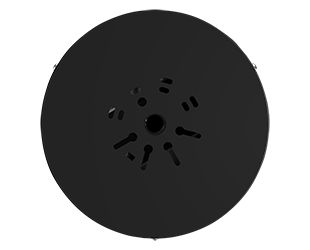

PARK34 accommodates surface mounting and its unique, removable adapter allows for both 1/2" and 3/4" NPT pendant mounting (by others).

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
