SR8/LCBS/MVS/E
SR8/LCBS/MVS/E
- 100,000-Hour LED lifespan
- 120-277V standard
- 0-10V dimming, standard
- 5-Year, limited warranty
Performance
| Watts | 28/36/44/52/60W |
| Color Temp | 3500/4000/5000/5700/6500K |
| Lumens | 4072-8988 lm |
| Efficacy | 142.4-148.4 lm/W |
| Color Accuracy | 83-87 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.23A/0.30A/0.37A/0.43A/0.52A |
| 208V | 0.13A/0.17A/0.21A/0.25A/0.28A/0.29A/0.30A |
| 240V | 0.12A/0.15A/0.18A/0.21A/0.24A/0.25A/0.26A |
| 277V | 0.12A/0.14A/0.17A/0.20A/0.22A |
| Input Watts | 27.5-61.7W |

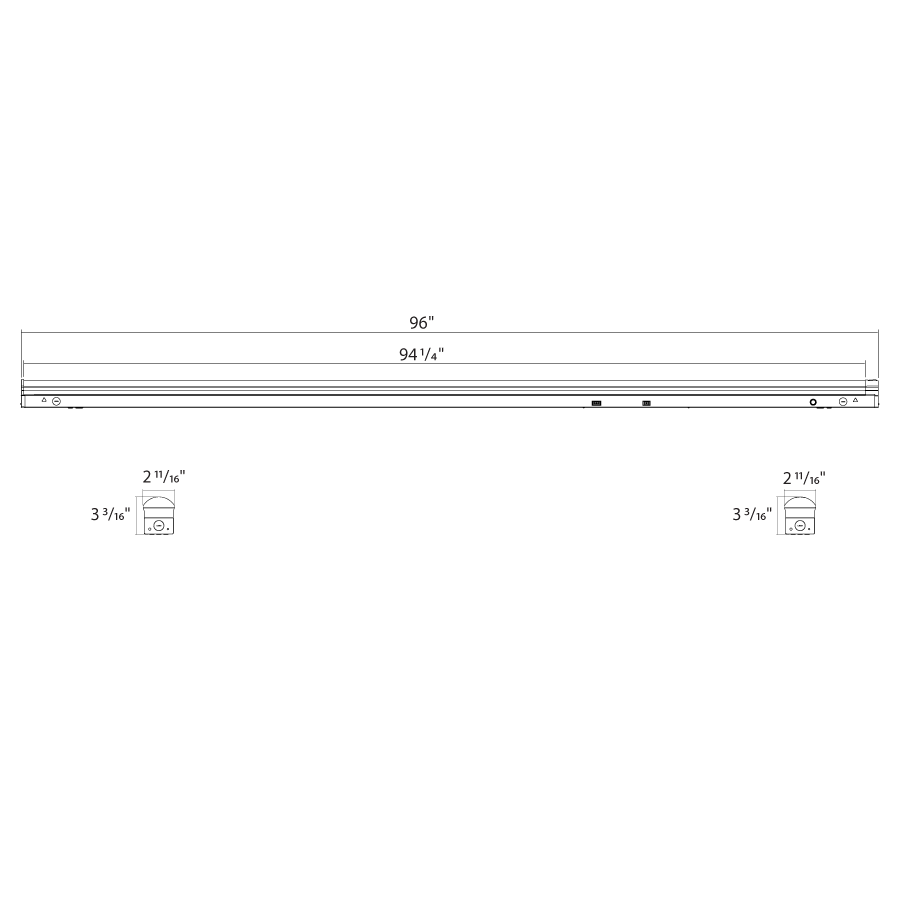

Dimensions
Weight: 5.6 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Constant Current, Class II, 120-277V, 50/60 Hz:
60W: 120V: 0.52A, 208V: 0.30A, 240V: 0.26A, 277V: 0.22A
52W: 120V: 0.43A, 208V: 0.25A, 240V: 0.22A, 277V: 0.19A
44W: 120V: 0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.16A
36W: 120V: 0.30A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
28W: 120V: 0.23A, 208V: 0.13A, 240V: 0.12A, 277V: 0.10A
60W: 120V: 0.52A, 208V: 0.30A, 240V: 0.26A, 277V: 0.22A
52W: 120V: 0.43A, 208V: 0.25A, 240V: 0.22A, 277V: 0.19A
44W: 120V: 0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.16A
36W: 120V: 0.30A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
28W: 120V: 0.23A, 208V: 0.13A, 240V: 0.12A, 277V: 0.10A
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
LED Characteristics
LEDs
Long-life, high-efficacy, discrete, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Color Consistency
4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Electrical
Driver
Constant Current, Class II, 120-277V, 50/60 Hz:
60W: 120V: 0.52A, 208V: 0.30A, 240V: 0.26A, 277V: 0.22A
52W: 120V: 0.43A, 208V: 0.25A, 240V: 0.22A, 277V: 0.19A
44W: 120V: 0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.16A
36W: 120V: 0.30A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
28W: 120V: 0.23A, 208V: 0.13A, 240V: 0.12A, 277V: 0.10A
60W: 120V: 0.52A, 208V: 0.30A, 240V: 0.26A, 277V: 0.22A
52W: 120V: 0.43A, 208V: 0.25A, 240V: 0.22A, 277V: 0.19A
44W: 120V: 0.37A, 208V: 0.21A, 240V: 0.18A, 277V: 0.16A
36W: 120V: 0.30A, 208V: 0.17A, 240V: 0.15A, 277V: 0.13A
28W: 120V: 0.23A, 208V: 0.13A, 240V: 0.12A, 277V: 0.10A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Aux Power Supply
Yes
Dim to Off
Yes
Surge Protection
L-N 1 kV, L/N-G 2 kV
Emergency Characteristics
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
60W: 16.7%
52W: 20.6%
44W: 23.6%
36W: 28.6%
28W: 36.8%
52W: 20.6%
44W: 23.6%
36W: 28.6%
28W: 36.8%
Maximum Ambient Temperature w/Battery Backup
Suitable for use in up to 122°F ( 50°C)
Construction
Cold Weather Starting
The minimum starting temperature is 32°F/0°C
Lens
Polycarbonate lens
Housing
Galvanized steel (painting)
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Surface mounting standard. V-Hooks and Chain mounting available (ordered separately, SR VHOOK KIT).
Sensor Settings
Remote Control Accessory
Adjust settings using remote control (catalog# MSR1). Only available with 0-10V dimming driver options. Remote control available here.
Sensor Sensitivity
Low/Medium/High
Occupancy Timeout
1 minute to 240 minutes
Inside Occupancy Mode
Set vacant dim level from off and any dim level
Daylight Threshold
150lux to 1500lux
Sensor Warranty
5-year sensor warranty
Mounting Height
Max 39.37 ft.(12m)
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Accessories
Suspended Mounting Kit: SR VHOOK KIT
Surface Mount Kit: SR JOIN KIT
Surface Mount Kit: SR JOIN KIT
Lightcloud
Lightcloud Blue Sensor Installed
Lightcloud Blue, RAB's wireless lighting control system, eliminates the need for a hub or controller. The app shows the fixtures nearest you first, so an area is set up in minutes, even without internet on site. Lights and schedules keep working if the Wi-Fi goes down, and a Nano adds control from anywhere.
DLC system: N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at rablighting.com/lcb.
DLC system: N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Learn more at rablighting.com/lcb.
