PIPXL100SFYW/480/D10/7PR

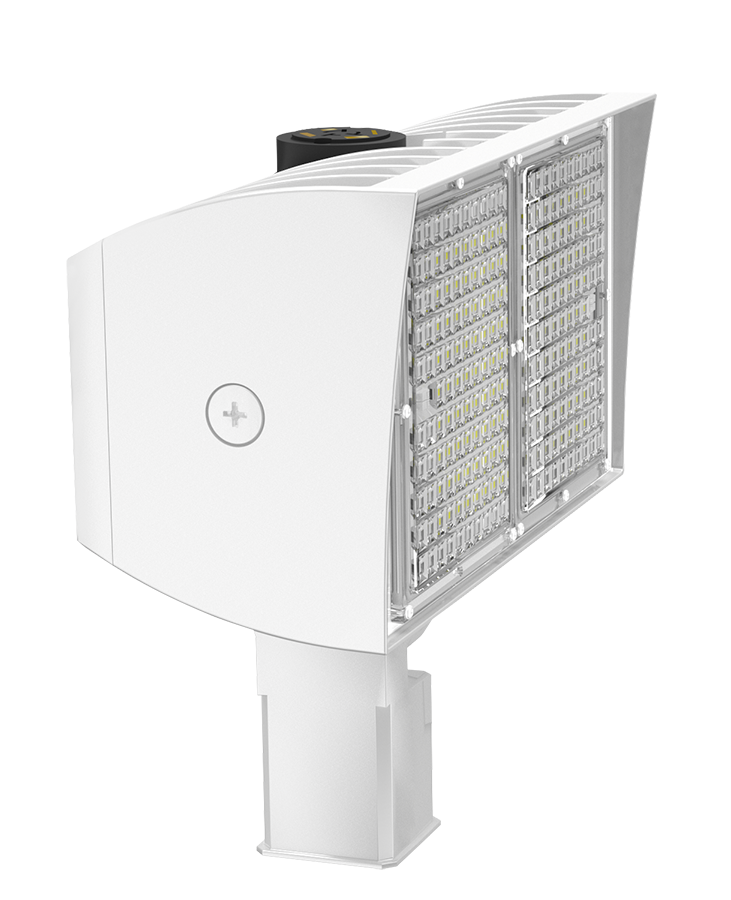

PIPXL100SFYW/480/D10/7PR large main
  • Ultra-high efficiency
  • DLC Premium
  • 0-10V Dimming, standard
  • 60,000-Hour LED lifespan
  • 5-Year, limited warranty
 View Technical Specs
View Price & Availability
Performance
Watts 100W
Color Temp 3000K (Warm)
Lumens 14,682 lm
Efficacy 151 lm/W
Color Accuracy 72 CRI
L70 Lifespan 60,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 97.2W
Dimensions
Link to Dimension Drawing

Weight: 20.6 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PYTRNPUU
Electrical
Driver
Constant Current, Class 2, 480V, 50/60Hz, 480V: 0.21A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.21% at 480V
Power Factor
99.1% at 480V
Surge Protection
4 kV
