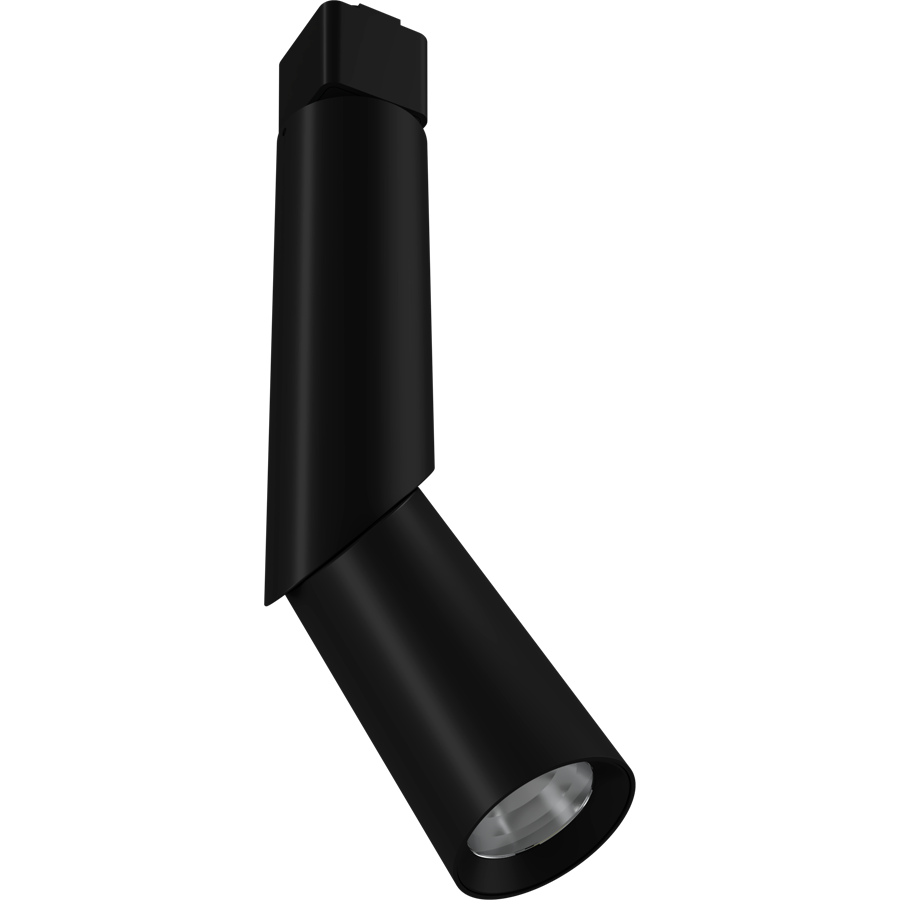

PIVOTSB
Field Adjustable Logo
PIVOTSB large main
8W 3000K/4000K/5000K



View Technical Specs
View Price & Availability
Performance
Watts 8W
Color Temp 3000K/4000K/5000K
Lumens 748-807 lm
Efficacy 90.1-102.2 lm/W
Color Accuracy 94 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.07A
208V 0.00A
240V 0.00A
277V 0.00A
Input Watts 7.9-8.3W
Dimensions
Link to Dimension Drawing

Weight: 1.0 lbs

Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for dry locations
IP Rating
IP20
LED Characteristics
LEDs
Long-life, high-efficacy, COB (Chip on Board) LEDs
Color Temperature
3000/4000/5000K CCT Adjustable
Electrical
Driver
Constant Current, Class 2, 120V, 60 Hz, 120V: 0.09A
Dimming Driver
120V TRIAC Dimmers
Aux Power Supply
No
Dim to Off
No
Surge Protection
Ring Wave L-N:1 kV, LN-PE 2 kV
Construction
Cold Weather Starting w/Battery Backup
The minimum starting temperature is -4°F (-20°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Housing
Aluminum
Reflector
Polycarbonate
Finish
Formulated for high durability and long-lasting color
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Installation
Mounting
H-Track Mount
Optical
Optics
36°
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
