PLED2X13NMS2

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

PLED2X13NMS2

Reduce energy usage with motion sensor technology you can rely on

LED combined with mini sensor for an all-in-one lighting solution

Great for small spaces like utility closets and storage rooms

5-Year, No-Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	26W
Color Temp	4000K (Neutral)
Lumens	1,340 lm
Efficacy	44.4 lm/W
Color Accuracy	86 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.26A
208V
240V
277V
Input Watts	30.2W

EZ-Layout

Create Custom Lighting Layout

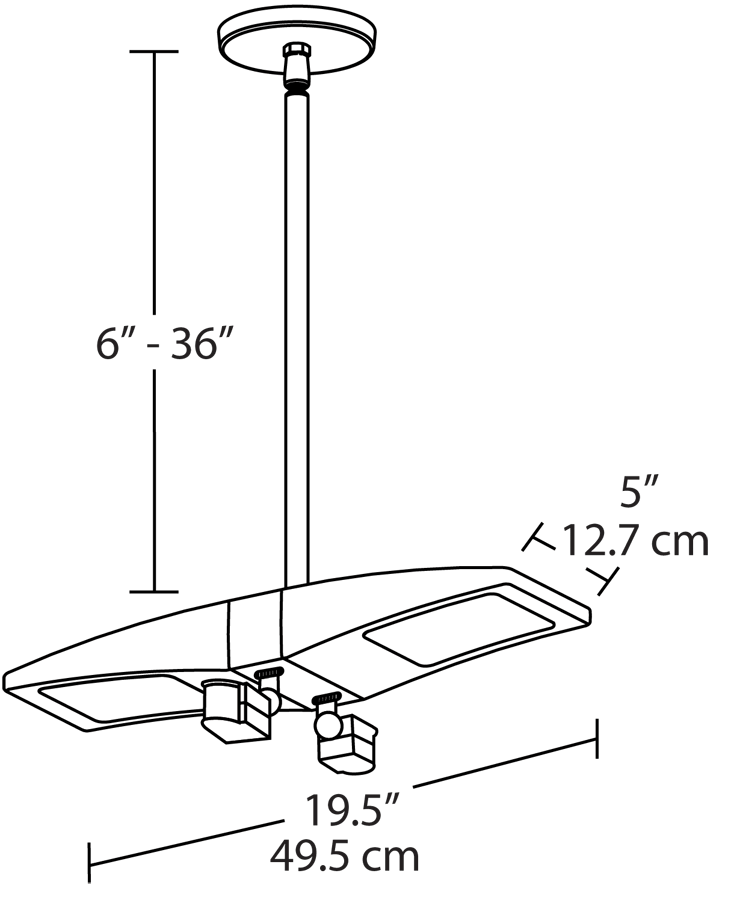

Dimensions

Weight: 7.1 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Installation

Recommended Mounting Height

8-10'

Mounting

3 mounting stems included. 6", 12" and 18" can be combined to achieve a maximum length of 36". 42" of wire supplied. The pendants thread into a hang-straight, leveling the fixture. Pendant outside diameter is 3/4". Threads are 1/4". Circular canopy included.

LED Characteristics

LEDs

(2) 13W Multi-chip high-output, long-life LED

Construction

Housing

Precision die-cast aluminum housing and lens framing

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Electrical

Drivers (2)

Constant Current, Class 2, 100V-277V, 50/60 Hz, 4kv Surge Protection, 720mA, 100-240VAC 0.3-0.15 Amps, 277VAC 0.3 Amps, THD less than equal to 20%, Power Factor 97.5%.
