• Reduce energy usage with motion sensor technology you can rely on
  • LED combined with mini sensor for an all-in-one lighting solution
  • Great for small spaces like utility closets and storage rooms
  • 5-Year, No-Compromise Warranty
View Technical Specs
Performance
Watts 52W
Color Temp 3000K (Warm)
Lumens 4,285 lm
Efficacy 72.6 lm/W
Color Accuracy 82 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.48A
208V
240V
277V
Input Watts 59W
Dimensions
Link to Dimension Drawing

Weight: 10.1 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Installation
Recommended Mounting Height
8-10'
Mounting

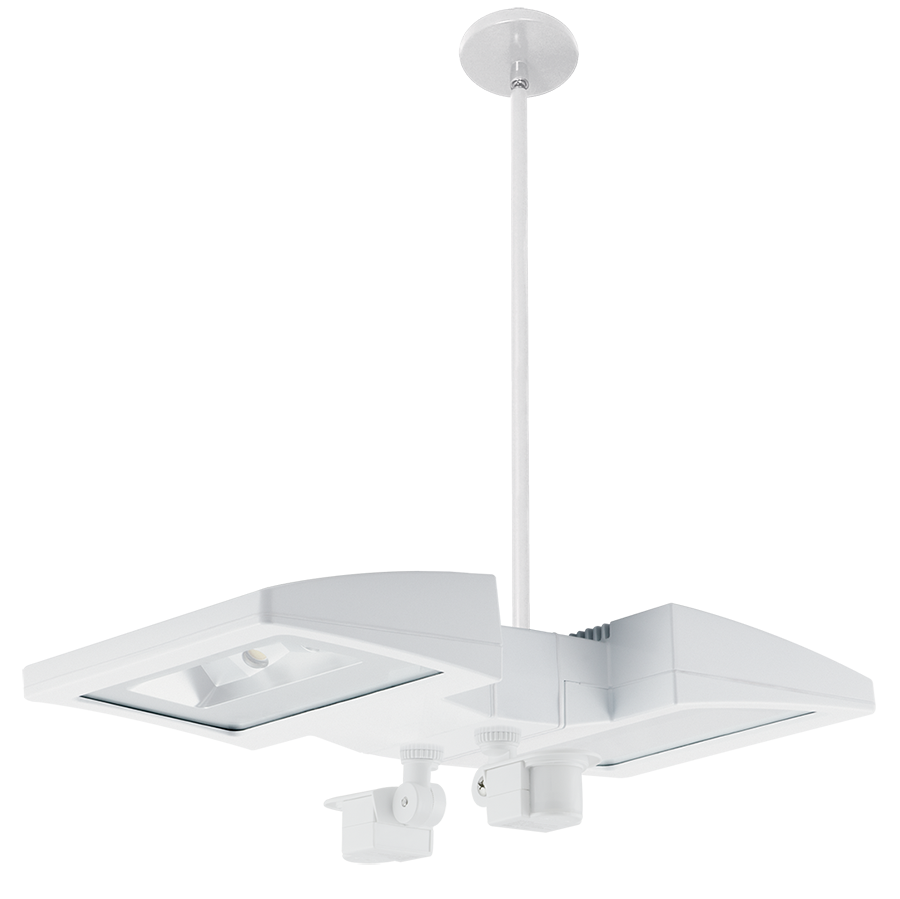

3 mounting stems included. 6", 12" and 18" can be combined to achieve a maximum length of 36". 42" of wire supplied. The pendants thread into a hang-straight, leveling the fixture. Pendant outside diameter is 3/4". Threads are 1/4". Circular canopy included.
LED Characteristics
LEDs
(4) 13W Multi-chip high output, long-life LED
Construction
Housing
Precision die-cast aluminum housing and lens framing
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Electrical
Drivers (2)
Constant Current, Class 2, 100V-277V, 50/60 Hz, 6kv Surge Protection, 720mA, 100-277VAC 0.8 Amps, THD less than equal to 20%, Power Factor 99.2%.
