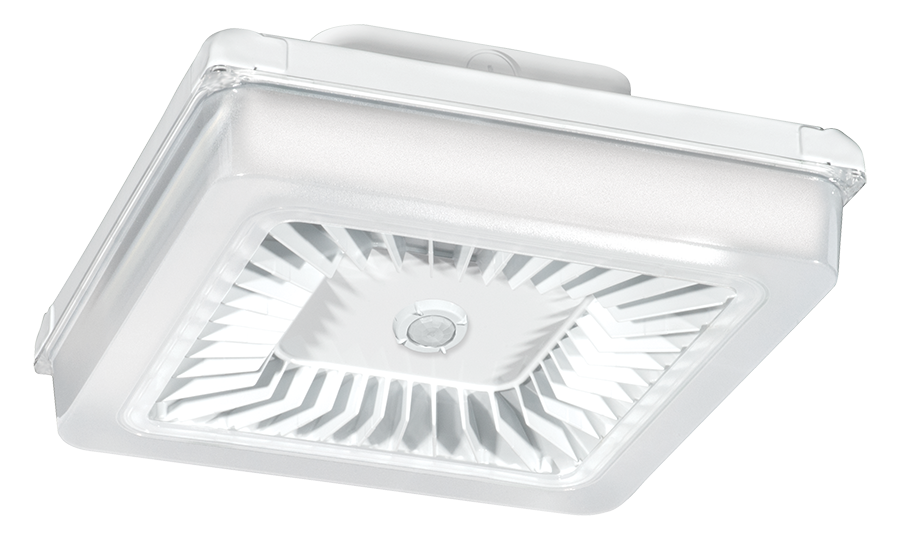

PRT105NW/WS2
PRT105NW/WS2
- Ultra-high efficiency
- Pendant or surface mount
- Low glare, vandal-resistant polycarbonate lens
- 20% uplight eliminates "cave effect"
- 100,000-Hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 105W |
| Color Temp | 4000K (Neutral) |
| Lumens | 12,076 lm |
| Efficacy | 115.2 lm/W |
| Color Accuracy | 77 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.87A |
| 208V | 0.52A |
| 240V | 0.45A |
| 277V | 0.39A |
| Input Watts | 104.8W |
Dimensions
Weight: 19.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PK2JZDNV
DLC Product Code: PK2JZDNV
Electrical
Driver
Constant current, Class 2, 100 - 277V and 480V, 50/60 Hz, 120V: 0.87A, 208V: 0.52A,
240V: 0.45A, 277V: 0.38A, 480V: 0.23A, surge protection 4kV, THD ≤ 20%, pF 90%
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
2.4% at 120V, 6% at 277V
Power Factor
99.9% at 120V, 95.8% at 277V
Construction
Lens
Frosted polycarbonate
Gaskets
High-temperature silicone
Ambient Temperature
Suitable for use in up to 40°C (104°F)
Finish
Formulated for high durability and long-lasting color
Cold Weather Starting
The minimum starting temperature is -40°C (-40°F)
Thermal Management
Superior thermal management with external "Air-Flow" fins
Housing
Die-cast aluminum and sheetmetal housing. Polycarbonate is affected by cleaning agents or other liquids containing partial solvents such as low molecular weight aldehydes and ethers, ketones, esters, aromatic hydrocarbons and perchlorinated hydrocarbons. Click here for a detailed list of damaging chemicals.
Mounting
Die-cast aluminum backbox with (4) 1/2" conduit openings with plugs. Hinged tether for easy installation and wiring. Also accomodates 1/2" or 3/4" NPS pendants (provided by others).
Reflector
Specular polycarbonate
Green Technology
Mercury and UV free. RoHS-compliant components.
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Sensor Specifications
Operating Voltage
120-277V
Power Consumption
1W
0-10V Sinking Current
50mA
Adjustable High and Low Modes
High: 0-10V; Low: off, 0-9.8V
Adjustable Time Delay
Amount of time in high mode with no motion before switching to low mode: 5 min., 1 -30 min.
Adjustable Cut Off Delay
Time in which the fixture will remain on low mode with no motion before turning off and waiting for new motion to turn on: None, 1 -60 min., 1 -5 hrs.
Adjustable Sensitivy
None, low, medium, maximum
Adjustable Setpoint
None, 1 to 250 fc, auto
Operating Temperature
-40°F to 167°F (-40°C to +75°C)
Operating Humidity
20% to 90% noncondensing
Relay Life Rating
200,000 cycles (120/277VAC), 50,000 cycles (230VAC)
IP Rating
Ingress protection rating of IP66 for dust and water
UL Listed
Suitable for Wet Locations as factory installed
Handheld Wireless Configuration Tool
Adjust settings using handheld wireless configuration tool (catalog# WSREM). Only available with 0-10V dimming driver options. Handheld wireless configuration tool available here.
