• Designed for ground mounting
  • Heavy duty TGIC polyester coating
  • Reinforced hand holes with grounding lug and removable cover for easy wiring access
  • Pole caps, base covers & bolts are sold separately
  • Custom manufactured for each application
View Technical Specs

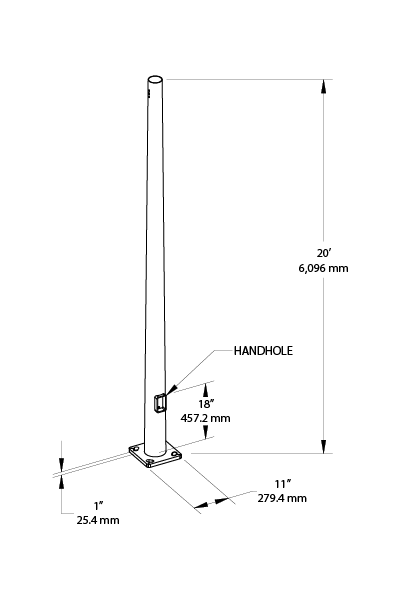

Dimensions
Link to Dimension Drawing

Weight: 216.9 lbs

Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Performance
Description
Steel pole 6" taper 7 gauge 20 foot drilled two sides square base
Construction
Base Shaft Diameter
6"
Top Diameter
3.20"
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
36,000 p.s.i. minimum yield.
Color
Bronze powder coating
Height
20 ft
Gauge
7
Wall Thickness
3/16"
Anchor Bolt Templates
WARNING Template must be printed on 12" x 18" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 28.1 ft/700 lb.
80MPH 20.3 ft/700lb.
90MPH 15.1 ft/690 lb.
100MPH 11.4 ft/670 lb.
110MPH 8.6 ft/680 lb.
120MPH 6.3 ft/670lb.
130MPH 4.8 ft/670 lb.
140MPH 3.3 ft/650 lb.
150MPH 2.5 ft/640 lb
Accessories
Base/Cap: BCK-RT6/20
Anchor Bolts: BOLT5-8
Other
Terms of Sale
Pole Terms of Sale is available online.

Recently Viewed Products

 This is a link to the product PTR6-07-20D2 PTR6-07-20D2
Pole 6" Taper 7 Gauge 20Ft Drilled Two Sides Square Base
 This is a link to the product HALV10L930-FG1-S/BL/E2 HALV10L930-FG1-S/BL/E2
Architectural 748 Lumens Halv Forward Light 14W 90Cri 3000K Frosted Lens With Grill Style 1 Silver Finish Bi-Level Control Battery Backup
 This is a link to the product HALVS10L940-MA-S/LC HALVS10L940-MA-S/LC
Architectural 175 Lumens Halvs Forward & Up/Down Light 14W 90Cri 4000K Mirage Bronze Lens Silver Finish Lightcloud Controller
 This is a link to the product WFR4B/RGB WFR4B/RGB
Lc Blue 4" Wafer 8W 550Lm 90Cri 2200-6500K Rgb 120V Smartshift Baffle White
 This is a link to the product IVAT2-45LWM730WU/WSLC IVAT2-45LWM730WU/WSLC
Ivelot T2 40W 4500L Wall 3000K 70 Cri White 120-277V Dim Ws Lc

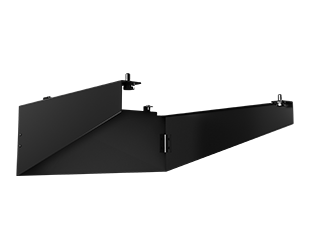

 This is a link to the product A22-320HSB A22-320HSB
