WFRX-6RB/NL

Spec Sheet Spec Sheet

WFRX-6RB/NL

View Technical Specs

Performance

Watts	13/11/9W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1,200/1,000/850 lm
Efficacy	92
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.10A
208V
240V
277V
Input Watts	13/11/9W

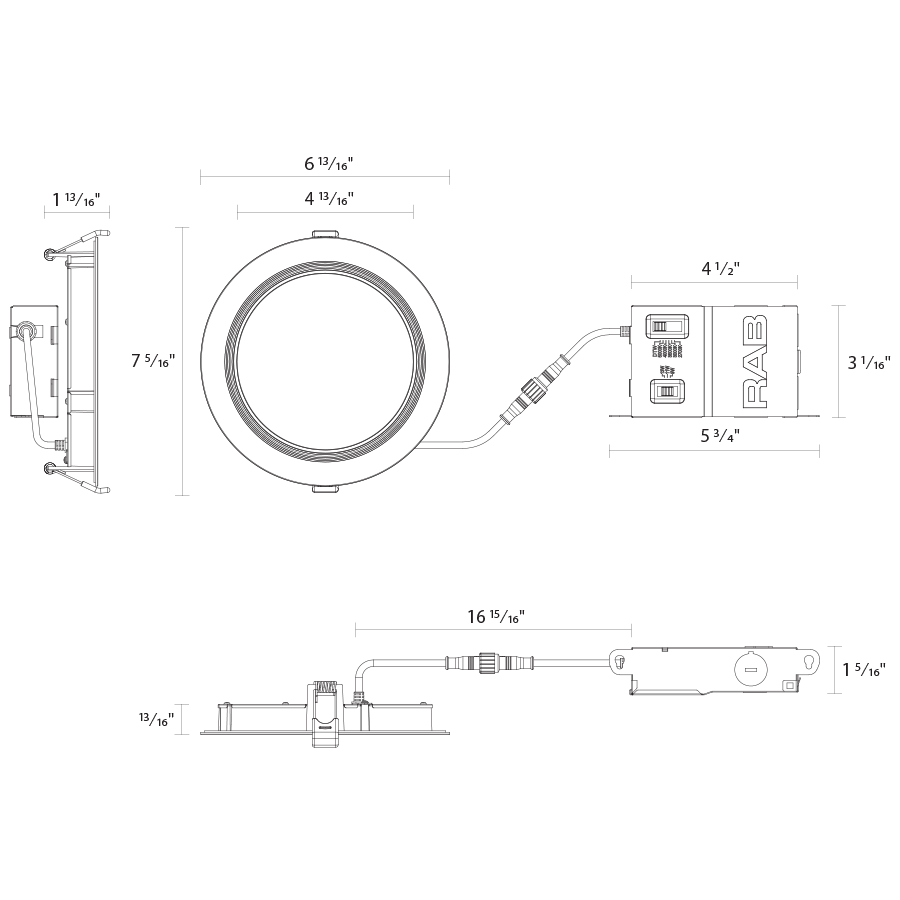

Dimensions

Weight: 1.1 lbs

Technical Specifications

Performance

Product Type

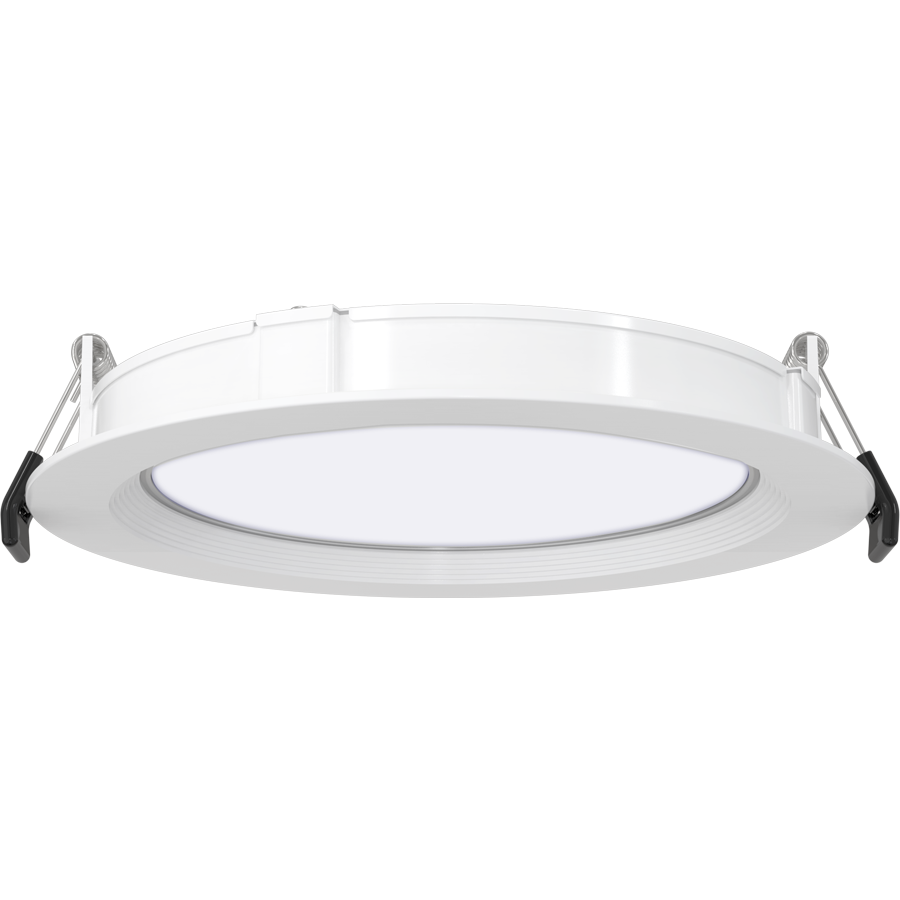

Wafer Nightlight - Dim-to-Warm

Description

Slim panel wafers with selectable wattage and CCT that boast 90 CRI. Available with nightlight mode to provide 2000K amber color temperature alone. Creates comfort, warmth, soft lighting, and extra ambiance.

Wattage Equivalency

75W Incandescent

Input Wattage

Main light: 13/11/9W
Nightlight: 5.5W

Lumens (Nominal)

Mainlight: 850/1000/1200lm
Nightlight:20lm

Efficacy

92lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, Class 2 120V 60 Hz; 120V: 103mA

THD

≤20%

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Operating Temperature

-4°F to 104°F (-20 to 40°C)

Flicker

≤5%

LED Characteristics

Beam Angle

110°±10°

Color Temperature

Default: 3000K
Field adjustable via dip switch D2W/2700/3000/3500/4000/5000K
Dim-to-Warm (D2W): 3000K-1800K
Nightlight: 2000K

Color Accuracy (CRI)

90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Remote Driver/Junction Box

Die formed metal driver / junction box with captive hinged junction box cover. Listed for Maximum of (4) 12AWG through branch circuit conductor suitable for 90° C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) quick snap-in connectors for quick and reliable line voltage connections. Integral mounting facilitates direct mounting to building structure or mounting frame.

Mounting

Recessed, no housing required

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Metal

Trim Style

Baffle

Lens Finish

Frosted

Lens

Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications

Air Tight

Housing certified Air Tight as per ASTM-E283

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.

Energy Star Approved

This product is ENERGY STAR® Certified.

Certification Model Number

DLW0155(WFRX-6RB/NL)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6

California Energy Commission (CEC) Status

Lawful for Sales in California

NEC Compliant

Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNAlm-79 andlm-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
