PTR6-11B-20D2
PTR6-11B-20D2
- Designed for ground mounting
- Heavy duty TGIC polyester coating
- Reinforced hand holes with grounding lug and removable cover for easy wiring access
- Pole caps, base covers & bolts are sold separately
- Custom manufactured for each application

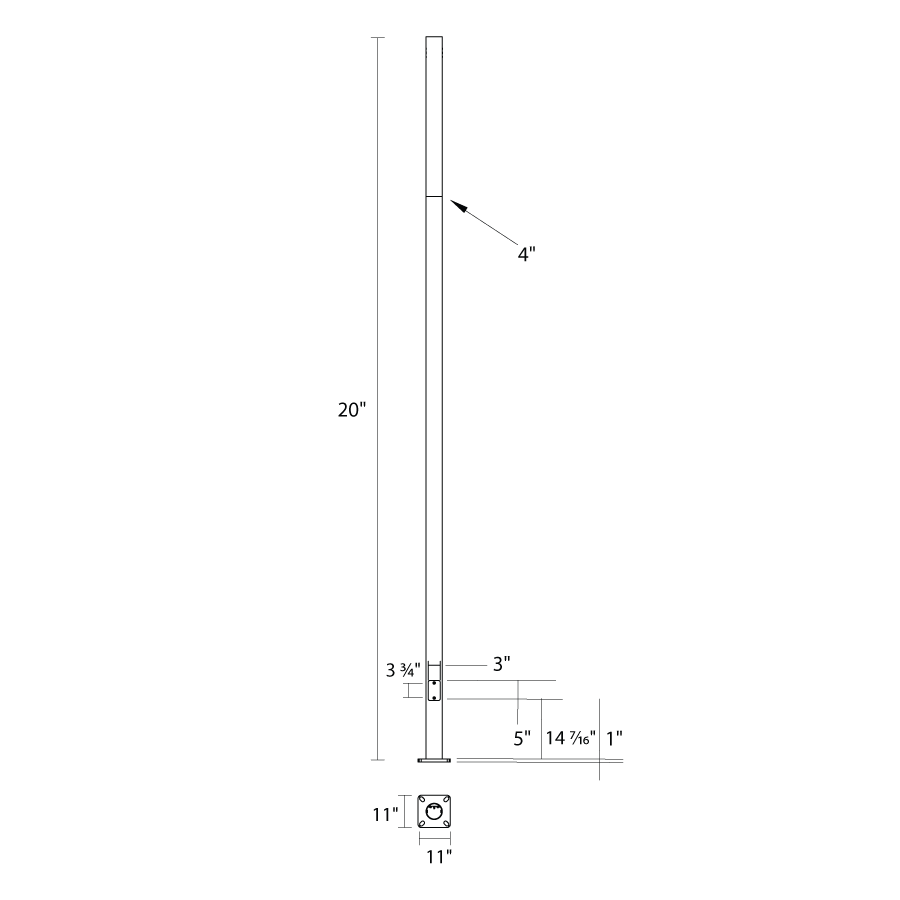

Dimensions
Weight: 176.4 lbs
Technical Specifications
Compliance
CSA Listed
Suitable for wet locations
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Performance
Description

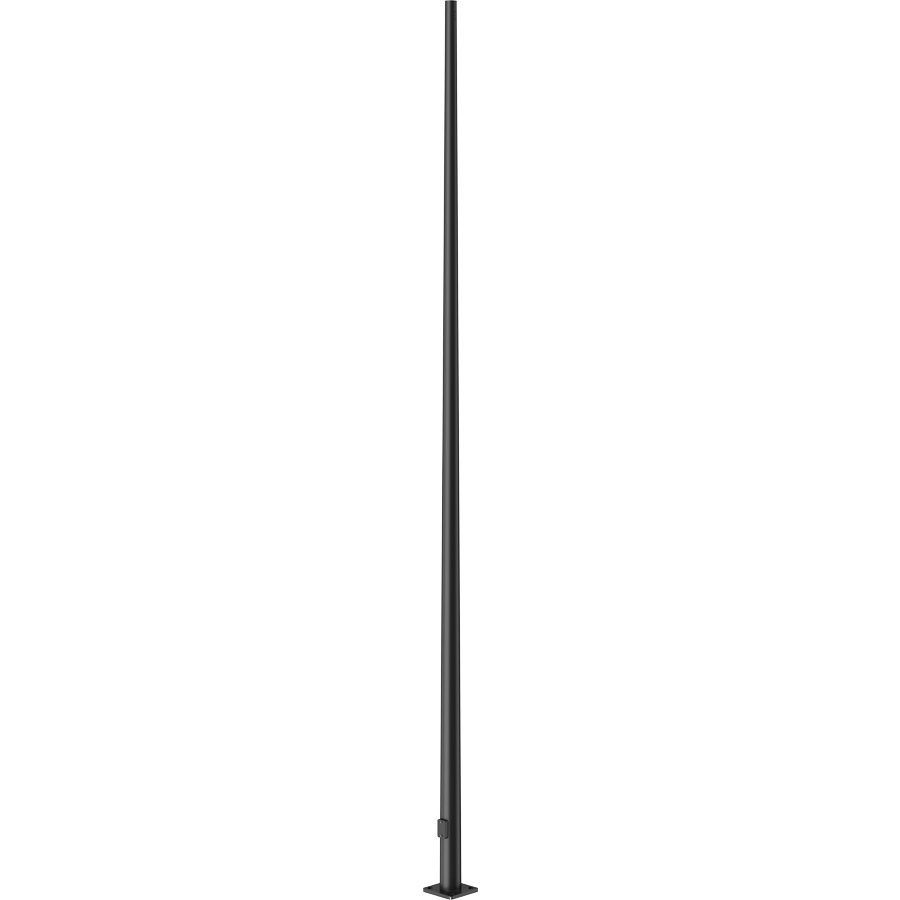

Steel pole 6" taper 11 gauge 20 foot drilled two sides square base
Construction
Base Shaft Diameter
6"
Top Diameter
3.25"
Hand Holes
Reinforced with grounding lug and removable cover
Base Plates
Slotted base plates 36,000 p.s.i.
Color
Bronze powder coating
Height
20 ft
Gauge
11
Wall Thickness
1/8"
Anchor Bolt Templates
WARNING Template must be printed on 12" x 18" sheet for actual size. CHECK SCALE BEFORE USING. Templates shipped with anchor bolts and available online.
Max EPA's/Max Weights
70MPH 17.5 ft/550 lb.
80MPH 12.6 ft/525 lb.
90MPH 8.7 ft/500 lb.
100MPH 6.2 ft/500 lb.
110MPH 4.4 ft/500 lb.
120MPH 3.0 ft/500lb.
130MPH 1.8 ft/220 lb.
140MPH 1.0 ft/400 lb.
150MPH 0.9 ft/390 lb
80MPH 12.6 ft/525 lb.
90MPH 8.7 ft/500 lb.
100MPH 6.2 ft/500 lb.
110MPH 4.4 ft/500 lb.
120MPH 3.0 ft/500lb.
130MPH 1.8 ft/220 lb.
140MPH 1.0 ft/400 lb.
150MPH 0.9 ft/390 lb
Accessories
Other
Terms of Sale
Pole Terms of Sale is available online.
