R20-7-830-DIM

Spec Sheet Compatibility List Photometrics Report Energy Star FCC Caution Spec Sheet

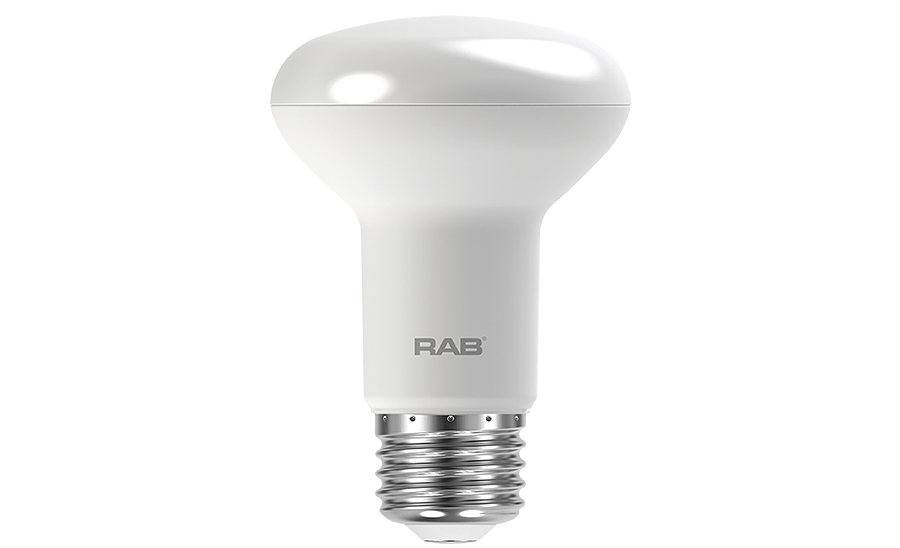

R20-7-830-DIM

Energy efficient replacement for incandescent and halogen reflector lamps

Constructed from durable plastic which lowers risk of breakage

Rated for use in enclosed and open fixtures in dry or damp locations

Frosted lens produces smooth diffuse light

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

ENERGY STAR Compliant

Dimmable with common dimmer types (see Dimmer Compatibility List)

View Technical Specs

View Price & Availability

Performance

Watts	7W
Color Temp	3000K (Warm White)
Lumens	525 lm
Efficacy	75 lm/W
Color Accuracy	80 CRI
L70 Lifespan	25,000 Hours

Input Voltage	120V
Power Factor	0.9
Flicker	<30%
THDi	N/A

Dimensions

Weight: 0.2 lbs

Technical Specifications

Performance

Product Type

Reflector

Input Wattage

Lumens

525lm

Efficacy

75lm/W

L70 Lifespan

25,000-Hour LED lifespan based on IES LM-70 results

Wattage Equivalency

50W

LED Characteristics

Color Accuracy (CRI)

Color Temperature

3000K

Electrical

Power Factor

>0.9

Dimmable

Yes, down to 10%

Input Voltage

120V

Operating Temperature

-20°C to 40°C

Construction

Bulb Shape

R20

Enclosure Material

Plastic

Housing Finish

White

Lens Finish

Frosted

Base Type

E26 Edison

Optical

Beam Angle

110°

Other

Technology EQ

Incandescent

Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

UL Listed

Yes

Environment

Damp / Enclosed

Energy Star ID

2329464

Rohs

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15B of the FCC Rules

Certification Model Number
