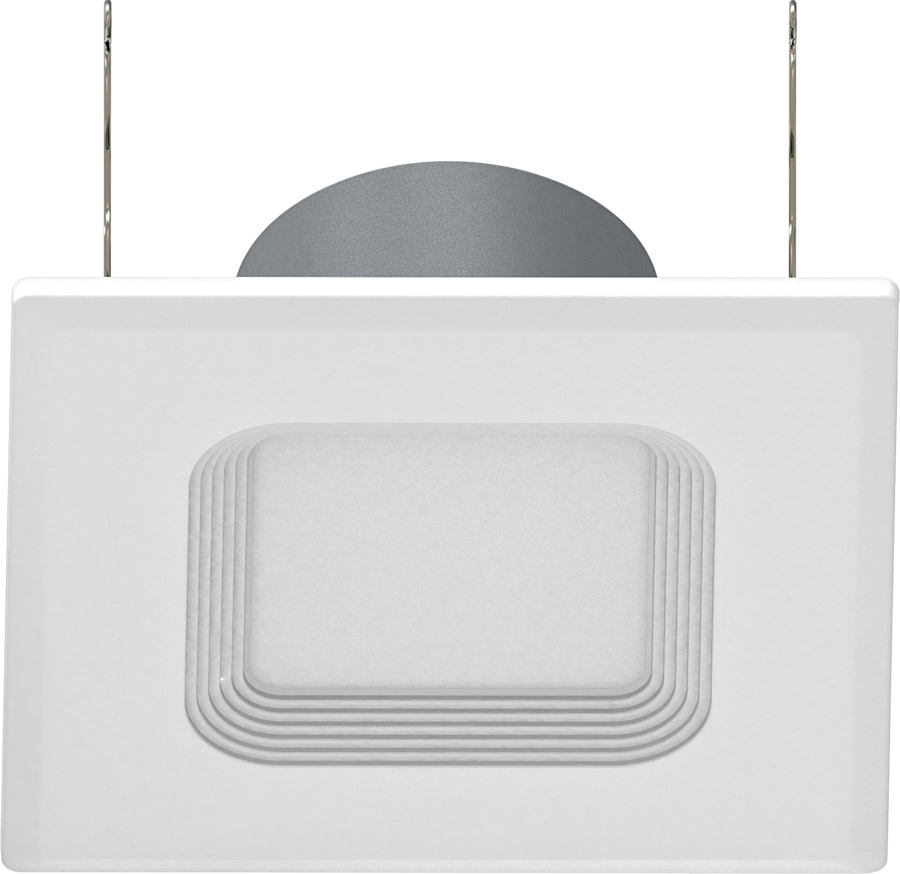

R6S10950120WB
R6S10950120WB
- High Performance LEDS up to 90 lm/w
- Use to replace up to 85W traditional light sources
- Robust plastic construction
- UL wet location rated
- Compatible with most standard recessed housings
- Dimmable down to 5% on compatible dimmers
- Available in Square 4" 650lm and 6" 950lm
- Available in 4 color temperatures: 2700K, 3000K, 3500K, 4000K & 5000K
- Available in a baffle trim option
- Color designer trims as optional accessories available
- 5-Year, No-Compromise Warranty
Performance
| Watts | 10W |
| Color Temp | 5000K |
| Lumens | 924 lm |
| Efficacy | 90 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 90 |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 10W |
Dimensions
Weight: 0.8 lbs
Technical Specifications
Performance
Product Type
Retrofit
Lumens
900lm
Efficacy
90lm/W
Lifespan
50,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 75W Incandescent
LED Characteristics
LEDs
LED array provides a uniform source with high efficiency and no pixilation
Color Accuracy (CRI)
90 CRI
Color Temperature
5000K
Electrical
THD
≤20%
Power Factor
≥0.9
Dimmable
TRIAC and ELV (at 120V only).
Input Voltage
120V
Operating Frequency
60Hz
Operating Temperature
-30°C - 40°C
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Buy American Act Compliance
RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.
Construction
Size
6"
Shape
Square
Housing Material
Plastic
Finish
White
Trim Style
Baffle
Gaskets
Achieve restrictive airflow requirements without additional caulking
Base Type
E26 Edison
Mounting
Torsion springs are pre-installed and adjust to fit 5" or 6" compatible housing
Compliance
Listings
UL Classified
Environment
Wet
Fixture Rating
Enclosed
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Energy Star ID
2366469
T20 Compliant
Yes
Lawful for Sale in California
Yes
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15B of the FCC Rules
Certification Model Number
DLR0113(R6S10950120WB)
