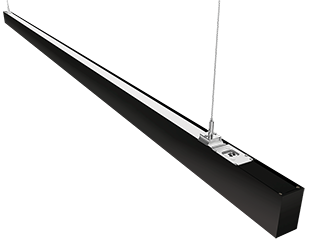

RAIL175/PIR/E
RAIL175/PIR/E
- 100,000-Hour LED lifespan
- DLC Premium Listed
- 0-10V dimming, standard
- 5-Year, No-Compromise Warranty
Performance
| Watts | 175W |
| Color Temp | 5000K (Cool) |
| Lumens | 25,527 lm |
| Efficacy | 142.7 |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.45A |
| 208V | 0.84A |
| 240V | 0.72A |
| 277V | 0.63A |
| Input Watts | 178.9W |
Dimensions
Weight: 11.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: S-H56WFO
DLC Product Code: S-H56WFO
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 400W Metal Halide
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED Color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 1.45A, 208V: 0.84A, 240V: 0.72A, 277V 0.63A
THD
2.05% at 120V, 8.21% at 277V
Power Factor
99.8% at 120V, 95.9% at 277V
Surge Protection
6kV
Battery Backup
Battery backup will operate the fixture for 90 minutes if power fails. Wired for 120-277V.
Battery Backup Light Loss Factor
0.144
Construction
Cold Weather Starting
The minimum starting temperature is -20°C (-4°F)
Maximum Ambient Temperature
Suitable for use in up to 45°C (113°F)
Housing
Extruded aluminum
Lens
Polycarbonate lens
Reflector
Polyethylene Terephthalate (PET)
Installation
Mounting
V hooks (chain by others)
Sensor Settings
Maximum Mounting Height
40 ft
Voltage
12V DC (+3V-0V)
Dimming
0-10V dimming ouput, max 20mA sinking current
Operating Temperature
-20°C to 50°C (-4°F to 122°F)
Storage Temperature
-25°C - 70°C (-13°F - 158°F)
Operating Humidity
5% - 93% without condensation
IP Rating
IP20
Warm Up Time
45s +/-5s
Standby (w)
<0.3W
Module Interaction
Wire AWG 22 (Grey Dim -, Purple Dim +, Yellow 12V DC)
On-Time Adjustment
10s, 5min, 10min, 30min with +/-5% tolerance
(Factory Setting: 30min +/-5%)
(Factory Setting: 30min +/-5%)
Bi-Level
0, 10%, 30%, 50% with +/-5% tolerance
(Factory Setting: 10%)
(Factory Setting: 10%)
Debounce Time
Day to Night: 5s
Night to Day: 30s
Night to Day: 30s
Open Circuit Protection
No
Short Circuit Protection
Yes
Remote Control Accessory
Adjust settings using remote control (catalog# WSREM). Only available with 0-10V dimming driver options. Remote control available here.
Other
Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
