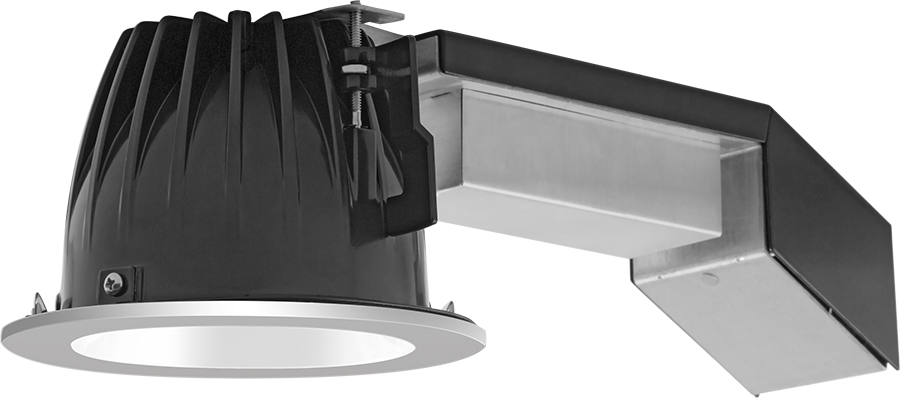

RDLED4R12D-WY-W-S
RDLED4R12D-WY-W-S
- High performance, high efficiency alternative to incandescent lighting
- Integrated ceiling clamps make installation fast and secure for ceiling up to 1 1/4" thick
- Nanostructure lens eliminates "hot spots" providing smooth and efficient light
- Low-profile design allows for installation in ceilings with limited space
- Absolute White™ natural light output
Performance
| Watts | 12W |
| Color Temp | 3000K (Warm) |
| Lumens | 1,162 lm |
| Efficacy | 81.8 lm/W |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.12A |
| 208V | 0.08A |
| 240V | 0.07A |
| 277V | 0.06A |
| Input Watts | 14.2W |

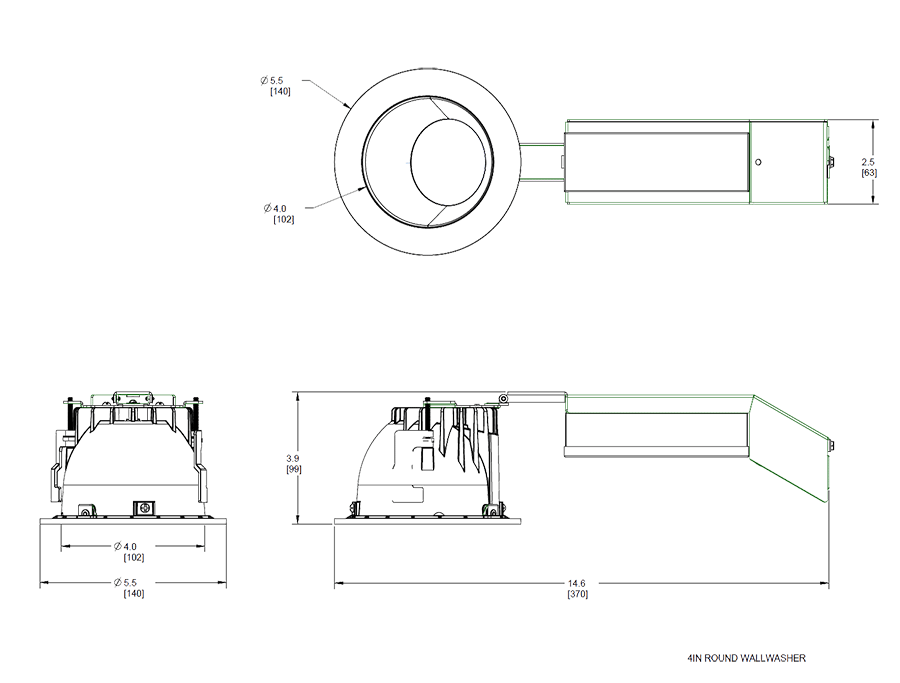

Dimensions
Weight: 2.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations covered ceiling
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
LED Characteristics
LED
Long-life, high-output LED module. Binned for natural white light to match incandescent and 3-step MacAdam Ellipse consistency.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Driver
ELV, 0-10V and TRIAC Dimming, Constant Current, Class 2, 120V-277V, 50/60Hz, Power Factor 98%, THD ≤ 20%
