RDLED4R20D-50YYHC-M-B

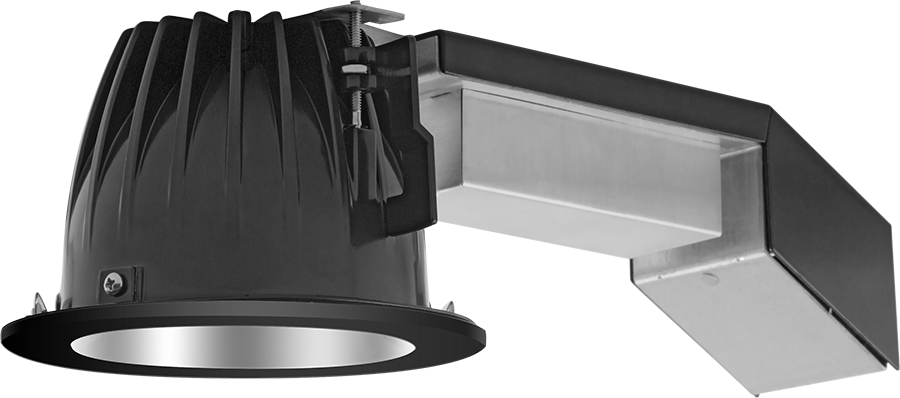

RDLED4R20D-50YYHC-M-B large main
  • High performance, high efficiency alternative to incandescent lighting
  • Integrated ceiling clamps make installation fast and secure for ceiling up to 1 1/4" thick
  • Nanostructure lens eliminates "hot spots" providing smooth and efficient light
  • Low-profile design allows for installation in ceilings with limited space
  • Absolute White™ natural light output
 View Technical Specs
View Price & Availability
Performance
Watts 20W
Color Temp 2700K (Residential Warm)
Lumens 1,228 lm
Efficacy 60.8 lm/W
Color Accuracy 90 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.17A
208V 0.11A
240V 0.10A
277V 0.09A
Input Watts 20.2W
Dimensions
Link to Dimension Drawing

Weight: 2.5 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations covered ceiling
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
LED Characteristics
LED
Long-life, high-output LED module. Binned for natural white light to match incandescent and 3-step MacAdam Ellipse consistency.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Electrical
Driver
ELV, 0-10V and TRIAC Dimming, Constant Current, Class 2, 120V-277V, 50/60Hz, Power Factor 98%, THD ≤ 20%
