RDLED6R20D-50YYHC-W-S
RDLED6R20D-50YYHC-W-S large main
  • High performance, high efficiency alternative to incandescent lighting
  • Integrated ceiling clamps make installation fast and secure for ceiling up to 1 1/4" thick
  • Nanostructure lens eliminates "hot spots" providing smooth and efficient light
  • Low-profile design allows for installation in ceilings with limited space
  • Absolute White™ natural light output
 View Technical Specs
View Price & Availability
Performance
Watts 20W
Color Temp 2700K (Residential Warm)
Lumens 1,307 lm
Efficacy 64.4 lm/W
Color Accuracy 90 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.17A
208V 0.11A
240V 0.10A
277V 0.09A
Input Watts 20.3W
Dimensions
Link to Dimension Drawing

Weight: 2.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations covered ceiling
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
LED Characteristics
LED
Long-life, high-output LED module. Binned for natural white light to match incandescent and 3-step MacAdam Ellipse consistency.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Electrical
Driver
ELV, 0-10V and TRIAC Dimming, Constant Current, Class 2, 120V-277V, 50/60Hz, Power Factor 98%, THD ≤ 20%

Recently Viewed Products

This is a link to the product RDLED6R20D-50YYHC-W-S RDLED6R20D-50YYHC-W-S
Remodeler 6" Round 20W Dim 50 Degrees 2700K 90 Cri White Cone Sil Ring
This is a link to the product STL12LV STL12LV
Outdoor Sensors Stealth Low Voltage Sensor 96W 12V Bronze
This is a link to the product RDDLED2R-10D-30NHC-B-ST RDDLED2R-10D-30NHC-B-ST
Recessed Downlights 752 Lumens Rddled 2 Inches Round 10W Dimmable 30 Degree 4000K 90Cri Black Trim Cone Silver Trim Ring 1/2 Inch Trim
This is a link to the product T8-17.5-42P2S-865-DE-BYP T8-17.5-42P2S-865-DE-BYP
Linear Tubes 2300 Lumens T8 17.5W 42 Inches Plastic 2 Sided 80Cri 6500K Double Ended Wiring Method Ballast Bypass
This is a link to the product NDLED6SD-80YHC-M-B NDLED6SD-80YHC-M-B
Recessed Downlights 20 Lumens Ndled6Sd 6 Inch Square Universal Dimming 80 Degree Beam Spread 3000K 90Cri Matte Silver Cone Black Trim

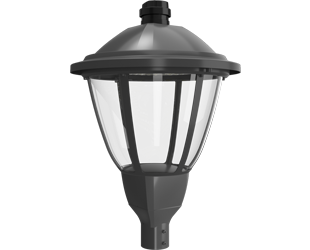

This is a link to the product HTG-R/480/7PRS HTG-R/480/7PRS
