RDLED6R20D-80YY-B-B
RDLED6R20D-80YY-B-B large main
  • High performance, high efficiency alternative to incandescent lighting
  • Integrated ceiling clamps make installation fast and secure for ceiling up to 1 1/4" thick
  • Nanostructure lens eliminates "hot spots" providing smooth and efficient light
  • Low-profile design allows for installation in ceilings with limited space
  • Absolute White™ natural light output
 View Technical Specs
View Price & Availability
Performance
Watts 20W
Color Temp 2700K (Residential Warm)
Lumens 1,127 lm
Efficacy 54.7 lm/W
Color Accuracy 80 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.17A
208V 0.11A
240V 0.10A
277V 0.09A
Input Watts 20.6W
Dimensions
Link to Dimension Drawing

Weight: 2.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations covered ceiling
LED Characteristics
LED
Long-life, high-output LED module. Binned for natural white light to match incandescent and 3-step MacAdam Ellipse consistency.
Performance
Lifespan
100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations
Construction
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Driver
ELV, 0-10V and TRIAC Dimming, Constant Current, Class 2, 120V-277V, 50/60Hz, Power Factor 98%, THD ≤ 20%
Dimming Driver
0 - 10V (at 120-277V), TRIAC and ELV (at 120V only). See dimmer compatibility guide here.

Recently Viewed Products

This is a link to the product RDLED6R20D-80YY-B-B RDLED6R20D-80YY-B-B
Remodeler 6" Round 20W Dim 80 Degrees 2700K 80 Cri Black Cone Black Ring
This is a link to the product BOA8S-40D10-40Y-W/LC BOA8S-40D10-40Y-W/LC
Architectural 2998 Lumens Boa 8 Ft 40W Surface Mount 3000K 0-10V Dimming Lightcloud Controller White
This is a link to the product RDLED6S26D-50YN-S-W RDLED6S26D-50YN-S-W
Remodeler 6" Square 26W Dim 50 Degrees 3500K 80 Cri Specular Cone White Ring
This is a link to the product ALED4T50SFYW/WS2 ALED4T50SFYW/WS2
Arealights 7127 Lumens Aled Type Iv Slipfitter 3K 50W 120V-277V Multi-Level Sensor With 20 Feet Lens White

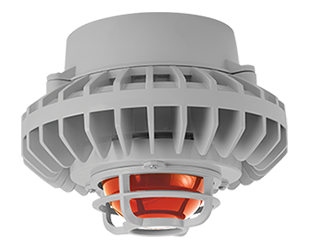

This is a link to the product HAZPLED80FA-DG HAZPLED80FA-DG
