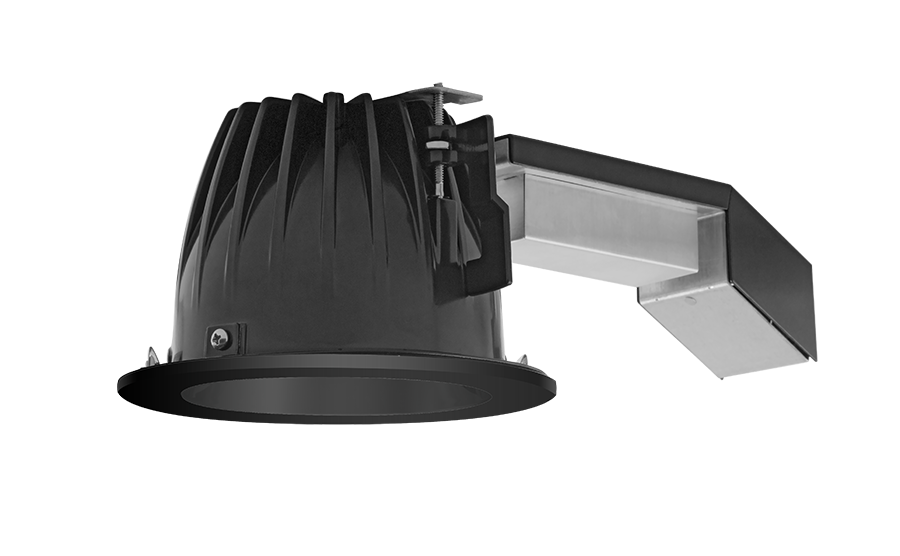

RDLED6R26D-WYNHC-B-B
RDLED6R26D-WYNHC-B-B large main
  • High performance, high efficiency alternative to incandescent lighting
  • Integrated ceiling clamps make installation fast and secure for ceiling up to 1 1/4" thick
  • Nanostructure lens eliminates "hot spots" providing smooth and efficient light
  • Low-profile design allows for installation in ceilings with limited space
  • Absolute White™ natural light output
 View Technical Specs
View Price & Availability
Performance
Watts 26W
Color Temp 3500K (Warm Neutral)
Lumens 1,595 lm
Efficacy 54.6 lm/W
Color Accuracy 90 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V 0.24A
208V 0.14A
240V 0.13A
277V 0.12A
Input Watts 29.2W
Dimensions
Link to Dimension Drawing

Weight: 2.0 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations covered ceiling
LED Characteristics
LED
Long-life, high-output LED module. Binned for natural white light to match incandescent and 3-step MacAdam Ellipse consistency.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Optical
Optics
Wall wash optics engineered for wide lateral distribution and smooth soft light from ceiling to floor
Electrical
Driver
ELV, 0-10V and TRIAC Dimming, Constant Current, Class 2, 120V-277V, 50/60Hz, Power Factor 98%, THD ≤ 20%
