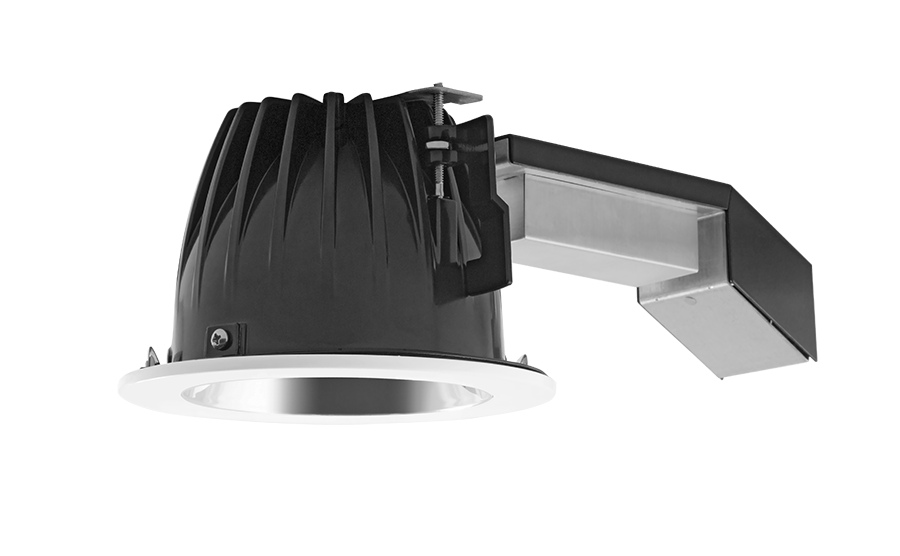

RDLED6R26D-WYYHC-S-W
RDLED6R26D-WYYHC-S-W
- High performance, high efficiency alternative to incandescent lighting
- Integrated ceiling clamps make installation fast and secure for ceiling up to 1 1/4" thick
- Nanostructure lens eliminates "hot spots" providing smooth and efficient light
- Low-profile design allows for installation in ceilings with limited space
- Absolute White™ natural light output
Performance
| Watts | 26W |
| Color Temp | 2700K (Residential Warm) |
| Lumens | 1,829 lm |
| Efficacy | 63.1 lm/W |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.24A |
| 208V | 0.14A |
| 240V | 0.13A |
| 277V | 0.12A |
| Input Watts | 29W |

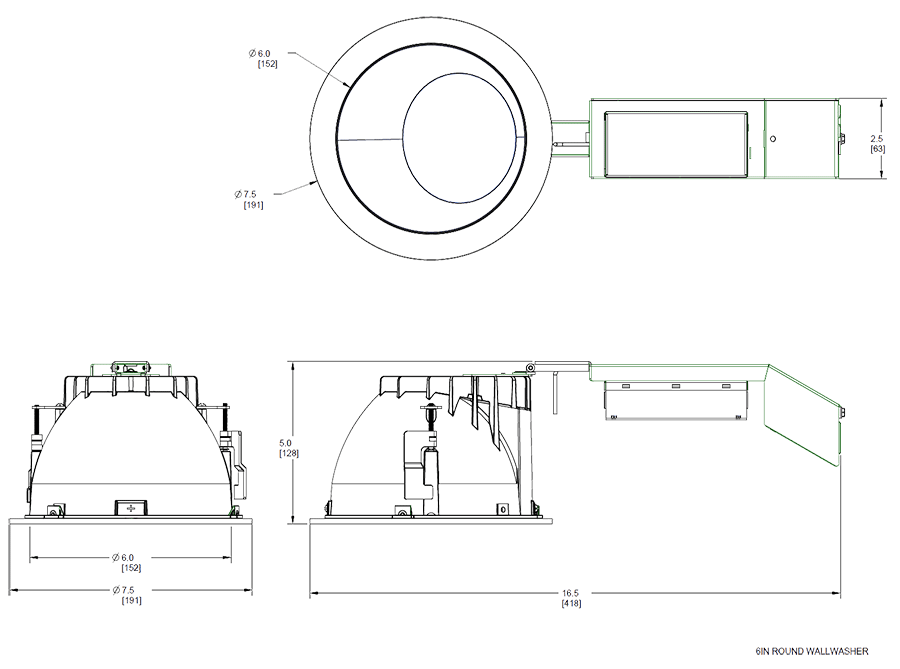

Dimensions
Weight: 2.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations covered ceiling
Energy Star Approved
ENERGY STAR® Version 2.0 Certified
LED Characteristics
LED
Long-life, high-output LED module. Binned for natural white light to match incandescent and 3-step MacAdam Ellipse consistency.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Electrical
Driver
ELV, 0-10V and TRIAC Dimming, Constant Current, Class 2, 120V-277V, 50/60Hz, Power Factor 98%, THD ≤ 20%
