SK9SYYW

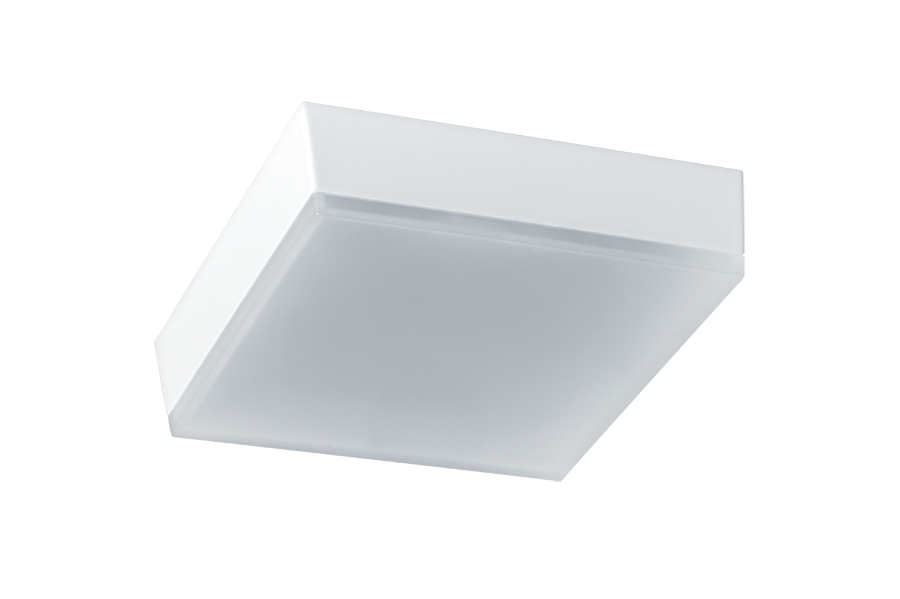

Contemporary low-profile design

Mounts flush to ceilings or walls

Replaces up to 100W incandescent

Vandal-resistant diffusion lens provides smooth light with no glare

100,000-Hour LED Lifespan, 5-year, no-compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	9W
Color Temp	2700K (Residential Warm)
Lumens	719 lm
Efficacy	76.5 lm/W
Color Accuracy	85 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.08A
208V
240V
277V
Input Watts	9.4W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 1.0 lbs

Technical Specifications

Compliance

UL Listed

Suitable for damp locations. For indoor use only.

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

LED Characteristics

LEDs

120V long-life LEDs with integrated driver technology and TRIAC and ELV dimming down to 5%. See compatibility guide here. Power Factor 98.9%, 3 kV surge protection

Color Consistency

3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

Wattage Equivalency

Equivalent to 60W Incandescent, replaces up to 100W Incandescent

Construction

Housing

Precision die-cast aluminum construction

Mounting

Simple slide-n-lock mounting bracket mounts to 3 1/2" and 4" round or octagon boxes with mounting screws 2 3/4" and 3 1/2" on center

Lens

Vandal resistant polycarbonate diffusion lens

Finish

Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Other

Buy American Act Compliance

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

Electrical

THD

13.8% at 120V
